5-6 meters Long range EPC GEN2 R2000 uhf handheld rfid reader 4G Portable Bluetooth Warehouse invent
5-6 meters Long range EPC GEN2 R2000 uhf handheld rfid reader 4G Portable Bluetooth Warehouse inventory Android 7.0 PDA...
5-6 meters Long range EPC GEN2 R2000 uhf handheld rfid reader 4G Portable Bluetooth Warehouse inventory Android 7.0 PDA
Standard Configuration.
5\'\' touch screen + Android 7.0 OS +2G RAM + 16G ROM +
Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA 3G/ GSM 2G + Camera + Google play + free English SDK
Optional functions.
1>RFID , UHF RFID reader with R2000 module, NFC / HF RFID reader, LF RFID 125khz, 134.2khz
2>1D 2D barcode scanner
3>Fingerprint reader
4> charging cradle
5> extra battery
Main Features.
1) Extremely Stable Performance
Android 7.0 OS with memory of 2GB RAM/16GB ROM can provide the highly standard experience
2) High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment
3) Rugged Ergonomic, Over-molding Design with Extremely Stable Hardware Display
Over-molding, ergonomic hardware design and 5.0 inch tough Gorilla Glass 3 9H can satisfy most of the tough environment from different fields
4) High Efficiency Operating Style
Mounted pistol grip with built-in battery of 8100mAh can ensure the high efficiency in outdoors environments
5) High Accuracy and Long Reading Distance
Optional ThingMagic/R2000 UHF Reader can guarantee the high reading accuracy and long reading distance
6) Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF, HF+LF
7) Quick-Charging
Quick-charging technology can provide the most efficient experience

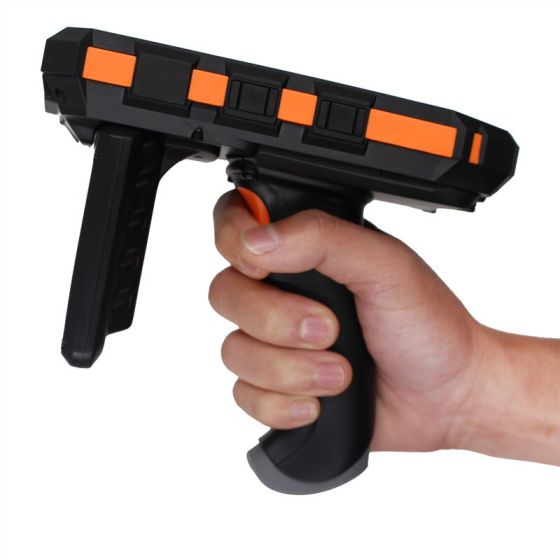

Product Show.
Techinical Specifications
SPECIFICATIONS |
||
PHYSICAL CHARACTERISTICS |
||
Dimension |
170mm(H)x85mm(W)x23mm(D)±2 mm |
|
Weight |
Net Weight :480g (including battery&wrist strap) |
|
Display |
5.0 inch Gorilla Glass 3 9H TFT-LCD(720x1280)touch screen with backlight |
|
Backlight |
LED backlight |
|
Keypads |
3 TP keys, 6 function keys, 4 side buttons |
|
Expansions |
2 PSAM, 1 SIM, 1 TF |
|
Battery |
Rechargeable li-ion polymer, 3.7V, 8100mAh |
|
PERFORMANCE CHARACTERSTICS |
||
CPU |
Quad A53 1.3GHz quad-core |
|
Operating System |
Android 7.0 |
|
Storage |
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) |
|
USER ENVIRONMENT |
||
Operating Temp. |
-20℃ to 50℃ |
|
Storage Temp. |
-20℃ to 70℃ |
|
Humidity |
5%RH to 95%RH(non-condensing) |
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
|
Sealing |
IP65, IEC compliance |
|
ESD |
±15kv air discharge, ±8kv direct discharge |
|
DEVELOPMENT ENVIRONMENT |
||
SDK |
Handheld-Wireless Software Development Kit |
|
Language |
Java |
|
Environment |
Android Studio or Eclipse |
|
DATA COMMUNICATION |
||
WWAN |
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7,17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
|
WLAN |
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n |
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
|
DATA CAPTUER |
||
BARCODE READER(OPTIONAL) |
||
1D barcode |
1D laser engine |
Symbol SE955 |
|
Symbologies |
All major 1D barcodes |
2D barcode |
2D CMOS Imager |
Honeywell N6603/Newland EM3396 |
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Japan Postal, Dutch Postal. etc. |
COLOR CAMERA |
||
Resolution |
8.0 megapixel |
|
Lens |
Auto-focus with LED flash |
|
RFID READER(OPTIONAL) |
||
RFID LF |
Frequency |
125KHz/134.2KHz(FDX-B/HDX) |
|
Protocol |
ISO 11784&11785 |
|
R/W Range |
2cm to 10 cm |
RFID HF/NFC |
Frequency |
13.56MHz |
|
Protocol |
ISO 14443A&15693 |
|
R/W Range |
2cm to 8cm |
RFID UHF |
Frequency |
865~868MHz or 920~925MHz |
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
|
Antenna Gain |
Circular antenna(3dBi) |
|
R/W Range |
Impinj R2000: 5m to 7(tags and environment dependent) ThingMagic M6E Micro: 3m to 4 m(tags and environment dependent) |
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock.
2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It\'s free for the buyer. If you want to get the products within 10 days, you can choose DHL.
3) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient\'s CNPJ or CPF number, otherwise, the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers .
4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev\'t received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems.
2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager , Whats app / Wechat(+86 18898735992) ,
email ( dianaszsg@outlook.com). You will get a reply within 1 natural day.
3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer\'s complaint, we have colleague to contact with you soon to solve the problem until you are satisfied.
If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy.
Enjoy your shipping.
';
Product Name | 5-6 meters Long range EPC GEN2 R2000 uhf handheld rfid reader 4G Portable Bluetooth Warehouse invent | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Description |
5-6 meters Long range EPC GEN2 R2000 uhf handheld rfid reader 4G Portable Bluetooth Warehouse inventory Android 7.0 PDA
Standard Configuration. 5\'\' touch screen + Android 7.0 OS +2G RAM + 16G ROM + Wifi + Bluetooth + GPS + FDD-TLE 4G / WCDMA 3G/ GSM 2G + Camera + Google play + free English SDK
Optional functions.
1>RFID , UHF RFID reader with R2000 module, NFC / HF RFID reader, LF RFID 125khz, 134.2khz 2>1D 2D barcode scanner 3>Fingerprint reader 4> charging cradle 5> extra battery
Main Features.
1) Extremely Stable Performance Android 7.0 OS with memory of 2GB RAM/16GB ROM can provide the highly standard experience
2) High Speed Data Communication Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment
3) Rugged Ergonomic, Over-molding Design with Extremely Stable Hardware Display Over-molding, ergonomic hardware design and 5.0 inch tough Gorilla Glass 3 9H can satisfy most of the tough environment from different fields
4) High Efficiency Operating Style Mounted pistol grip with built-in battery of 8100mAh can ensure the high efficiency in outdoors environments
5) High Accuracy and Long Reading Distance Optional ThingMagic/R2000 UHF Reader can guarantee the high reading accuracy and long reading distance
6) Highly Customized Structure ‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF, HF+LF
7) Quick-Charging Quick-charging technology can provide the most efficient experience
Product Show.
Techinical Specifications
1) Once the order is confirmed, we will arrange shipment within 1- 5 days. To guarantee fast delivery, our company have products with normal specifications in stock. 2) Because all items with battery inside, to make sure you receive the goods successfully. normally we use Aliexpress standard shipping. This method is available for all countries, including Russia, Brazil. The delivery time is about 20 - 40 days. If you have enough time for the purchasing process, you can choose this way. It\'s free for the buyer. If you want to get the products within 10 days, you can choose DHL. 3) Kindly write correct and detailed delivery address for your order. For Brazil clients, please provide receipient\'s CNPJ or CPF number, otherwise, the parcel will be destoryed or returned back. Thus, please confirm that you have CNPJ or CPF number before order for Brazil buyers . 4) Service Transmit Time is provided by the carrier and excludes weekends and holidays. Transmit time may vary, particularly during the holiday season. If you havev\'t received the goods within 30 days after payment, please contact us. Of course, we will update you shipping status every weeks.
1) We provide 12 months warranty for our producs, since the buyer got the goods. The buyer is free to contact us anytime when there is doubts to use the device, or meet any technical problems. 2) The buyer is able to contact us by these ways. Send message via Aliexpress or Trademanager , Whats app / Wechat(+86 18898735992) , email ( dianaszsg@outlook.com). You will get a reply within 1 natural day. 3) If there is quality problems, we will replace with new product , after the buyer provide video and the clients need to ship the device back . After we got buyer\'s complaint, we have colleague to contact with you soon to solve the problem until you are satisfied. If you are satisfied with our products and service, welcome to re-order and give us a 5-Star for the transaction. If you are not satisfied, welcome to contact us and complain to us, we will solve your problem soon, until you are happy. Enjoy your shipping. '; |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKU | 33040015780 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 2.000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
selling_potential | 4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
With Built-in Battery | Yes | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Condition | New |
