5MP ptz camera video surveillance 10X optical zoom 2MP IP Camera outdoor mini ip camera high/mid

SKU

32973118021

Special Price US$67.20 Regular Price US$74.67

In stock

Overview

5MP ptz camera video surveillance 10X optical zoom 2MP IP Camera outdoor mini ip camera high/mid speed dome camera POE optional...

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

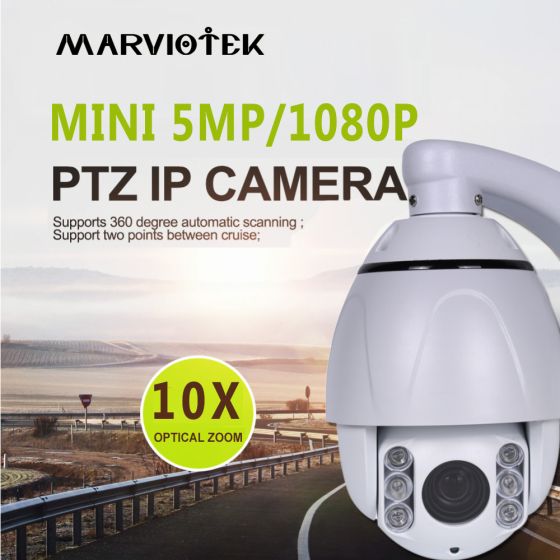

Product overview ( 4.5" mini PTZ Dome Camera)

Specifications: 4.5" Pan-Tilt-Zoom IP Camera, Pan Range: 0-355 °, Tilt Range 0-90°. Remote Pan/Tilt Functionality with 10x Optical Zoom, IR night vision 60meters. Premium HD 5MP/4MP/1080p Video Resolution, 2.8-12mm 10X Motorized Zoom Lens. H.265 Video Compression. Support Onvif 2.4 protocol ,work with Hikvision, Dahua, XM NVR . One Key Connection With HIKVISION NVR/CMS .TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP. Perfect ceiling install for both indoor and outdoor places (come with a metal base plate). Built-in Surge and Lightning Protection Devices, Working temperature: -20℃~+60℃ 6 presets;1 patrol;1 pattern;support AB scan; IP66 waterproof , anti-explosion glass and Aluminum cover that can be used in harsh environment.
CAMERA	Sensor Image	1/3" 2 Megapixel/1/2.7" 5.0 Megapixel CMOS Sensor
	EFFECTIVE PIXEL	1920x1080,2304x1296,2592x1520,2592x1944
	SCANNING SYSTEM	Progressive Scan
	SYNCHRONIZATION	Internal
	ELECTRONIC SHUTTER	1/25s~1/50,000s , 1/30s~1/60,000s
	TV SYSTEM	PAL/NTSC
	Video Frame Rate	25fps/30fps at1080P
	MIN. ILLUMINATION	0.01Lux atF1.2(AGC ON), 0Lux IR on
	VIDEO OUTPUT	RJ45
	IR LED	IR LED: 42μ x 6pcs, IR Range:60M
PAN&TILT	PAN RANGE	0°~350°, Horizontal
	PAN SPEED	120°/s
	TILT RANGE	0°~90°, Vertifcal
	TILT SPEED	45°/s
	QUANTITIES OF PRESETS	255
	PTZ PROTOCOL	PELCO-D/PELCO-P
	BAUD RATE	2400/4800/9600/19200/38400
	SCANNING MODE	Auto Pan/Pattern/Auto Tour
LENS	PIXEL	2MP, 5MP
	IMAGE FORMAT	1/3" ,1/2.7"
	FOCAL LENGTH	2.8-12MM
	APERTURE	F1.4
	MOUNT	M12
	FIELD ANGLE(D×H×V)	1/2.7": 136°×108.8°×81.6°~ 49.5°×39.6°×29.7°
	IRIS	Fixed
	ZOOM	Motorized
	FOCUS	Auto Pan/Pattern/Auto Tour
FEATURE	SENSE-UP	OFF/ON
	DWDR	OFF/ON
	DEFOG	OFF/ON
	BACKLIGHT COMPENSATION	OFF/BLC/HSBLC
	WHITE BALANCE	ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
	DAY&NIGHT	EXT/AUTO/COLOR/B/W
	NOISE REDUCTION	2D NR/3D NR
	CAMERA TITLE	OFF/ON
	MOTION DETECTION	OFF/ON
	PRIVACY MASK	OFF/ON
	OSD LANGUAGE	EN/CN/
	INGRESS PROTECTION	IP66
GENERAL	POWER SUPPLY	DC12V±10% POE Optional
	POWER CONSUMPTION	Max 5W
	WORKING ENVIRONMENT	-10°C~+50°C / Less than 95%RH (no condensation).
	DIMENSION	￠105mm x 69mm(H).
	WEIGHT	1.7Kg.

Product packaging

1 * Mini PTZ Dome Camera

3 * Screws

bracket and power supply included.

(Note : PoE is optional )

FAQ:

Q: Does it support web browser ?

A: Yes

Q: Does this camera support ONVIF ?

A: Yes , it support ONVIF, it can work with DVR/NVR

Q: Does this camera can be used outdoor ?

A: Yes , it is waterproof camera, can be applied in harsh envirnment like rainy days and snow days

Q: Does this camera support two way audio ?

A: No, it does not support audio input and output
