5MP PTZ IP Dome Camera Outdoor 4x Zoom Video Surveillance CCTV Camera PTZ IR Night Vision P2P POE
5MP PTZ IP Dome Camera Outdoor 4x Zoom Video Surveillance CCTV Camera PTZ IR Night Vision P2P POE optional IP Camera Waterproof...
        |
|
Specifications: 2.5" Pan-Tilt-Zoom IP Camera, Pan Range: 0-355 °, Tilt Range 0-90°.

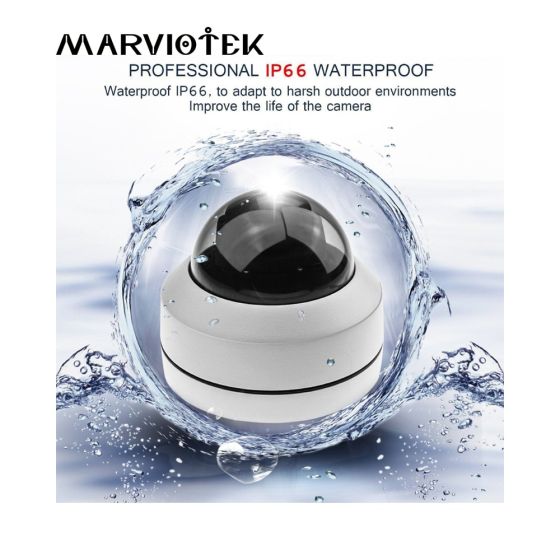

Remote Pan/Tilt Functionality with 4x Optical Zoom, IR night vision 20meters. Premium HD 5MP/4MP/1080p Video Resolution, 2.8-12mm 4X Motorized Zoom Lens. H.264 Video Compression. Perfect ceiling install for both indoor and outdoor places (come with a metal base plate). Built-in Surge and Lightning Protection Devices, Working temperature: -20℃~+60℃ 6 presets;1 patrol;1 pattern;support AB scan; IP66 waterproof , anti-explosion glass and Aluminum cover that can be used in harsh environment. |
||
|
CAMERA
|
Sensor Image
|
1/2.7" 5.0 Megapixel CMOS Sensor
|
|
EFFECTIVE PIXEL
|
2304x1296,2592x1520,2592x1944
|
|
|
SCANNING SYSTEM
|
Progressive Scan
|
|
|
SYNCHRONIZATION
|
Internal
|
|
|
ELECTRONIC SHUTTER
|
1/25s~1/50,000s , 1/30s~1/60,000s
|
|
|
TV SYSTEM
|
PAL/NTSC
|
|
|
Video Frame Rate
|
25fps/30fps at1080P
|
|
|
MIN. ILLUMINATION
|
0.01Lux atF1.2(AGC ON), 0Lux IR on
|
|
|
VIDEO OUTPUT
|
RJ45
|
|
|
IR LED
|
IR LED: 42μ x 2pcs, IR Range: 20M
|
|
|
PAN&TILT
|
PAN RANGE
|
0°~350°, Horizontal
|
|
PAN SPEED
|
120°/s
|
|
|
TILT RANGE
|
0°~90°, Vertifcal
|
|
|
TILT SPEED
|
45°/s
|
|
|
QUANTITIES OF PRESETS
|
255
|
|
|
PTZ PROTOCOL
|
PELCO-D/PELCO-P
|
|
|
BAUD RATE
|
2400/4800/9600/19200/38400
|
|
|
SCANNING MODE
|
Auto Pan/Pattern/Auto Tour
|
|
|
LENS
|
PIXEL
|
5MP
|
|
IMAGE FORMAT
|
1/2.7"
|
|
|
FOCAL LENGTH
|
2.8-12MM
|
|
|
APERTURE
|
F1.4
|
|
|
MOUNT
|
M12
|
|
|
FIELD ANGLE(D×H×V)
|
1/2.7": 136°×108.8°×81.6°~ 49.5°×39.6°×29.7°
|
|
|
IRIS
|
Fixed
|
|
|
ZOOM
|
Motorized
|
|
|
FOCUS
|
Auto Pan/Pattern/Auto Tour
|
|
|
FEATURE
|
SENSE-UP
|
OFF/ON
|
|
DWDR
|
OFF/ON
|
|
|
DEFOG
|
OFF/ON
|
|
|
BACKLIGHT COMPENSATION
|
OFF/BLC/HSBLC
|
|
|
WHITE BALANCE
|
ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
|
|
|
DAY&NIGHT
|
EXT/AUTO/COLOR/B/W
|
|
|
NOISE REDUCTION
|
2D NR/3D NR
|
|
|
CAMERA TITLE
|
OFF/ON
|
|
|
MOTION DETECTION
|
OFF/ON
|
|
|
PRIVACY MASK
|
OFF/ON
|
|
|
OSD LANGUAGE
|
EN/CN/
|
|
|
INGRESS PROTECTION
|
IP66
|
|
|
GENERAL
|
POWER SUPPLY
|
DC12V±10% POE Optional
|
|
POWER CONSUMPTION
|
Max 5W
|
|
|
WORKING ENVIRONMENT
|
-10°C~+50°C / Less than 95%RH (no condensation).
|
|
|
DIMENSION
|
￠105mm x 69mm(H).
|
|
|
WEIGHT
|
450g.
|
|
Product packaging
FAQ:
Q: Does it support web browser ?
A: Yes
Q: Does this camera support ONVIF ?
A: Yes , it support ONVIF, it can work with DVR/NVR
Q: Does this camera can be used outdoor ?
A: Yes , it is waterproof camera, can be applied in harsh envirnment like rainy days and snow days
Q: Does this camera support two way audio ?
A: No, it does not support audio input and output
| Product Name | 5MP PTZ IP Dome Camera Outdoor 4x Zoom Video Surveillance CCTV Camera PTZ IR Night Vision P2P POE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description |
Product packaging 1 * Mini PTZ Dome Camera
3 * Screws
1 * Metal Base Plate
(Note : PoE is optional )
FAQ: Q: Does it support web browser ? A: Yes Q: Does this camera support ONVIF ? A: Yes , it support ONVIF, it can work with DVR/NVR Q: Does this camera can be used outdoor ? A: Yes , it is waterproof camera, can be applied in harsh envirnment like rainy days and snow days Q: Does this camera support two way audio ? A: No, it does not support audio input and output |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | 32906666202 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
