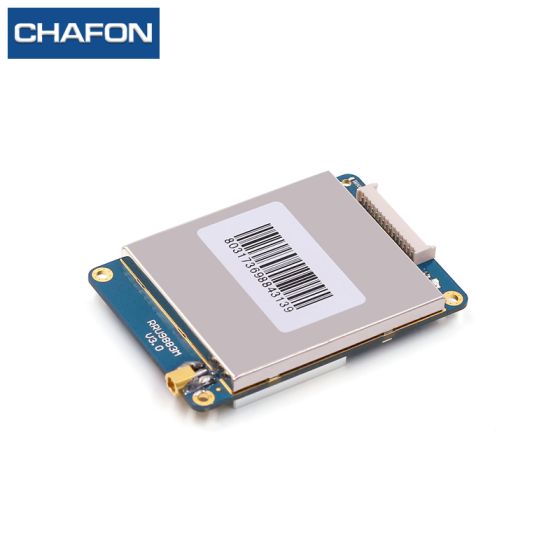

865-928Mhz R2000 long range uhf rfid module one antenna port with RS232 interface free SDK for atten
865-928Mhz R2000 long range uhf rfid module one antenna port with RS232 interface free SDK for attendance system...
860~868MHz RFID UHF 9dBi circular polarization Antenna with N-female connector for Access control
|
Performance Specifications |
||
|
Model number |
CF-RA9003 |
|
|
Frequency |
860~868MHz (EU standard)/902~928MHz (US standard) |
|
|
Gain |
9dbi |
|
|
Polarization |
Circular polarization |
|
|
Half-power beam width(°) |
Hor:75° Ver:75° |
|
|
V.S.W.R |
≤1.3 |
|
|
Front-to-back ratio(dB) |
≥25 |
|
|
Maximum input power(W) |
100W |
|
|
Impedance |
50 Ω |
|
|
Lightning protection way |
DC Ground |
|
|
Mechanical specification |
||
|
Cable Connector |
TNC-male(default) |
|
|
Antenna Connector |
N-female |
|
|
Connector position |
Bottom |
|
|
Size(mm) |
305*305*25mm |
|
|
Antenna weight(kg) |
1.45kg |
|
|
Packing weight(kg) |
2.2kg |
|
|
Wind loading area(㎡) |
≤0.2 |
|
|
Rated wind velocity(m/s) |
60 |
|
|
Radome material |
ABS |
|
|
Reflector material |
Aluminum |
|
|
Antenna color |
White |
|
|
Operating temperature(℃) |
-40～+80 |
|
|
Mounting hardware（mm） |
Ф30～70 |
|
| Product Name | 865-928Mhz R2000 long range uhf rfid module one antenna port with RS232 interface free SDK for atten | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | 860~868MHz RFID UHF 9dBi circular polarization Antenna with N-female connector for Access control
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | CFRA9003 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Condition | New | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
