868MHz antenna omni fiberglass antenna 10dBi outdoor roof glide monitor repeater UHF antenna RFID Lo
SKU
32694420721
Overview
868MHz antenna omni fiberglass antenna 10dBi outdoor roof glide monitor repeater UHF antenna RFID LoRaWAN monitor antenna...
Electrical Specifications
- Frequency range（MHz）：806-960
- Bandwidth（MHz）：70
- Gain（dBi）：10
- Half-power beam width（°）：H:360 V:20
- VSWR：≤1.5
- Input Impedance（Ω）：50
- Polarization：Vertical
- Maximum input power（W）：50
- Lightning protection： DC Ground
- Input connector type： N Female
Mechanical Specifications
- Dimensions (mm)：Φ20*900
- Antenna weight（kg）：0.75
- Operating temperature（°c）：-40～60
- Rated Wind Velocity（m/s）：60
- Radome color：Gray

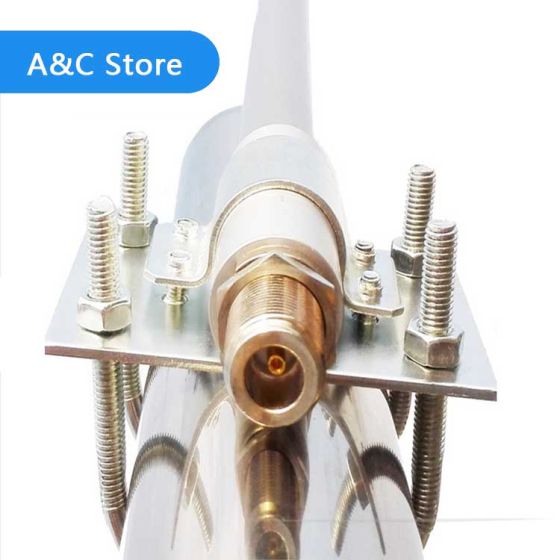

- Mounting way：Pole-holding
- Mounting hardware（mm）：￠40-￠60
| Product Name | 868MHz antenna omni fiberglass antenna 10dBi outdoor roof glide monitor repeater UHF antenna RFID Lo |
|---|---|
| Description | Electrical Specifications
Mechanical Specifications
|
| SKU | 32694420721 |
| Weight | 1.000000 |
| selling_potential | 3 |
| With Built-in Battery | No |
| Condition | New |
