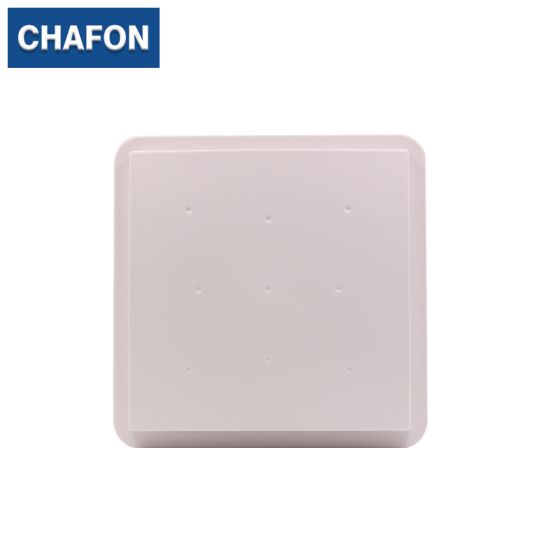

902-928 MHz circular 7dBi gain rfid uhf reader antenna used for parking lots management

SKU
CFANT7
Overview

902-928 MHz circular 7dBi gain rfid uhf reader antenna used for parking lots management...

902-928 MHz circular 7dBi gain rfid uhf reader antenna used for parking lots management



Product Description
Performance Specifications
Model number
CF-RA7001
Frequency
  860~868MHz (EU standard)/902~928MHz (US standard)
Gain
7dbi
Polarization
HCP
Half-power beam width(°)
Hor: 65  Vert:65
V.S.W.R
≤1.4
Front-to-back ratio(dB)
≥20
Maximum input power(W)
100W
Impedance
50 Ω
Lightning protection way
DC Ground
Mechanical specification
Cable Connector
TNC-male(default)

Antenna Connector
N-female
Connector position
Bottom
Size(mm)
260*260*35mm
Antenna weight(kg)
1.2
Packing weight(kg)
1.35
Wind loading area(㎡)
≤0.2
Rated wind velocity(m/s)
60
Radome material
ABS
Reflector material
Aluminum
Antenna color
White
Operating temperature(℃)
-40~+70
Mounting hardware(mm)
Ф40~50
More Information
SKU CFANT7
Weight 3.000000
selling_potential 3
With Built-in Battery No
Condition New
