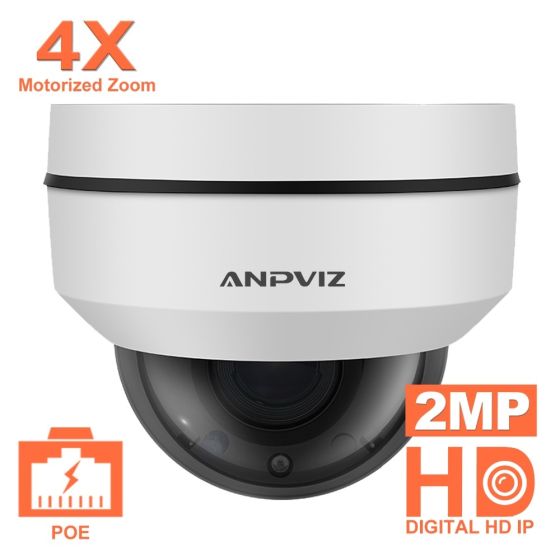

Anpviz 1080P 960P Wireless PTZ IP Camera CCTV Onvif 2.5 Inch Outdoor WiFi 2.8-12mm Motorized 4X Zoom
Anpviz 1080P 960P Wireless PTZ IP Camera CCTV Onvif 2.5 Inch Outdoor WiFi 2.8-12mm Motorized 4X Zoom Surveillance IP Cameras ...
- Hikvision Private Protocol, Works with Hikvision IVMS4200.
- Onvif compliant. Work with Hikvision, Dahua, Swann, Lorex, Pelco, Panasonic, Axis, Etc Third Party NVR. If you do not know to let it work. We will have series of video to teach you.
- Youtube Channel: AnpvizSecurity to teach you how to use it, how to work with it. Easy familiar with this item
- Full after-sales service to let you have a excellent purchasing experience. More than 10 years Professional Knowledges in Security Industry.
- Every item are oldaged at least 72 hours and 100% Full inspection in the assebling line in the factory.
- Buy with confidence!
- This camera doesn`t have POE Function!
Kindly Notice:
Package① is 1080P 4X Zoom PTZ Camera without POE Function, comes with NO power adapter.
Package② is 960P 4X Zoom PTZ Camera without POE Function, also comes with NO power adapter.
We also have 2.0MP High resolution Wired 5X PTZ Dome camera
Please click the below picture
Incredible Dual-Stream Design
By introducing the remarkable dual-stream design, we separate local recording from remote viewing. The main-stream is for local video recording while the su-stream for remote live viewing, which makes for smoother vide both way
Specification
|
Camera |
Operating system |
Embedded Linux OS |
|
Processor |
HI3516C + SONY 323 |
|
|
Sensor |
1/2.9" SONY 323 CMOS Low Lux digital image sensor |
|
|
Lens interface type |
M12 |
|
|
Lens |
2.8-12mm |
|
|
View angle |
62.2° |
|
|
Min.illumination |
0.1 Lux / 0 Lux（IR on） |
|
|
Day&Night mode |
Auto IR-CUT |
|
|
Night vision distance |
IR irradiation distance 30m |
|
|
Video |
Video compression standard |
H.264 |
|
Video encoding type |
H.264 Main Profile/H.264 Baseline |
|
|
Video streaming |
Dual streaming |
|
|
Video resolution |
First stream: 1080P(1920x1080),720P(1280x720),Q720P(640x352) Second stream: Q720P(640x352) ,QQ720P(320x176) JPEG stream（Monitoring for mobile phones）: Q720P(640x352),QQ720P(320x176) |
|
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
25fps(PAL 50HZ). 30fps(NTSC 60HZ) |
|
|
Image settings |
Brightness, contrast,saturation,exposure,Hue |
|
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
|
|
Audio |
Audio compression standard |
None |
|
Audio code rate |
None |
|
|
Function |
Motion detecting |
can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox; alarm upload pictures to the FTP server; alarm image and record write Micro SD card |
|
|
Privacy mask |
Support 4 rectangle areas |
|
|
OSD |
Support camera name. date and time information superimposed |
|
|
User management |
supports user and rights management |
|
|
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
|
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP. IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
|
|
Connection protocol |
Support ONVIF 2.0(backward compatible) |
|
|
Interface |
Power interface |
1 5.5mm power interface |
|
Ethernet |
1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
General specification |
Power supply |
DC 12V 1A, PoE ( 802.3af ) |
|
power |
Day:3W. Night:8W |
|
|
Operating temperature |
-20 to +60 degree |
|
|
Operating humidity |
10% to 95% |
|
|
Vandalproof level |
IP66 |
|
|
Material |
Aluminum |
|
|
Installation |
ceil mounting |
|
|
Size(W×D×H)(mm) |
110×110×100 |
|
|
Weight(kg) |
0.6kg |
|
|
Accessories |
1*1.2M Power supply. 1bag*Screws. 1*antenna |
|
|
Package Size(W×D×H)(mm) |
120*130*120mm |
|
|
Package Weight(kg) |
0.55kg |
| Description |
Qualified CE, FCC, ROHS High Quality 2.5 Inch 2.0MP 4X PTZ POE IP Dome Camera, Hikvision Private Protocol
18 months Warranty Guarantee! 3 Business working days shipped out by DHL, TNT, UPS, Fedex, AU Express,SPSR Etc.
Besides above, Reasons you have to choose item from us:
Kindly Notice: Package① is 1080P 4X Zoom PTZ Camera without POE Function, comes with NO power adapter. Package② is 960P 4X Zoom PTZ Camera without POE Function, also comes with NO power adapter.
We also have 2.0MP High resolution Wired 5X PTZ Dome camera Please click the below picture |
|---|
|
Camera |
Operating system |
Embedded Linux OS |
|
Processor |
HI3516C + SONY 323 |
|
|
Sensor |
1/2.9" SONY 323 CMOS Low Lux digital image sensor |
|
|
Lens interface type |
M12 |
|
|
Lens |
2.8-12mm |
|
|
View angle |
62.2° |
|
|
Min.illumination |
0.1 Lux / 0 Lux（IR on） |
|
|
Day&Night mode |
Auto IR-CUT |
|
|
Night vision distance |
IR irradiation distance 30m |
|
|
Video |
Video compression standard |
H.264 |
|
Video encoding type |
H.264 Main Profile/H.264 Baseline |
|
|
Video streaming |
Dual streaming |
|
|
Video resolution |
First stream: 1080P(1920x1080),720P(1280x720),Q720P(640x352) Second stream: Q720P(640x352) ,QQ720P(320x176) JPEG stream（Monitoring for mobile phones）: Q720P(640x352),QQ720P(320x176) |
|
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
25fps(PAL 50HZ). 30fps(NTSC 60HZ) |
|
|
Image settings |
Brightness, contrast,saturation,exposure,Hue |
|
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
|
|
Audio |
Audio compression standard |
None |
|
Audio code rate |
None |
|
|
Function |
Motion detecting |
can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox; alarm upload pictures to the FTP server; alarm image and record write Micro SD card |
|
|
Privacy mask |
Support 4 rectangle areas |
|
|
OSD |
Support camera name. date and time information superimposed |
|
|
User management |
supports user and rights management |
|
|
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
|
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP. IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
|
|
Connection protocol |
Support ONVIF 2.0(backward compatible) |
|
|
Interface |
Power interface |
1 5.5mm power interface |
|
Ethernet |
1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
General specification |
Power supply |
DC 12V 1A, PoE ( 802.3af ) |
|
power |
Day:3W. Night:8W |
|
|
Operating temperature |
-20 to +60 degree |
|
|
Operating humidity |
10% to 95% |
|
|
Vandalproof level |
IP66 |
|
|
Material |
Aluminum |
|
|
Installation |
ceil mounting |
|
|
Size(W×D×H)(mm) |
110×110×100 |
|
|
Weight(kg) |
0.6kg |
|
|
Accessories |
1*1.2M Power supply. 1bag*Screws. 1*antenna |
|
|
Package Size(W×D×H)(mm) |
120*130*120mm |
|
|
Package Weight(kg) |
0.55kg |
