Audio interface RFID HF 14443A NFC mini reader writer 0 5M for Android mobile phone +SDK

Details

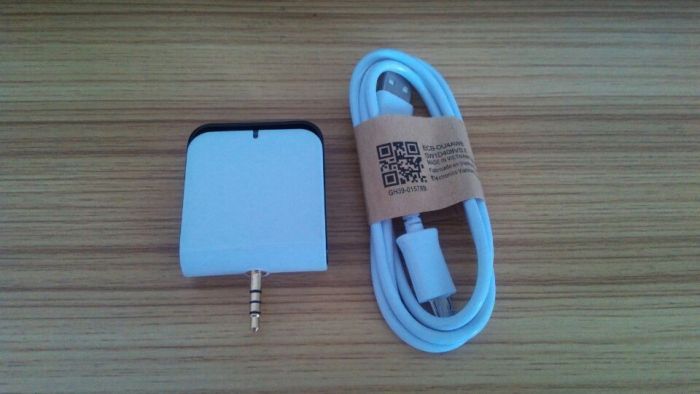

This is a portable small card reader, but through the 3.5 mm headphone jack with android, etc
System platform can be used,Change the original HF 14443A tags must be dedicated to read and write device, used in miniature HF 14443A reading and writing, low cost, portable promote RFID application engineering really popular.

Realize the uhf, speaking, reading and writing device miniaturization, low cost, portable, suitable for the application of a small amount of labels
Operation.

1), support for ultra-high frequency (HF 14443A ) tags
2), intelligent system and so on for Android platform
3), the communication interface: 3.5 mm audio interface (ordinary headphone jack)
4), read distance: 0.5 m (depending on the size label)
5), working hours, continuous work 4 hours
6), material: ABS + PC engineering plastic
7), size: 48 mm * 42 mm * 15 mm
8), weight: 35 g
9), built-in battery capacity: 550 ma
10), working environment temperature: - 10 ℃ ~ 60 ℃

Equipment inventory assets
Intelligent tour appliance
Logistics electronic tag query
Intelligent electronic patrolling
The individual RFID terminal device

Applications are not limited to this, the welcome will need to inform customer service!

Technical parameters:

The Model	UHF HF 14443A Reader
Frequency	13.56 MHZ
The Tag supported	HF ISO 14443A
Interface	The 3.5 mm audio interface
Temperature range	- 20 ° C ~ + 60 ° C
Operating short	Up to 0.5 m, depending on the tag
The working hours	Continuous work for 4 hours (with built-in Lithium battery)
Dimension	48 * 42 * 15 mm
Weight	60 g
Platform	The Android
'capacity	550 mAH

Specification:

1), support for ultra-high frequency (HF 14443A )
2), intelligent system and so on for android platform
3), the communication interface: 3.5 mm audio interface (ordinary headphone jack)
4), read distance: 50 cm (depending on the tag performance)
5), working hours, continuous work 3 hours, can inquire 30000 times
6), material: ABS + PC engineering plastic
7), size: 42 mm * 48 mm * 15 mm
8), weight: 35 g
9), battery capacity: 550 ma
10), charging ways: USB 5 v / 0.5 A, charge for 2 hours
11), the working environment temperature: - 20 ℃ ~ 60 ℃
12), the indicator light condition:
(1), the normal work: green light is long
(2), read the labels of EPC: green light flashing
(3), read the label the USER data: green light flashing
(4), equipment anomalies: light not on
(5), the electric quantity is low: green light have been slow to flicker (low electric alarm, please charge as soon as possible)
6, battery low: green light has been rapid flashing (low electricity stop using, cannot read card)
All landowners, rechargeable electric: red light
Today, charging complete: red light off
