CCTV Pan-tilt Unit with Bracket Electrical Rotator Outdoor For Security Camera 255 degree Rotation Wall Mount

SKU
YZ100
Special Price US$8.06 Regular Price US$8.96
In stock
Overview

CCTV Bracket Pan Electrical Rotating Holder For Security Camera 255 degree Rotation Wall Mounting CCTV Accessories New Style...

aeProduct.getSubject()



Main feature:



  • Horizontal rotate for 255°, left & right limit positions can be set at will
  • Built-in smart decoder board, user can set preset positions, tour scan routes, home place
  • Horizontal rotation speed is 6º / sec, 12º / sec, 20º / sec, 3 levels optional
  • DC 12V power supply + RS 485 control, can connect 485 wires and DC 12V output of HD IP camera fastly,  no need change camera\'s wiring system, can easily upgrade it with rotating function
  • Use high quality motor, works stable and long lifetime
  • Only 170mm length, easy for install, compatible with all HD IP camera and analog camera in the market
  • Water-proof and dust-proof for all day use, casing is made of high temperature resistance and high quality industrial level plastic materials (ABS)
  • Zero position detection switch: Photoelectric zero switch, accurate zero detection. Compared to mechanical switch, photoelectric zero switch without any abrasion, ensure zero position detection more precise and preset with high precision



Application advantage:

  • Can perfectly works with our megapixel HD IP camera, compatible with other brand IPC, only need the IPC with RS-485 connector, and their software have RS-485 control protocol, directly connect the bracket to the IPC RS-485 wires, no need wiring again, can be controlled by NVR / clients software / smart phone\'s clients software.
  • Can simply change a fixed camera can be moved by RS-485 control, achieve wider visible angle, low cost and simple work, with 200 address codes can be set.
  • Can decrease camera quantity in project, then decrease project cost, let integrator have more advantages than their competitor.
  • Specially suitable for indoor, change camera\'s visible range to be wide and improve definition.
  • For example: When you want wide angel indoor, you often choose a 3.6mm lens camera, but the definition can not be very good, if you choose a 6mm lens camera with this PT bracket, definition is better, although the 6mm lens can not reach the angle of 3.6mm lens, but the PT bracket make the biggest monitoring range to be 255 degrees.
  • Competitive price, only designed by us, unique but easy to use, help your installation to be easier, gain more praises from users.
  • Standard configuration with DC 12V power input connector and output connector, only need one power supply can works with the bracket and camera, without power supply, waterproof for outdoor-use



aeProduct.getSubject()



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

How to install?



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

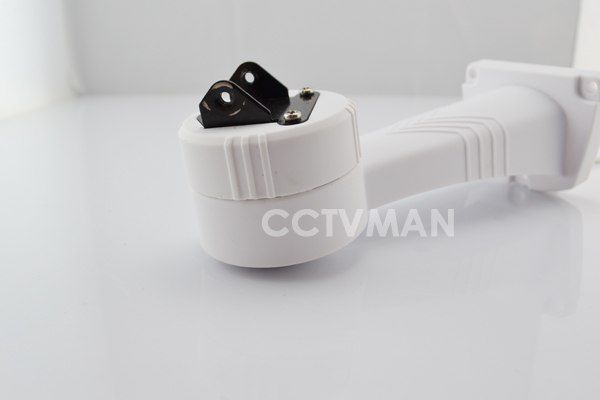

How it look like?

aeProduct.getSubject()



Items

Specification

Horizontal rotating range

255 °

Horizontal rotating speed

6 °/ sec, 12 °/ sec, 20 ° / sec

Tilt rotating range

NO

Tilt rotating Speed

NO

Limit position

 left & right limit positions can be set at will

Limit position automatically scanning

Yes, 3 levels speed optional

Preset

8 preset positions

Preset tour routes

1 tour scan, 3 levels speed optional

Watch function

Yes

Manual place function

Yes

Control mode

RS 485

Interface

DC power + RS 485

Power supply

DC 12V ± 5 % / 100mA

Power consumption

0.9 W

Working environment

-25 -- 55 degree,humidity less than 95%

(no condensation)


More Information
Description

aeProduct.getSubject()



Main feature:



  • Horizontal rotate for 255°, left & right limit positions can be set at will
  • Built-in smart decoder board, user can set preset positions, tour scan routes, home place
  • Horizontal rotation speed is 6º / sec, 12º / sec, 20º / sec, 3 levels optional
  • DC 12V power supply + RS 485 control, can connect 485 wires and DC 12V output of HD IP camera fastly,  no need change camera\'s wiring system, can easily upgrade it with rotating function
  • Use high quality motor, works stable and long lifetime
  • Only 170mm length, easy for install, compatible with all HD IP camera and analog camera in the market
  • Water-proof and dust-proof for all day use, casing is made of high temperature resistance and high quality industrial level plastic materials (ABS)
  • Zero position detection switch: Photoelectric zero switch, accurate zero detection. Compared to mechanical switch, photoelectric zero switch without any abrasion, ensure zero position detection more precise and preset with high precision



Application advantage:

  • Can perfectly works with our megapixel HD IP camera, compatible with other brand IPC, only need the IPC with RS-485 connector, and their software have RS-485 control protocol, directly connect the bracket to the IPC RS-485 wires, no need wiring again, can be controlled by NVR / clients software / smart phone\'s clients software.
  • Can simply change a fixed camera can be moved by RS-485 control, achieve wider visible angle, low cost and simple work, with 200 address codes can be set.
  • Can decrease camera quantity in project, then decrease project cost, let integrator have more advantages than their competitor.
  • Specially suitable for indoor, change camera\'s visible range to be wide and improve definition.
  • For example: When you want wide angel indoor, you often choose a 3.6mm lens camera, but the definition can not be very good, if you choose a 6mm lens camera with this PT bracket, definition is better, although the 6mm lens can not reach the angle of 3.6mm lens, but the PT bracket make the biggest monitoring range to be 255 degrees.
  • Competitive price, only designed by us, unique but easy to use, help your installation to be easier, gain more praises from users.
  • Standard configuration with DC 12V power input connector and output connector, only need one power supply can works with the bracket and camera, without power supply, waterproof for outdoor-use



aeProduct.getSubject()



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

How to install?



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

How it look like?

aeProduct.getSubject()



Items

Specification

Horizontal rotating range

255 °

Horizontal rotating speed

6 °/ sec, 12 °/ sec, 20 ° / sec

Tilt rotating range

NO

Tilt rotating Speed

NO

Limit position

 left & right limit positions can be set at will

Limit position automatically scanning

Yes, 3 levels speed optional

Preset

8 preset positions

Preset tour routes

1 tour scan, 3 levels speed optional

Watch function

Yes

Manual place function

Yes

Control mode

RS 485

Interface

DC power + RS 485

Power supply

DC 12V ± 5 % / 100mA

Power consumption

0.9 W

Working environment

-25 -- 55 degree,humidity less than 95%

(no condensation)
