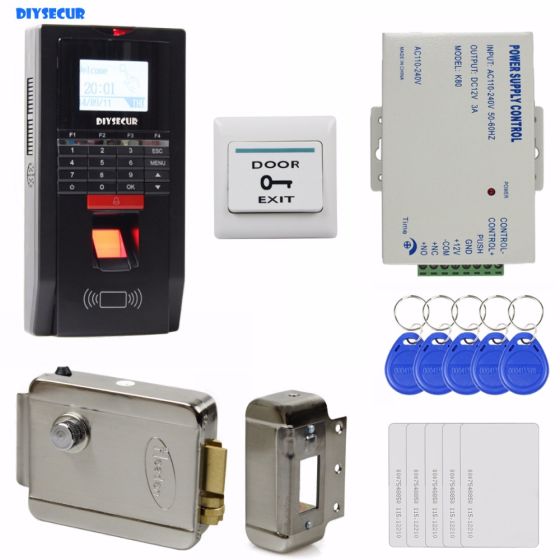

DIYSECUR Full Complete LCD Fingerprint And Id Card Reader Password Keypad Door Access Control System + Electric Lock

A Complete Kit Fingerprint and ID Card Reader Access Control System

Access Controller + Power Supply + Electrik Lock +10 ID Card/Keyfob + Exit Button

TCP/IP, USB, High-performance

Why Use Access Control ?

With this item can set up the company, or authority of office building image standardization management, improve the management level, at the same time, standardized internal management system.

If induction card lost can immediately report the loss in the system, so that even if someone else picked up the induction card can\'t through the entrance guard system, is more convenient than ordinary mechanical lock, more safety.

cvs_ac_iso

Fingerprint Acess Control device:

This is a professional Fingerprint Access Controller, it adopts the latest and accurate industrialized algorithm. It has refined fashion, integrates Poweerful management software,Very competitive price with good performance, designed specially in the purpose of popularizing the fingerprint products. It could store 2,000 fingerprint templates and 30,000 transaction records. It will bring you much boon because of its excellent function and competitive price.Strictly follow the International security product standard.Suitable for the entrances and exits of appartment, multi-family houses,office, factory, hotel, school, etc.

TCP/IP Communication+ USB Flash Drive Up/Download.
Anti-dismantlement alarm, threatens alarm, unlock illegallyalarm,not block alarm are available.
Dismantlement alarm, threatens alarm,unlock illegally alarm, not block alarm are available.
Arm9 CPU, big capacity FLASH and CMOS chips,Open SDK,professional technical support,easy to integrate with various systems.
Sensor with quality image, accepts dry/wet fingers. Adjust image distortion, assure fingerprint matching consistency.
Fingerprint / Card/ Password / Fingerprint+Card / Fingerprint+ Password / Card+Password / Fingerprint+ Card+ Password identification modes are all available.

Specifications:
Model	2F20
LCD Resolution	128*64
Fingerprint Sensor Resolution	500DPI
Rotational Angle	Total Rotational Angle
FRR	≤0.1%
FAR	≤0.0001%
Identification Time	≤0.1 S
Query Record	Available
Real Time Fingerprint Picture Display	Available
Operating Mode	Off-line/On-line
Authentication Mode	1:1 1:N
Identification Mode	Fingerprint/ID Card/Password
Fingerprint Capacity	2,000
Log Capacity	50,000 events
Communication	TCP/IP, RS485
U disk up/download	Available
Language	Chinese, English, Korean
Voice prompt	Available
Capacity notification	Alarm when log capacity is full
Bell	Built-in timing bell
Lock Output	Normal Open / Normal Closed
Door Open Button	Can connect the common button, or the wireless remote controlled button
Doorbell Output	Can connect the doorbell in every voltages
Access Control Interface	Wiegand 26/34 Optional, Input/Output Optional
Anti-passback	Available
Alarm	Threatens Alarm, Anti-dismantlement Alarm, Unlock Illegally Alarm,
Alarm	Circumscribed Alarm, Time-out Alarm
Power	DC 12V/1A
Operating environment	Operating Temp: 0°c-50°c, Humidity:80%
Size of the Terminal	181(L)91(W)36(H)mm

3 v 1.jpg

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button. Can used all over the world.

Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
The circuit board has remote control port.

Specifications:

Input Voltage: AC 110~220V 50~60Hz
Output Voltage: DC 12V 3A
Outer Dimensions: 103 x 68 x 33mm

Electric Lock:

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

NC Mode - (Locked while supplied with power) Unlock Safe Mode;
Made of Stainless Steel;
Performance Testing: 1000000 times aging test;
Authority Certification: CE & MA Approved.

Specification:

Application: wood/iron doors;
Working Voltage: 12VDC
Working Current: 0.2-0.45A;
Weight: 1500g;
Dimension (Face Plate): 15x3.95x10(cm)
Pack includes: One electric lock.

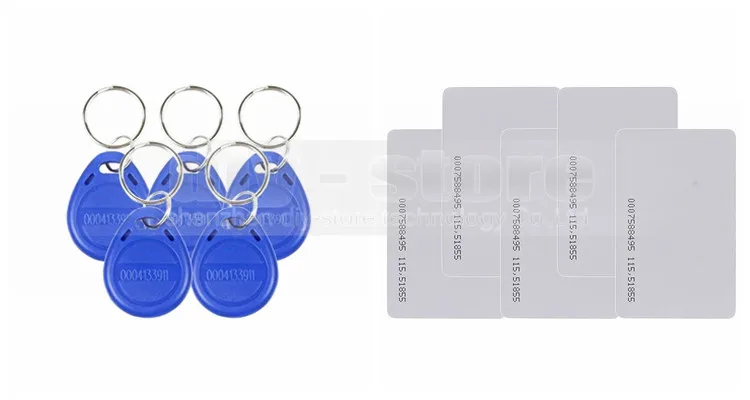

RFID Cards:

There are 10pcs 125KHz RFID Proximity ID cards, they can work with the product which has 125Khz RFID card reader.

Operation Frequency: 125KHz
Each card has an uniqe ID number.
Perfect for attendance system, access control system, identification, low frequency tag card, etc.

Specifications:

Water resistant
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it

2 54

Exit button:

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.

Specifications:

Working voltage: DC12V
Working current: 3A
Faceplate Dimension: 85mm x 85mm

Optional: if you need the remote control please order from this link.

Remote Control:

This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:

XFXXX

Optional: if you need this door bell please order from this link.

Doorbell:

Management Software Contents:

The powerful software is designed to read attendance record from the terminal or usb stick, to set your checking rules, to calculate worked hours, and to generate various kind of stati-stical reports.

Key Software Functions:

Monitor employee attendance
Calculate and maintain overtime
Track vacation and sick time
Quickly retrieve historical data
Schedule employee hours
Flexible holiday/shift rule and shift pattern setting.

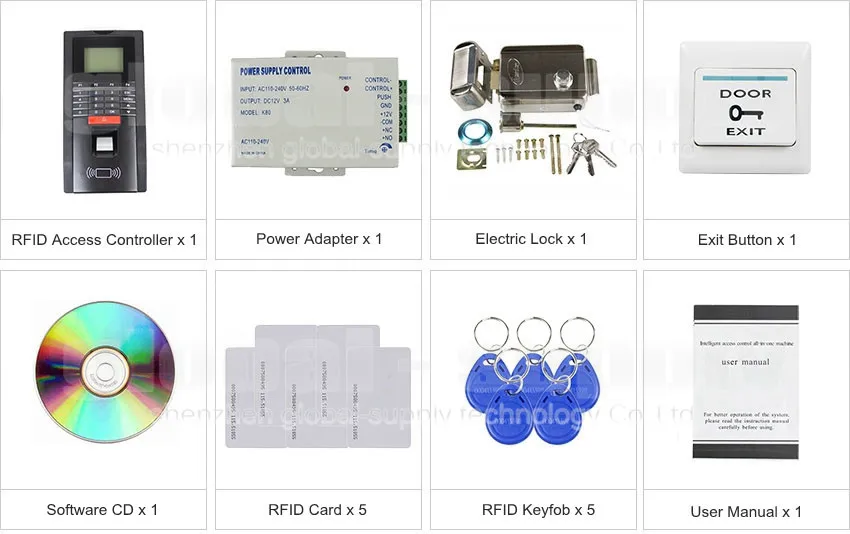

Packing list:
