DIYSECUR Full TCP / IP Fingerprint ID Card Reader Door Access Control Kit + Magnetic Lock + Exit Button

A Complete Kit Fingerprint and ID Card Reader Access Control System

Access Controller+ Power Supply+ Electromagnetic Lock+ 10 ID Cards+ Exit Button

TCP/IP, USB, High-performance

Why Use Access Control ?

With this item can set up the company, or authority of office building image standardization management, improve the management level, at the same time, standardized internal management system.

If induction card lost can immediately report the loss in the system, so that even if someone else picked up the induction card can\'t through the entrance guard system, is more convenient than ordinary mechanical lock, more safety.

cvs_ac_iso

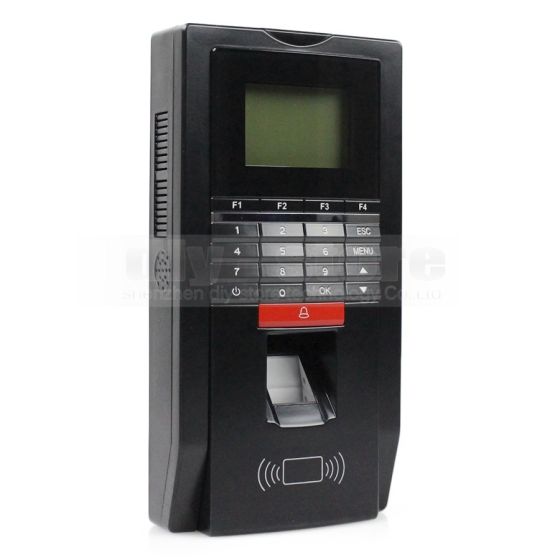

Fingerprint Acess Control device:

This is a professional Fingerprint Access Controller, it adopts the latest and accurate industrialized algorithm. It has refined fashion, integrates Poweerful management software,Very competitive price with good performance, designed specially in the purpose of popularizing the fingerprint products. It could store 2,000 fingerprint templates and 30,000 transaction records. It will bring you much boon because of its excellent function and competitive price.Strictly follow the International security product standard.Suitable for the entrances and exits of appartment, multi-family houses,office, factory, hotel, school, etc.

TCP/IP Communication+ USB Flash Drive Up/Download.
Anti-dismantlement alarm, threatens alarm, unlock illegallyalarm,not block alarm are available.
Dismantlement alarm, threatens alarm,unlock illegally alarm, not block alarm are available.
Arm9 CPU, big capacity FLASH and CMOS chips,Open SDK,professional technical support,easy to integrate with various systems.
Sensor with quality image, accepts dry/wet fingers. Adjust image distortion, assure fingerprint matching consistency.
Fingerprint / Card/ Password / Fingerprint+Card / Fingerprint+ Password / Card+Password / Fingerprint+ Card+ Password identification modes are all available.

Specifications:
Model	2F20
LCD Resolution	128*64
Fingerprint Sensor Resolution	500DPI
Rotational Angle	Total Rotational Angle
FRR	≤0.1%
FAR	≤0.0001%
Identification Time	≤0.1 S
Query Record	Available
Real Time Fingerprint Picture Display	Available
Operating Mode	Off-line/On-line
Authentication Mode	1:1 1:N
Identification Mode	Fingerprint/ID Card/Password
Fingerprint Capacity	2,000
Log Capacity	50,000 events
Communication	TCP/IP, RS485
U disk up/download	Available
Language	Chinese, English, Korean
Voice prompt	Available
Capacity notification	Alarm when log capacity is full
Bell	Built-in timing bell
Lock Output	Normal Open / Normal Closed
Door Open Button	Can connect the common button, or the wireless remote controlled button
Doorbell Output	Can connect the doorbell in every voltages
Access Control Interface	Wiegand 26/34 Optional, Input/Output Optional
Anti-passback	Available
Alarm	Threatens Alarm, Anti-dismantlement Alarm, Unlock Illegally Alarm,
Alarm	Circumscribed Alarm, Time-out Alarm
Power	DC 12V/1A
Operating environment	Operating Temp: 0°c-50°c, Humidity:80%
Size of the Terminal	181(L)91(W)36(H)mm

3 v 1

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button. Can used all over the world.

Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
The circuit board has remote control port.

Specifications:

Input Voltage: AC 110~220V 50~60Hz
Output Voltage: DC 12V 3A
Outer Dimensions: 103 x 68 x 33mm

K80

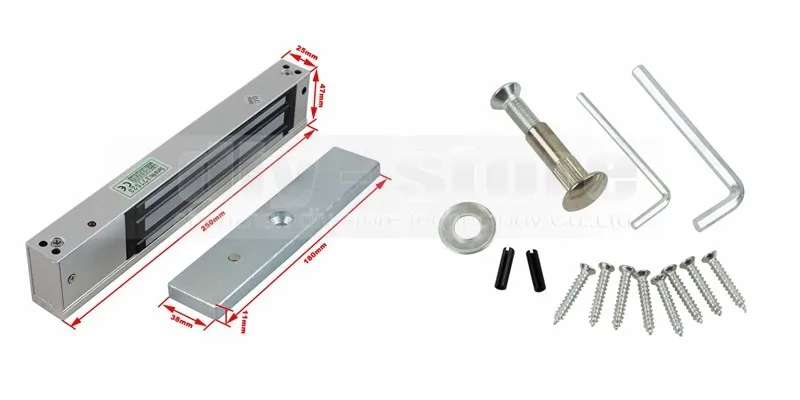

Magnetic Lock:

It is a High-performance 280kg Holding Force electric magnetic lock which suits for many access control

system. This electric lock can meet your need perfectly.

NC Mode - (Locked while supplied with power) Fail Safe Mode
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Doorr, Fireproof Door, etc.
Safety function: Built-in voltage spike suppressor
Anti-Residual Magnesium Designed

Specifications:

Voltage: 12V DC
Application: wood, iron doors
Faceplate dimensions: 180 x 38 x 11mm
Main body dimensions: 250 x 48 x 27mm
Pack includes: electric magnetic lock, installation diagrams
Construction: stainless steel.

280KG

RFID Cards:

There are 10pcs 125KHz RFID Proximity ID cards, they can work with the product which has 125Khz RFID card reader.

Operation Frequency: 125KHz
Each card has an uniqe ID number.
Perfect for attendance system, access control system, identification, low frequency tag card, etc.

Specifications:

Water resistant
Detecting distance: 3-10cm
Operation frequency: 125Khz
Each comes with Key ring included
Compatible with all RFID ID card reader to gain access
Each token pre-programmed with unique ID which is printed on it

Exit button:

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode)
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Door, Glass Door, Fireproof Door, etc.

Specifications:

Working voltage: DC12V
Working current: 3A
Faceplate Dimension: 85mmx85mm
