DIYSECUR TCP/IP USB Fingerprint ID Card Reader Password Keypad Door Access Control System + Power Supply + 280kg Magnetic Lo

A Complete Kit Fingerprint & RFID Reader Access Control System

Access Controller+ Power Supply+ Magnetic Lock+ 10 ID Card / Keyfob + Exit Button

TCP/IP, USB, High-performance

Why Use Access Control ?

With this item can set up the company, or authority of office building image standardization management, improve the management level, at the same time, standardized internal management system.

If induction card lost can immediately report the loss in the system, so that even if someone else picked up the induction card can\'t through the entrance guard system, is more convenient than ordinary mechanical lock, more safety.

cvs_ac_iso

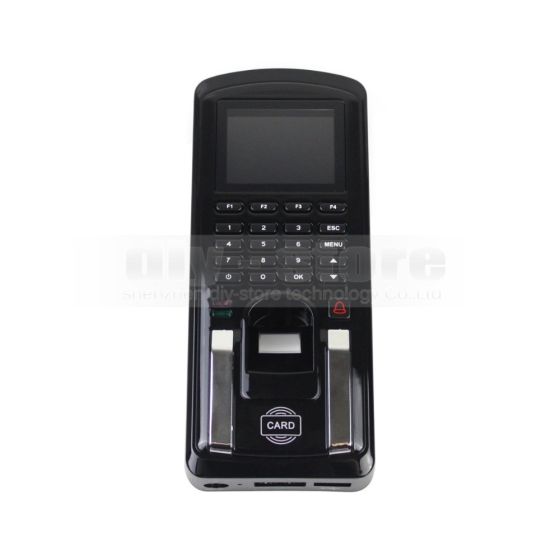

Fingerprint Acess Control device:

This product is an innovative Fingerprint Time clock as well as a professional Access Controller that can be used in both Time Attendance Check and Access Control applications, it adopts the latest and accurate industrialized algorithm. It has refined fashion, integrates Poweerful attendance management software,Very competitive price with good performance, designed specially in the purpose of popularizing the fingerprint products. It could store 1,000 fingerprint templates and 30,000 transaction records. It will bring you much boon because of its excellent function and competitive price.

Strictly follow the International security product standard.Suitable for the entrances and exits of appartment, multi-family houses,office, factory, hotel, school, etc.

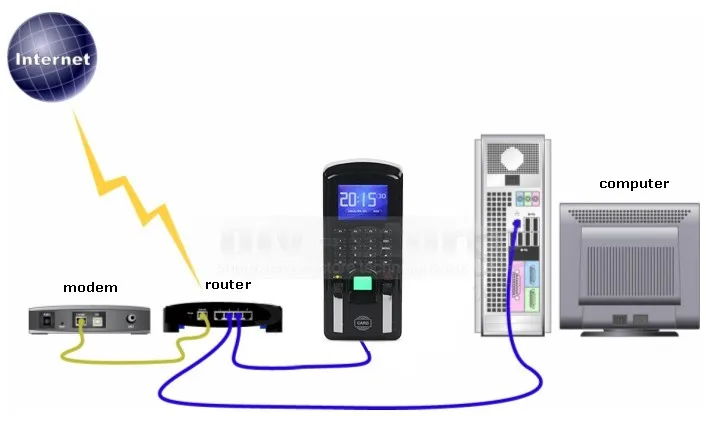

TCP/IP Communication+ USB Flash Drive Up/Download.
Anti-dismantlement alarm, threatens alarm, unlock illegally alarm,not block alarm are available.
Dismantlement alarm, threatens alarm,unlock illegally alarm, not block alarm are available.
Arm9 CPU, big capacity FLASH and CMOS chips,Open SDK, professional technical support,easy to integrate with various systems.
Sensor with quality image, accepts dry/wet fingers. Adjust image distortion, assure fingerprint matching consistency.
Fingerprint / Card/ Password / Fingerprint+Card / Fingerprint+ Password / Card+Password / Fingerprint+ Card+ Password identification modes are all available.

Specifications:
Model	MF151
LCD Resolution	128*64
Fingerprint Sensor Resolution	500DPI
Rotational Angle	Total Rotational Angle
FRR	0.1%
FAR	0.0001%
Identification Time	0.1 S
Query Record	Available
Real Time Fingerprint Picture Display	Available
Operating Mode	Off-line/On-line
Authentication Mode	1:1 1:N
Identification Mode	Fingerprint/ID Card/Password
Fingerprint Capacity	1,000
Log Capacity	100,000 events
Communication	TCP/IP, RS485
U disk up/download	Available
Language	Chinese, English
Voice prompt	Available
Capacity notification	Alarm when log capacity is full
Bell	Built-in timing bell
Lock Output	Normal Open / Normal Closed
Door Open Button	Can connect the common button, or the wireless remote controlled button
Doorbell Output	Can connect the doorbell in every voltages
Access Control Interface	Wiegand 26/34 Optional, Input/Output Optional
Anti-passback	Available
Alarm	Threatens Alarm, Anti-dismantlement Alarm, Unlock Illegally Alarm,
Alarm	Circumscribed Alarm, Time-out Alarm
Power	DC 12V/3A
Operating environment	Operating Temp: 0c-50c, Humidity:80%
Size of the Terminal	191(L)83(W)37(H)mm

3 V 1

Power Supply:

This AC110V--240V Power supply controller is a transformer which provides stable output voltage for access controller, lock, and exit button. Can used all over the world.

280kg Magnetic Lock:

It is a High-performance 280kg Holding Force electric magnetic lock which suits for many access control

system. This electric lock can meet your need perfectly.

125KHz RFID Card/Keyfob:

There are 10pcs 125KHz RFID Proximity ID cards / Keyfobs, they can work with the product which has 125Khz RFID card reader.

Exit button:

This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out:

Optional: If you need this remote control, please order from this link.

https://www.aliexpress.com/store/product/Wireless-Remote-Control-Remote-Switch-Button-Connect-With-Power-Supply-For-Access-Control-System-Kit/226170_1494291128.html?spm=2114.12010608.0.0.Xn8PF2

Remote Control:

This is a remote control device for Door Access Control System, after you connect it on your system, you can press the remote control to open the door remotely, the distance can reach up to 50 meters:

XFXXX

Optional: If you need this door bell, please buy from this link!

https://www.aliexpress.com/store/product/High-Quality-DC12V-Electronic-Door-Bell-For-Door-Access-Control-System-Kit-White-Free-Shipping/226170_1429186913.html?spm=2114.12010608.0.0.yyzWi2

Doorbell:

AD922 ZF20A

Packing list:

280 6
