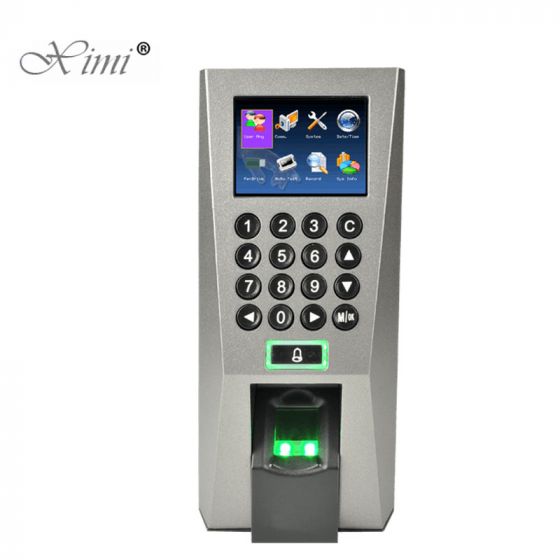

F18 Biometric Fingerprint Time Attendance And Access Control Color Screen With Keypad And TCP/IP Doo
SKU
32250510838
Overview
F18 Biometric Fingerprint Time Attendance And Access Control Color Screen With Keypad And TCP/IP Door Access Controller System...
Introduction:
F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.
TCP/IP and RS485 are available that the device can be used in different network.
Features:
Fingerprint reader with durable and highly accurate ZK optical sensor
1 touch a-second user recognition
Stores 3,000 templates,100,000 transactions
Reads Fingerprint and/or Card(Optional)
Optional integrated smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Specifications:
|
Model
|
F18 |
|
Software
|
ZKAccess3.5
|
| Display | 2.4-inch TFT LCD Color Screen |
|
Fingerprint sensor
|
ZK Optical Sensor
|
|
Algorithm Version
|
ZKFinger V10.0
|
|
Fingerprint Capacity
|
3,000
|
|
Card Capacity
|
10,000
|
|
Log Capacity
|
100,000
|
|
RF Card
|
EM/MF(optional)
|
|
Authentication Method
|
FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF
|
|
Access Control Interface
|
Electric lock, Door sensor, Alarm, Exit button
|
|
Communication
|
TCP/IP, RS232/485,USB-host
|
|
Wiegand Signal
|
Input,Output,SRB
|
| Functions | DST,Record Query,Anti-passback,External RS485 fingerprint reader,Printer(Optional) |
|
Power Supply
|
12VDC 3A
|
|
Operating Temperature
|
0~ 45
|
|
Dimensions (W×H×D)
|
80mm×183mm×42mm |
Image:
| Description | Introduction: F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.
TCP/IP and RS485 are available that the device can be used in different network.
Features:
Fingerprint reader with durable and highly accurate ZK optical sensor
1 touch a-second user recognition
Stores 3,000 templates,100,000 transactions
Reads Fingerprint and/or Card(Optional)
Optional integrated smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Specifications:
Image:
|
||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | 32250510838 | ||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||
| Condition | New |
