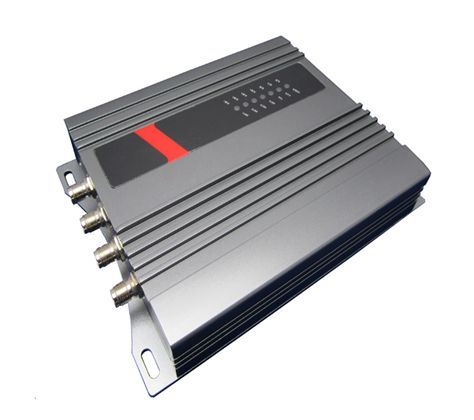

RFID UHF EPC 4 CH Reader Station External Antenna TCP/IP Entry Level Core

SKU
HY401
Special Price US$495.14 Regular Price US$550.16
Out of stock
Overview

Four-channel split reader

  • Support tags protocol: EPC CLASS1 G2、ISO18000-6B standards.
  • Work frequency:860-928MHz
  • Read/write range depends on the antenna read range.
  • Four output external TNC antenna port.
  • input interfaces:RS232,RS485,RJ45(TCPIP),GPIO ,etc.
  • support Monza4QT tags.
  • Equipped with indicator Led and buzzer.
  • work ways:FHSS or fixed frequency transmission.
  • Output power: maximum 30dbm(adjustable)
  • work modes : Auto-running mode, interactive mode, trigger-activating, etc.
  • Low power disspation with single +9V DC power supply.
  • High reliability design to meet extreme work environment conditions.
  • internal Sizes: 230x170x40MM   N.W: 2300g
More Information
SKU HY401
Weight 3.000000
Customizable No
With Built-in Battery No
Warranty 1 Year Warranty
Country Specific Unable to use in Some Countries
selling_potential 4
Minimum Order Quantity No
Description
  • Support tags protocol: EPC CLASS1 G2、ISO18000-6B standards.
  • Work frequency:860-928MHz
  • Read/write range depends on the antenna read range.
  • Four output external TNC antenna port.
  • input interfaces:RS232,RS485,RJ45(TCPIP),GPIO ,etc.
  • support Monza4QT tags.
  • Equipped with indicator Led and buzzer.
  • work ways:FHSS or fixed frequency transmission.
  • Output power: maximum 30dbm(adjustable)
  • work modes : Auto-running mode, interactive mode, trigger-activating, etc.
  • Low power disspation with single +9V DC power supply.
  • High reliability design to meet extreme work environment conditions.
  • internal Sizes: 230x170x40MM   N.W: 2300g
Condition New
