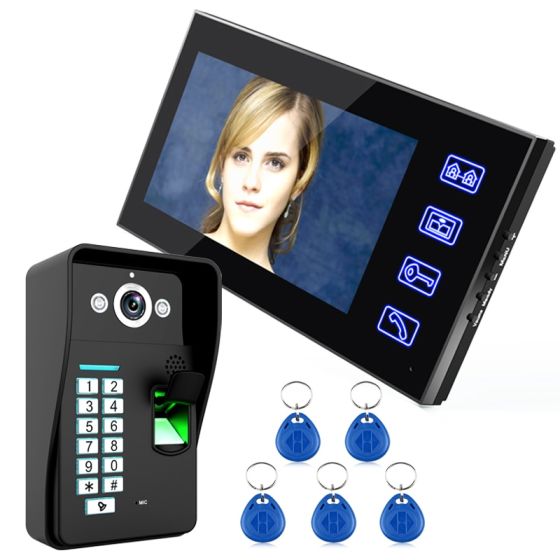

Free Shipping Touch Key 7" LCD Fingerprint Video Door Phone Intercom System With fingerprint access

Touch Key 7" Lcd Fingerprint Video Door Phone Intercom System Wth fingerprint access control 1 Camera + 1 Monitor

Features:

The fingerprint outdoor unit is controlled by fingerprint sensor and code, it is internal integrated with the visual intercom circuit to connect indoor monitor.and use it to intercom, and unlock the door.

MJF Fingerprint Access Controller :

The MJF  is a standalone access control, they use the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure.

All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.

Support 125KHz EM card.

3 ways to unlock( remote unlock, finger print and code)

Can work as a standalone keypad (PIN code length: 4-6 digits).

Relay output load can be 3A max.

Specifications:

User Capacity: 1000 User Card,1 Password,1000 Fingerprint.

Card Type: RFID compatible card 125Khz

Read range: 10-30mm

Wiring connections: Electric Lock, Exit Button

125KHz RFID Cards :

These are 5pcs 125KHz RFID Proximity ID Card, they can work with the product which has 125Khz RFID card reader.

Water resistant

Each comes with Key ring included

Compatible with all RFID ID card reader to gain access

Each token pre-programmed with unique ID which is printed on it

Read valid cards unlock

Read fingerprint unlock

input valid password unlock

Read valid cards or input valid password unlock

Read valid cards or fingerprint unlock

input valid password or fingerprint unlock

Read valid card,valid fingerprint or input valid password unlock

Video door phone:

Combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.

Indoor monitor: ultra-slim design, nice and luxurious, and with a mounting plate, it can be installed on walls easily.

7 inch TFT color LCD display screen, without radiation, low power consumption, high definition and with sensitive touch key press control.

Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.

With a rain shield, waterproof, antioxidant and durable to use.

25 kinds of different melodies for your choices.

Volume, brightness and contrast are adjustable.

Supplied with connection cable and adapter, users can install it according to operating instruction.

Can be widely used in single-family houses,villas, offices, hotels and so on.

This product can meet different requirements: one outdoor camera can support up to four indoor monitors or two outdoor cameras can support up to four indoor monitors.

Specifications of indoor monitor:

Screen: 7" TFT LCD (16:9 display)

Resolution: 960 * 480

Power supplied by: power adapter

Power adapter: input: AC 100-240V 50/60Hz output: DC 15V 2000mA

Adapter type: US EU AU UK plug

Adapter cable length: 1.45m

Consumption: working state: 8W, standby state: 0.5W

Call duration time: approx,120 seconds

Monitor duration time: approx,60 seconds

Material: plastic

Specifications of outdoor unit:

Material: plastic

LED: 2* infrared LED lights

Camera: 1/3 CMOS  1000 TV Line

Viewing angle: 92 degrees

Consumption: calling state: 12W, standby state: 0.1W

Valid distance (6 * 0.75M2 copper wires): 80m

Working temperature: -20 degrees centigrade to + 50 degrees centigrade

Indoor monitor: 228 * 130 * 20m

Outdoor camera: 155 * 95 * 55mm

Package size: 275* 145 * 95mm

Packing list:

1 * Outdoor unit with rain shield with fingerprint access control

1 * Indoor Unit

1 * Power adapter (us/au/eu/uk plug)

1 * 6 pin cable (5m)

1 * 2 pin cable

1 * Mounting plate

1 * Bag of screws

1 * User manual

5 *125KHz RFID Cards
