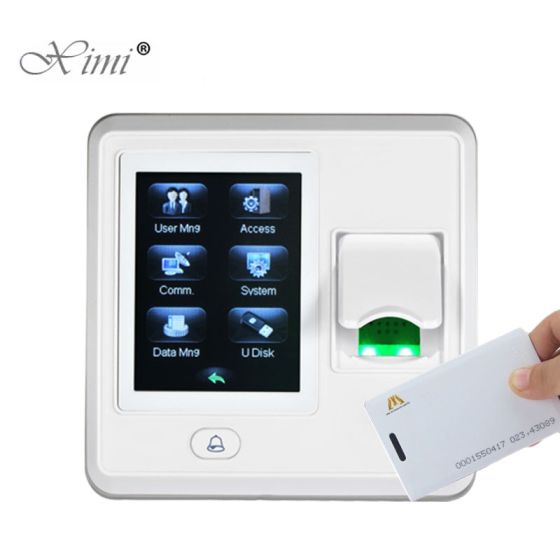

Good Quality ZK Biometric Fingerprint Time Attendance With 125KHZ RFID Card Reader SF300 Door Access Control System With Cov

Products:

The SF300 is an IP based fingerprint terminal, which operate in both network mode and standalone mode. it can connect with ZKAccess3.5 software for access control and time attendance management.
Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader, Additionally, wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.
Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

Features:

• 2.8-inch touch screen, color display with graphical UI for easy operation
• Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
• Prompt audio acceptance or rejection signals for valid or invalid fingers
• TCP/IP or RS485 communication for various networking environments
• Supports USB flash drive for offline data management
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Up to 15 multi-verification methods to enhance security level
• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against duress by threats
• Tamper proof switch and multiple alarm outputs
• Multi-languages display available on quest

Specifications:

Model	SF300
Software	2.8 inch resistive touch screen
Fingerprint Sensor	ZK Optical Sensor (500DPI)
Algorithm Version	ZKFinger V10.0
Communiction	TCP/IP,RS485,USB Host
Fingerprint Capacity	1,500
Card Capacity	5,000
Log Capacity	80,000
RF Card	EM(standard)/MF(optional)
Authentication Method	FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF
Access Control Interface	Electric lock, Door sensor, Alarm, Exit button,Door bell
Software	ZKAccess3.5
Wiegand Signal	Wiegand input&output
Aux Input	1ea for linkage function
Power Supply	12VDC 3A
Operating Temperature	0~ 45
Dimensions (W×H×D)	105mm×105mm×32mm

Image:

HTB1o7WHwvuSBuNkHFqDq6xfhVXaT HTB161NVEGSWBuNjSsrbq6y0mVXar HTB18QSjlnqWBKNjSZFxq6ApLpXa2 HTB1yvSvlljTBKNjSZFuq6z0HFXas
