H.265 2mp 20x Zoom 3G-SDI IP Mini Video Conference Camera Support RTSP RTMP VISCA PELCO Protocols

SKU
32858183108
Special Price US$659.49 Regular Price US$732.76
Out of stock
Overview

H.265 2mp 20x Zoom 3G-SDI IP Mini Video Conference Camera Support RTSP RTMP VISCA PELCO Protocols...

window.productDescription='

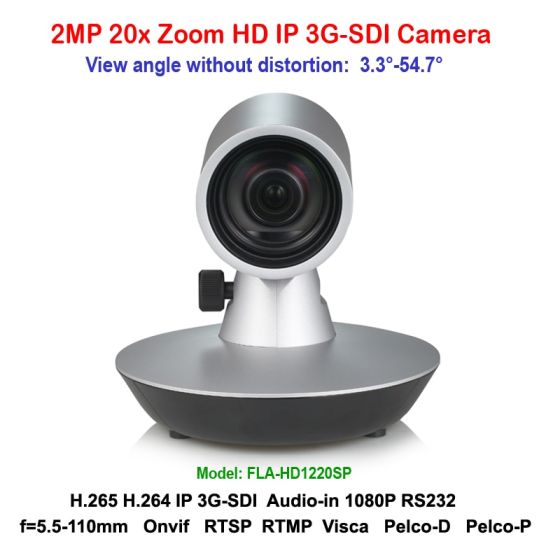

H.265 2mp 20x Zoom 3G-SDI IP Mini Video Conference Camera Support RTSP RTMP VISCA PELCO Protocols



HD1220SP 1718008

3specification

The camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

4main features

 Superb High-definition Image

 It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 60fps

 Multiple optical zoom lens

20X optical zoom multiple optical zoom lens for your choice; the biggest undistorted FOV is 54.7°.

Leading Auto Focus Technology

Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.

Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

Multi-Format Video Outputs

Multiple interfaces include: 3G-SDI and IP, The 3G-SDI is available for 100m transmission at 1080p60 format.

Multiple Video Compression

Support H.264/H.265 video compression; Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channels 1920x1080p with 30fps compression.

Support POE power supply function optional

Multiple Network Protocol

Support ONVIF,RTSP,RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza,FMS)

Support Multiple Control Protocol.

Support VISCA,PELCO-D,PELCO-P protocols which can also be automatically recognized.Support Visca protocol control through IP port.

Wide Application

Tele-education,Lecture Capture,Webcasting,Videoconferencing,Tele-training,Tele-medicine,Interrogation and Emergency command systems.



5 technical parameter

 Model number  FLA-HD1220SP
 Camera  Parameter
 Sensor  1/2.8  inch  high  quality   HD CMOS  sensor
 Effective pixels  16:9, 2.07 Megapixel
 1080p Video Format  1080P60/50/30/25/59.94
 1080P Video Format   1080I60/50/59.94
 720P Video  Format  720P60/50/30/25/59.94
 Optical zoom  20x Zoom f=5.5mm~110mm
 View Angle  3.3°(tele)--54.7°(wide)
 Aperture  F1.6--F3.5
 Digital Zoom  10X   Digital  Zoom
 Minimum Illumination  0.5Lux (F1.6, AGC ON)
 DNR  2D & 3D DNR
 White Balance  Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K/7000K
 Focus  Auto / Manual
 Aperture  Auto / Manual
 Electronic Shutter  Auto / Manual
 BLC  ON / OFF
 WDR  OFF/ Dynamic level adjustment
 Video Adjustment  brightness, color, saturation, contrast, sharpness, B/W mode
 SNR  >55dB
 Input / Output interface
 Video Interface  IP / 3G–SDI / RS232 / Audio input
 Image Code Stream  Dual streams output
 Video Compression   H.265 / H.264
 Control Signal Interface  RS-232
 Control Protocol  VISCA / PELCO-D / PELCO-P
 Baud Rate  115200 / 9600 / 4800 / 2400bps
 Audio Input/Ouput Interface  Dual track 3.5mm linear input/ IP Output
 Audio Compression   AAC / MP3 / PCM  Audio  Compression
 IP Interface  100M IP port (10/100BASE-TX);  POE Can be customized
 Visca  Protocol  Support VISCA protocol control through IP port.
 Network Protocol  RTSP、RTMP、ONVIF、GB/T28181;Network VISCA Control Protoc; Support remote upgrade, reboot and reset
 Power Interface  5.0 Card line socket(DC12V)
 Other  Parameter
 Pitch Rotation Range  ±25°
 Power Adapter  Input: AC110V-AC220V Output: DC12V/1A
 Input voltage  DC12V±10%
 POE(Optional)  POE Optional
 Input current  400mA (Maximum)
 Power Consumption  4.8W (Maximum)
 General
 Wifi(Optional)  5G Wifi Optional
 HDMI Port  --
 USB2.0  --
 USB3.0  --
 Store Temperature  -10℃ to +60℃
 Store Humidity  20% --95%
 Working Temperature  -10℃ to +50℃
 Working Humidity  20%--80%
 Remote Operation   remote upgrade, remote reboot and remote reset
 Accessory  power adapter,IR remote Controllerr, user manual, warranty card
 Optional Accessory  Installation Bracket optional
 Product Dimension  154.5mmX154.5mmX149.3mm
 Net weight  1.5kg
 Packed Dimension  270x250x240MM
 Gross Weight  4.0KG


2-MR

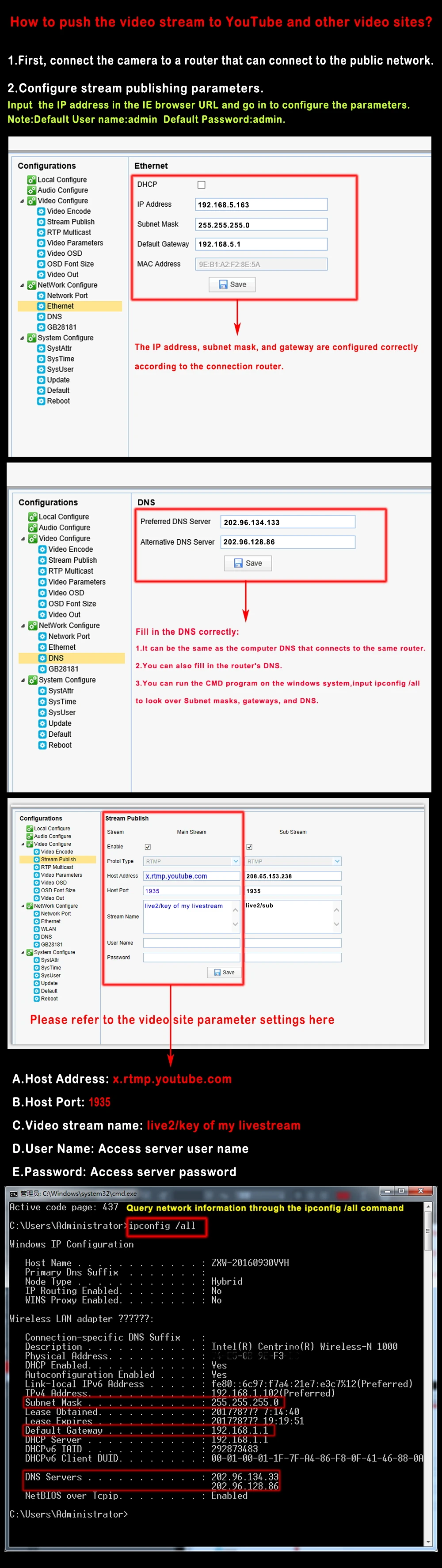

YOUTUBE



6 application occasions

960

7

800-2800-3800-4800-5800-6800-7





10

125681117
