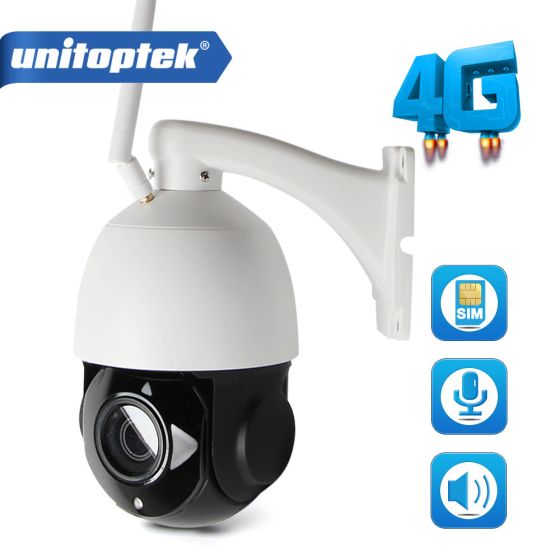

HD 1080P 3G 4G WIFI CCTV Camera SIM Card Speed Dome Wireless PTZ IP Camera Wi-Fi Outdoor 4X Optical Zoom SD Card Audio Talk

Details

1080P 3G 4G WIFI CCTV Camera SIM Card Speed Dome Wireless PTZ IP Camera Wi-Fi Outdoor 4X 18X Optical Zoom SD Card Audio Talk

MINI WIFI 4G IP CAMERA

Supports 355 degree automatic scanning;Support two points between cruise;

HX-4GH13-04&HX-4GH20-04&HX-4GH20-18_01

SUPPORT P2P

No matter how far away can see

02 ptz speed dome ip camera

USAGE SCENARIOS

Can be used a variety of environments

03 4g wifi camera outdoor

HD 1080P Speed Dome Camera

Lens: 4X Optical Zoom

HX-4GH20-4_04

SUPPORT 3G 4G SIM CARD

In the absence of broadband or WIFI,4G SIM can also be networked quickly

HX-4GH20-4_05

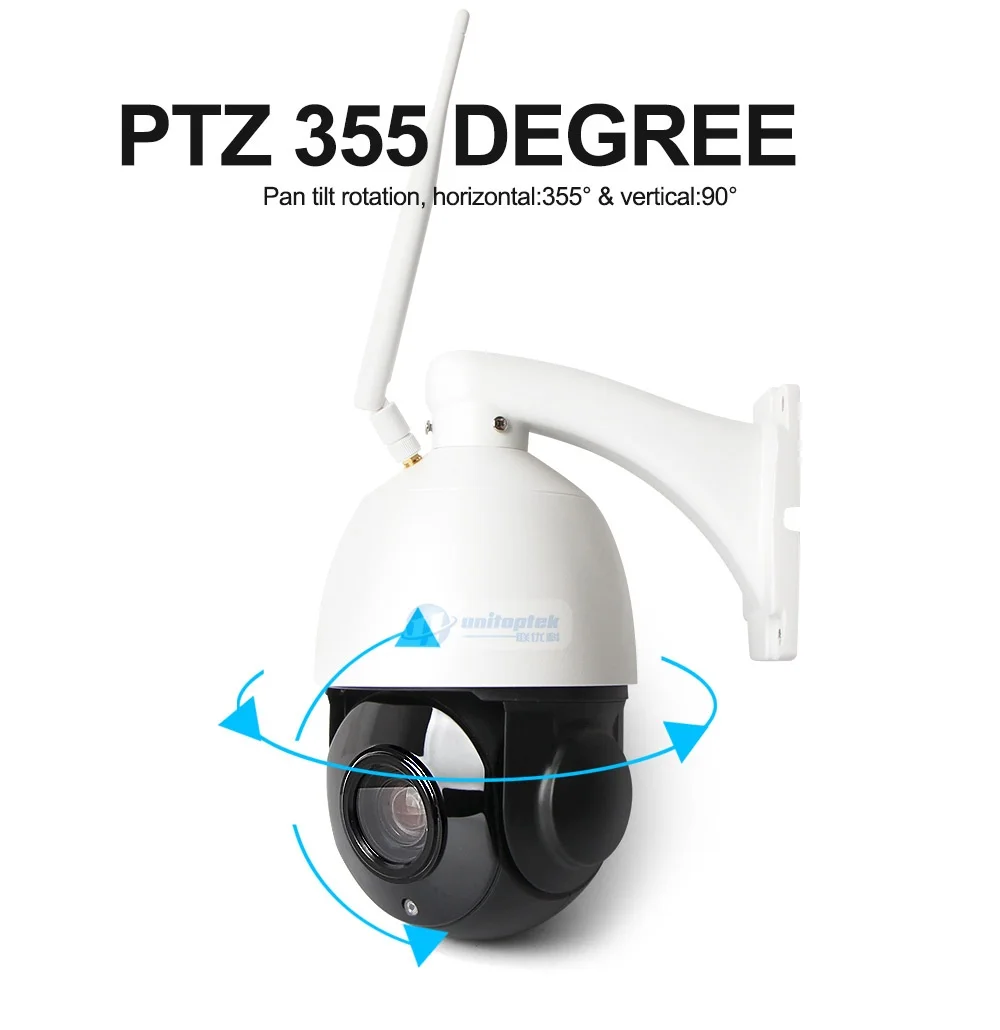

PTZ 355 DEGREE

Pan tilt rotation,horizontal:355° & vertical:90°

06 hd 1080p wifi camera

IP66 WATERPROOF

Aerospace grade metal shell

07 4x zoom ptz camera

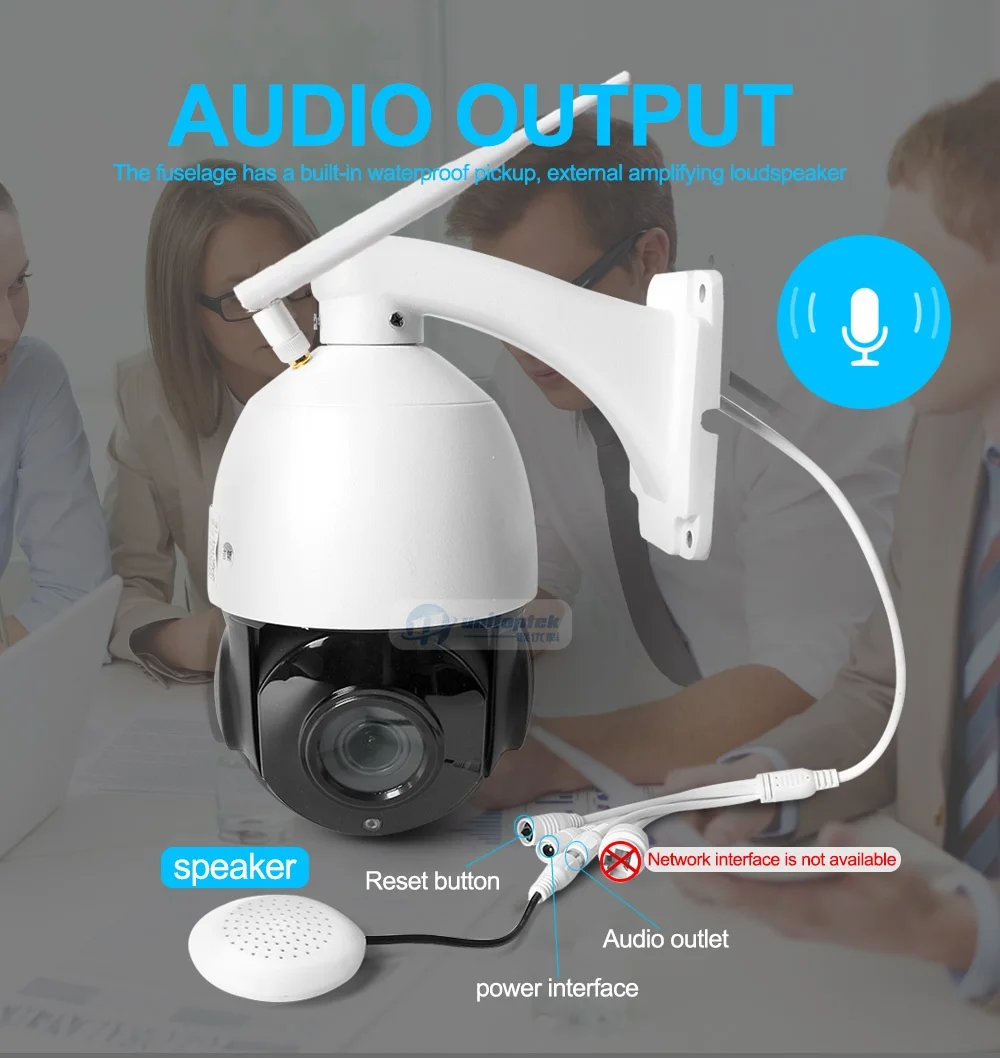

AUDIO OUTPUT

The fuselage has a built-in waterproof pickup,extermal amplifying loudspeaker

08 1080p speed dome camera

4X OPTICAL ZOOM

Anytime,anywhere to see where you want to see

HX-4GH20-4_09

NIGHT VISION EFFECT

HX-4GH20-4_10

MINI 4 INCH

MINI size,it is suitable for a variety of environments

11 1080p speed dome camera

TF/MICRO SD CARD

Don\'t included TF Card

HX-4GH20-4_12

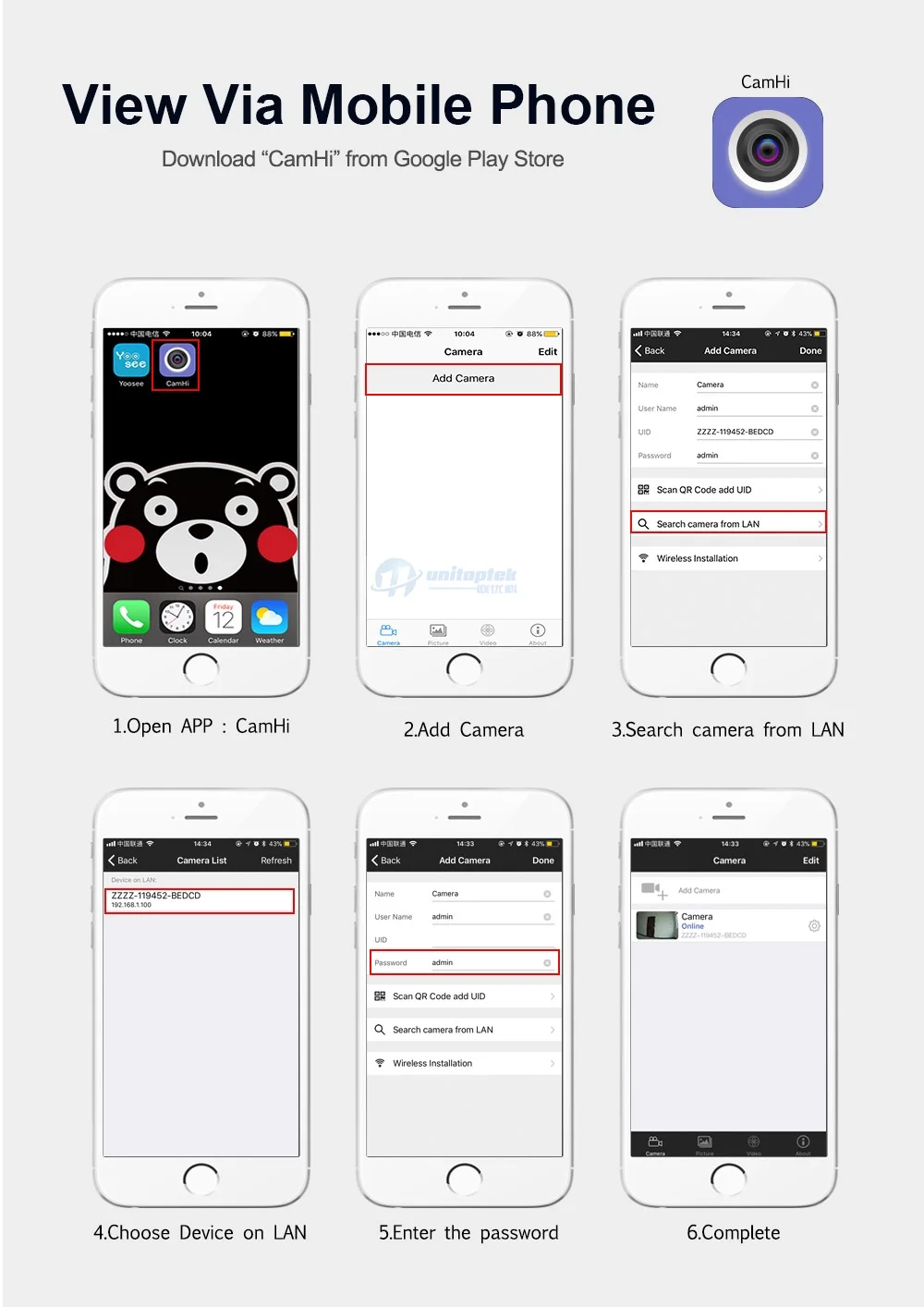

View Via Mobile Phone

Download "CamHi" from Google Play Store

cctv surveillance camera

HX-4GH20-04 = 1080P 4G WIFI Camera Outdoor PTZ Dome Speed,4x Zoom Lens

Important Warning:

You MUST check your SIM card frequency range MUST be in below listed range if you want to use this 3G 4G IP Camera, we will not agree any dispute for your own reason for your wrong order.

3G standard: WCDMA

Frequency range: B1(2100MHz), B8(900MHz)

4G standard: FDD-LTE

Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal, you have to put a SIM card into camera and connect internet by your SIM card. The camera does not support router internet connection !

This 3G 4G ip camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.

No need to connect network LAN cable ! No need to setup wifi !

The 3G 4G ip camera does not support local PC clients . It supports mobile phone app (CamHi) and a remote clients CMS.

The 3G 4G ip camera does not support Cloud FTP storage !

Features:

2.0 megapixel HD IP camera, maximum resolution 1280*960/1920*1080;

Support 4G,support AP mode；

Support TF card storage, maximum support 128G TF card;

2.8-12mm 4X zoom auto focus lens；

pan tilt rotation. horizontal:355°&vertical:90°；

support P2P. view & anywhere & anytime；

waterproof IP66；

6pcs Array Infrared LEDs. 60m Night Vision

elegant outline and easy installation；

provide android & ios APP and multi-channel CMS PC client software；

Specifications:

Products Model	HX-4GH20-04
Processor	HI3516C
Effective pixels	1920*1080
Sensor	1/2.8" sony323 low lux CMOS
Lens interface type	M12
Lens	2.8-12mm
Lens	4X optical zoom auto focus lens
View angle	89.9°-26.2°
Min.illumination	0.05 Lux / 0 Lux(IR on)
Day&Night mode	Auto IR-CUT
Night vision distance	6pcs Array Infrared LEDs.
Night vision distance	60m Night Vision
Video compression standard	H.264
Video encoding type	H.264 Main Profile/H.264 Baseline
Video streaming	Three streaming
Video resolution	First stream: 1080P(1920x1080), 720P(1280x720)
	Second stream: Q720P(640x480/640x352), QQ720P(320x240/320x176)
	JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176)
Video code rate	32~8192Kbps. supports constant bitrate/variable bitrate
Video frame rate	25fps(PAL 50HZ),30fps(NTSC 60HZ)
Image settings	Brightness, contrast,saturation,exposure,Hue
Image enhancement	Backlight compensation,Automatic white balance,Digital WDR,3D digital noise reduction
Audio compression standard	G.726/G.711
Audio code rate	Rate adaptive
Motion detecting	can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage	Alarm send pictures to the specified mailbox;
	alarm upload pictures to the FTP server;
	alarm image and record write Micro SD card
Privacy mask	Support 4 rectangle areas
OSD	Support camera name. date and time information superimposed
User management	supports user and rights management
Simultaneous viewers	maximum support 12 users to simultaneously browse (each stream supports 4 users)
Network protocol	TCP/IP,HTTP,TCP,ICMP,UDP,ARP. IGMP,SMTP,
Network protocol	FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
Connection protocol	N/A
4G standard	FDD-LTE
Frequency range	B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
Transmission rate	Upload max:50Mbps, download max: 150Mbps
Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Rotation angle	Horizon:0°~355°. Vertical:0°~90°
Horizontal speed	1°~ 40°/S
Vertical speed	1°~ 20°/S
Power interface	1 5.5mm power interface
Ethernet	1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
Audio Input	Built in Audio Microphone
Audio output	Support Two Way Audio Talk Back(With Speaker)
TF card Slot	1 TF card slot. up to 64GB (Not Include)
Reset button	support
Power supply	DC 12V 2A/3A
power	Day: <3W. Night: <12W
Operating temperature	-20℃~+60℃
Operating humidity	10%~95%
Waterproof level	IP66
Material	Aluminum
Installation	Rack mounting
Size(W×D×H)(mm)	239×137×215
Weight(kg)	1.45kg
Package Size(W×D×H)(mm)	295285160
Package Weight(kg)	2.15kg

Packing List:

1*4G PTZ Dome Speed Camera Built-in Microphone (Don\'t included TF Card)

1*Speaker

1*Power Supply

1*Manual

1*Screws Bag

1*Antenna
