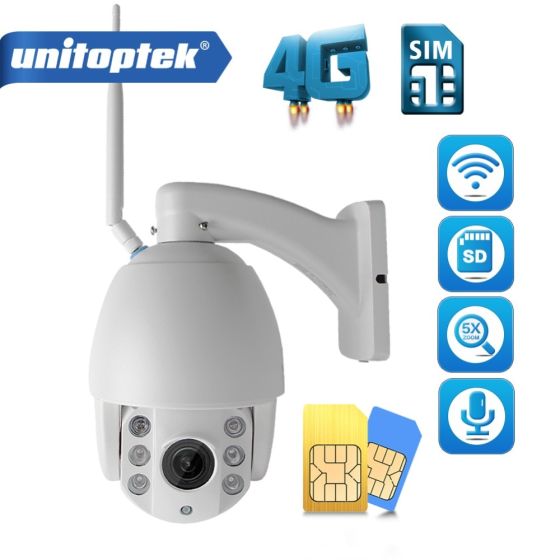

HD 4G SIM Card Camera WIFI 1080P PTZ Speed Dome Cam Wireless Outdoor 5X Optical Zoom SD Card IR P2P 2MP CCTV IP Camera Wi-Fi

Details

3G/4G SIM CARD

5X Optical Zoom PTZ WIFI IP Camera

HD 1080P Wireless Outdoor SD Card CCTV Camera

4G IP Camera

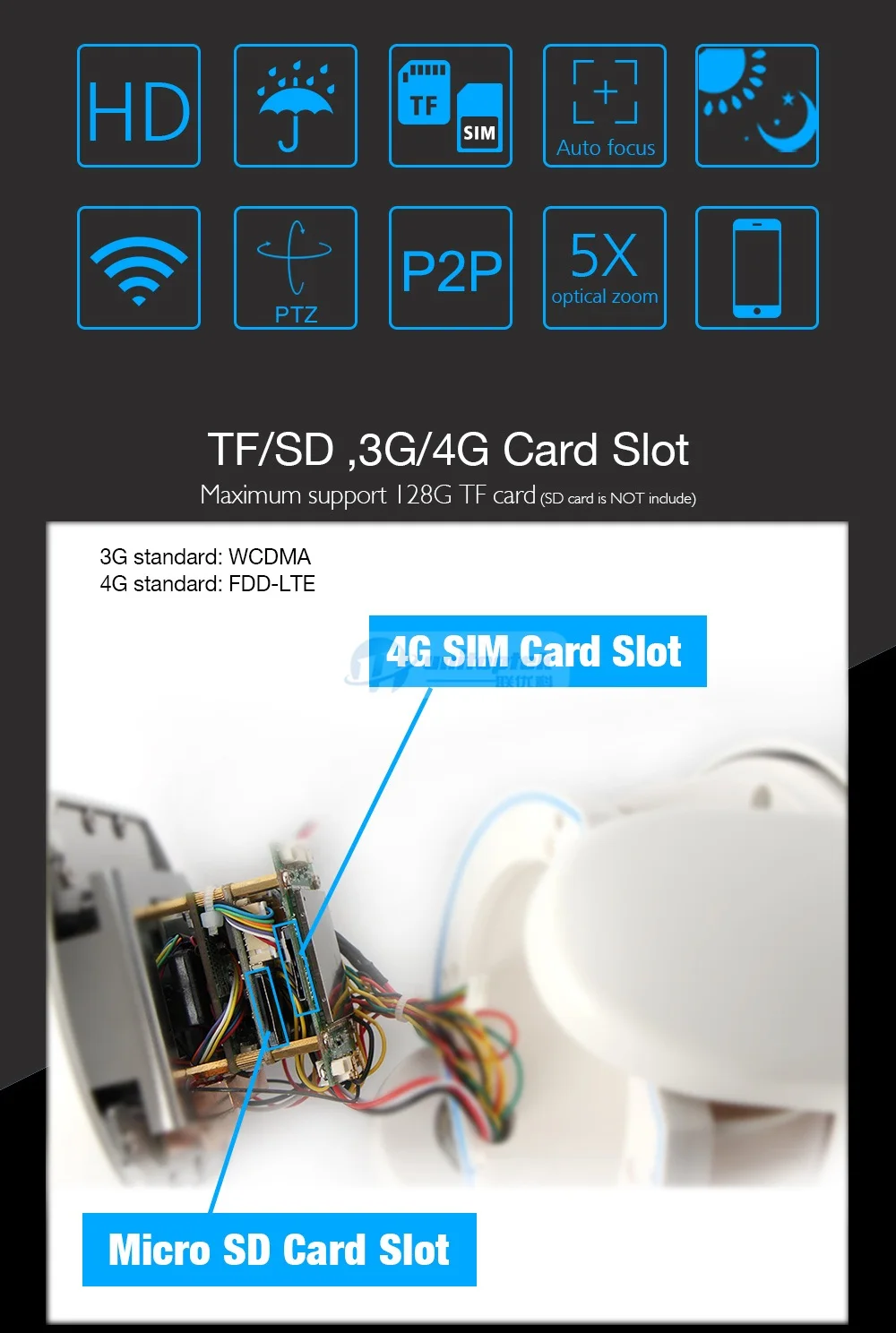

TF/SD,3G/4G Card Slot

Maximum support 128G TF card(SD card is NOT include)

3G standard:WCDMA 4G standard:FDD-LTE 02 1080p 4g ptz ip camera

Support P2P

View & anywhere & anytime

03 960p ptz ip camera

Waterproof IP66

HD 1080P Outdoor Speed Dome IP Camera

ip camera

Support PTZ

Pan tilt rotation,horizontal:355°&vertical:90°

05 5x Zoom PTZ IP Camera

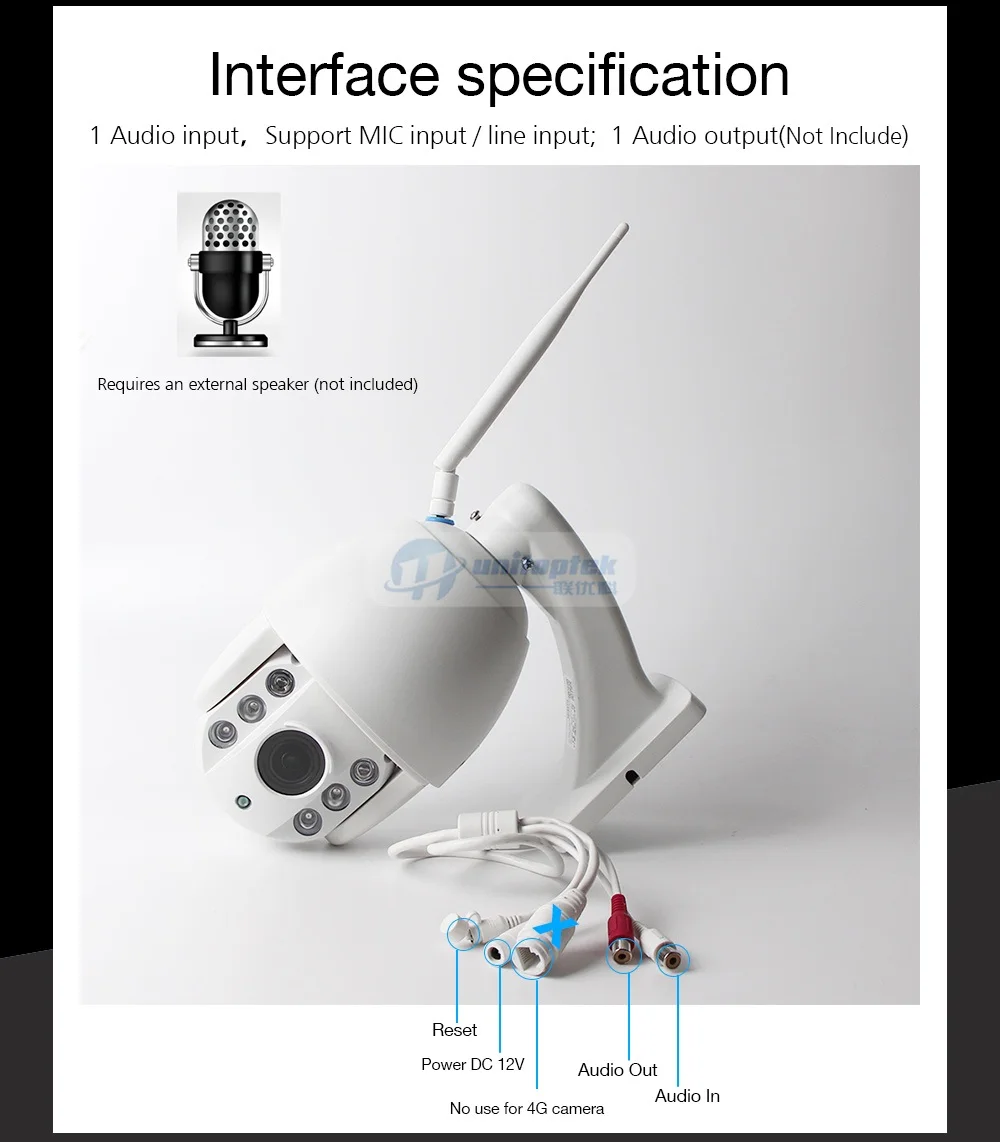

Interface specification

1 Audio input,Support MIC input/line input;1 Audio output(Not Include)

06 4g ptz ip camera 1080p

5X Optical Zoom

2.7-13.5mm 5X optical zoom auto focus Lens

07 cctv surveillance camera

Night vision effect

6pcs Array IR LEDs.IR radiation distance 60m

08 security camera

Product size

Elegant outline and easy installation

09 4g ptz ip camera outdoor

View via mobile phone

provide android & ios APP and multi-channel CMS PC client software

10 1080p security ptz ip camera

Important Warning:

You MUST check your SIM card frequency range MUST be in below listed range if you want to use this 3G 4G IP Camera, we will not agree any dispute for your own reason for your wrong order.

3G standard: WCDMA

Frequency range: B1(2100MHz), B8(900MHz)

4G standard: FDD-LTE

Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal, you have to put a SIM card into camera and connect internet by your SIM card. The camera does not support router internet connection !

This 3G 4G ip camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.

No need to connect network LAN cable ! No need to setup wifi !

The 3G 4G ip camera does not support local PC clients . It supports mobile phone app (CamHi) and a remote clients CMS.

The 3G 4G ip camera does not support Cloud FTP storage !

Features:

2.0 megapixel HD IP camera, maximum resolution 1920*1080;

Support 4G,support AP mode；

Support TF card storage, maximum support 128G TF card;

2.7-13.5mm 5X zoom auto focus lens；

pan tilt rotation. horizontal:355°&vertical:90°；

support P2P. view & anywhere & anytime；

waterproof IP66；

6pcs array infrared LEDs. 60m Night Vision；

elegant outline and easy installation；

provide android & ios APP and multi-channel CMS PC client software；

Specifications:

Camera	Operating system	Embedded Linux OS
	Processor	HI3516C
	Sensor	1080P:1/2.8" sony323 low lux CMOS digital image sensor
	Lens interface type	M12
	Lens	2.7-13.5mm 5Xzoom auto focus lens
	View angle	96°-26.2°
	Min.illumination	0.05 Lux / 0 Lux（IR on）
	Day&Night mode	Auto IR-CUT
	Night vision distance	6pcs array IR LEDs,IR irradiation distance 60m
Video	Video compression standard	H.264
	Video encoding type	H.264 Main Profile/H.264 Baseline
	Video streaming	Three streaming
	Video resolution	First stream:1080P（1920x1080）,720P（1280x720）,Q720P（640x352）
		Second stream:Q720P（640x352）,QQ720P（320x176）
		Third stream:QQ720P（320x176）
		JPEG stream（Monitoring for mobile phones）:Q720P（640x352）,
		QQ720P（320x176）
	Video code rate	32~8192Kbps. supports constant bitrate/variable bitrate
	Video frame rate	25fps(PAL 50HZ),30fps(NTSC 60HZ)
	Image settings	Brightness, contrast,saturation,exposure,Hue
	Image enhancement	Backlight compensation,Automatic white balance,Digital WDR,3D digital
	Image enhancement	noise reduction
Audio	Audio compression standard	G.726/G.711
Audio	Audio code rate	Rate adaptive
Function	Motion detecting	can set 4 independent detection region (1-100 sensitivity can be set)
	Alarm linkage	Alarm upload pictures to the
	Alarm linkage	FTP server; alarm image and record write Micro SD card
	Privacy mask	Support 4 rectangle areas
	OSD	Support camera name. date and time information superimposed
	User management	supports user and rights management
	Simultaneous viewers	maximum support 12 users to simultaneously browse (each stream supports 4 users)
	Network protocol	TCP/IP，HTTP，TCP，ICMP，UDP，ARP. IGMP，SMTP，FTP，DHCP
	Network protocol	DNS，DDNS，NTP，UPNP，RTSP
	Connection protocol	N/A
4G	4G standard	FDD-LTE
	Frequency range	B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
	Transmission rate	Upload max:50Mbps, download max: 150Mbps
	Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
PTZ	Rotation angle	Horizon：0°～355°. Vertical：0°～90°
	Horizontal speed	1°～ 40°/S
	Vertical speed	1°～ 20°/S
Interface	Power interface	1 5.5mm power interface
	Ethernet	1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
	Audio Input	1 input，Support MIC input / line input
	Audio output	1 output
	TF card Slot	1 TF card slot. up to 128G(Not Include)
	Reset button	support
General Specification	Power supply	DC 12V 2A
	power	Day: ＜3W. Night: ＜12W
	Operating temperature	-20℃～+60℃
	Operating humidity	10%～95%
	Waterproof level	IP66
	Material	Aluminum
	Installation	Rack mounting
	Size(W×D×H)(mm)	239×137×215
	Weight(kg)	1.3kg
	Accessories	11.2M Power supply. 1bagScrews
	Package Size(W×D×H)(mm)	260230170
	Package Weight(kg)	1.7kg

Packing List:

1*4G WIFI PTZ Dome Speed Camera

1*Power Supply

1*Manual

1*Screws Bag

1*Antenna
