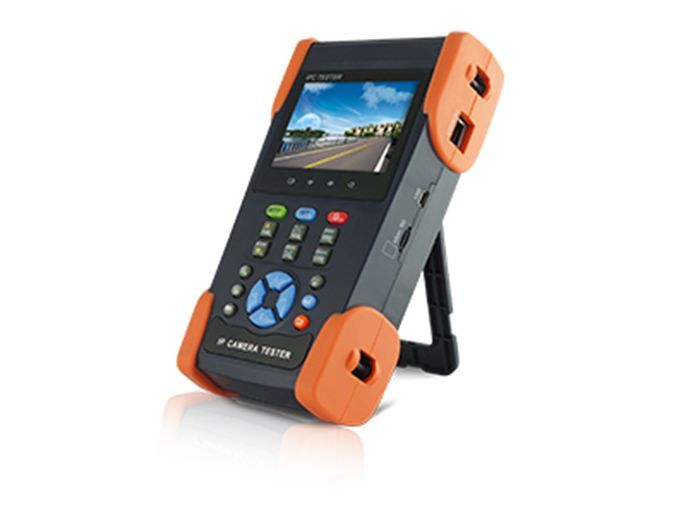

HD Combine Tester-MW- HDIPC03PLUS (3 in 1 ,ahd+cvbs+ipc)
HD Combine Tester-MW- HDIPC03PLUS (3 in 1 ,ahd+cvbs+ipc)
1.3.5 inch IPS touch screen,480*320 resolution 2.New- H.264 and H .265 ,4K video display via mainstream 3.New- 5MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu * 4.4MP AHD test, 2560x1440P 15F/25F/30F,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu* 5.4MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu* 6.IP & CVBS camera test, PTZ controller 7.New- Rapid video, just by one key to detect all network cameras and auto display 8.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report 9.New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS 10.New- Screen management, change function’s icons order, create new directory 11.New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch etc in any interface 12.Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized 13.New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc 14.TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time 15.New- Screen lock, password lock and pattern lock are optional 16.New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable 17.New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters 18.New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc 19.ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF) 20.Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot 21.New- 4K video files and MKV/MP4 media files play 22.PoE DC48V power output, Max power 24W,12V /2A power output 23.8GB SD card including 24.IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address 25.Display its genuine resolution of the IP camera images 26.PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG 27.Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator 28.POE voltage measurement, PING test ,IP address scan, port flashing etc 29.Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools 30.7.4 V /2800mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 8 hours
Product Name | HD Combine Tester-MW- HDIPC03PLUS (3 in 1 ,ahd+cvbs+ipc) |
---|---|
SKU | MW-HDIPC03PLUS3IN1 |
Weight | 2.000000 |
Customizable | No |
With Built-in Battery | No |
Minimum Order Quantity | No |
Description | 1.3.5 inch IPS touch screen,480*320 resolution 2.New- H.264 and H .265 ,4K video display via mainstream 3.New- 5MP TVI test,2560x1944P 12.5FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu * 4.4MP AHD test, 2560x1440P 15F/25F/30F,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu* 5.4MP CVI test,2560x1440P 25F/30F, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu* 6.IP & CVBS camera test, PTZ controller 7.New- Rapid video, just by one key to detect all network cameras and auto display 8.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report 9.New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS 10.New- Screen management, change function’s icons order, create new directory 11.New- Shortcut button, drop-down menu , can select PoE power ,IP setting, WLAN switch etc in any interface 12.Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized 13.New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc 14.TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time 15.New- Screen lock, password lock and pattern lock are optional 16.New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable 17.New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters 18.New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc 19.ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF) 20.Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot 21.New- 4K video files and MKV/MP4 media files play 22.PoE DC48V power output, Max power 24W,12V /2A power output 23.8GB SD card including 24.IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address 25.Display its genuine resolution of the IP camera images 26.PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG 27.Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator 28.POE voltage measurement, PING test ,IP address scan, port flashing etc 29.Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools 30.7.4 V /2800mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 8 hours |
