Hot sale K700S 7inch CCTV TESTER Support PELCO-P, PELCO-D, SAMSUNG etc 30 kinds of PTZ control proto

SKU
32816865972
Special Price US$226.63 Regular Price US$251.81
Out of stock
Overview

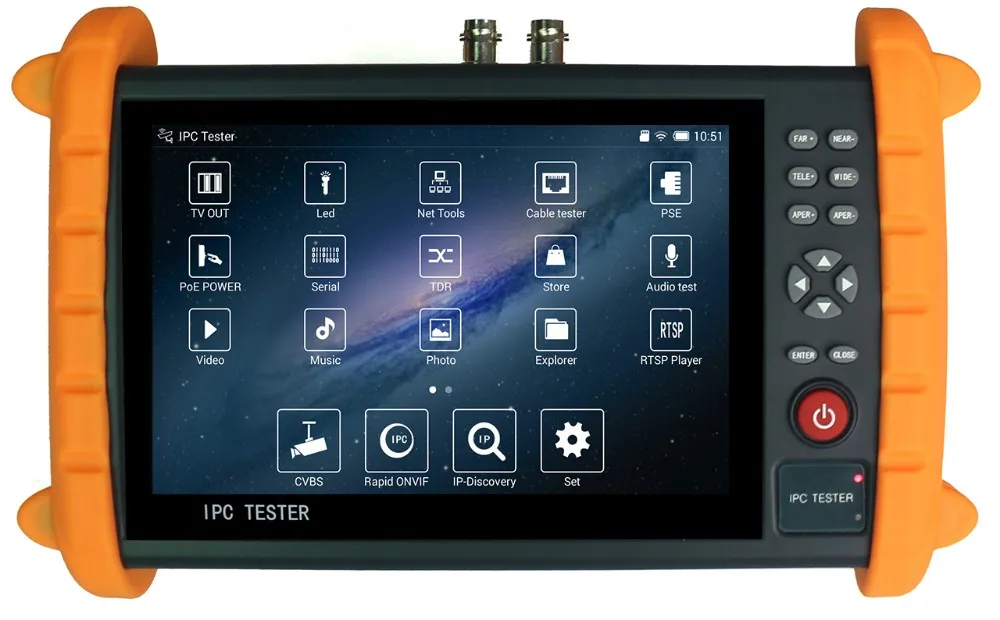

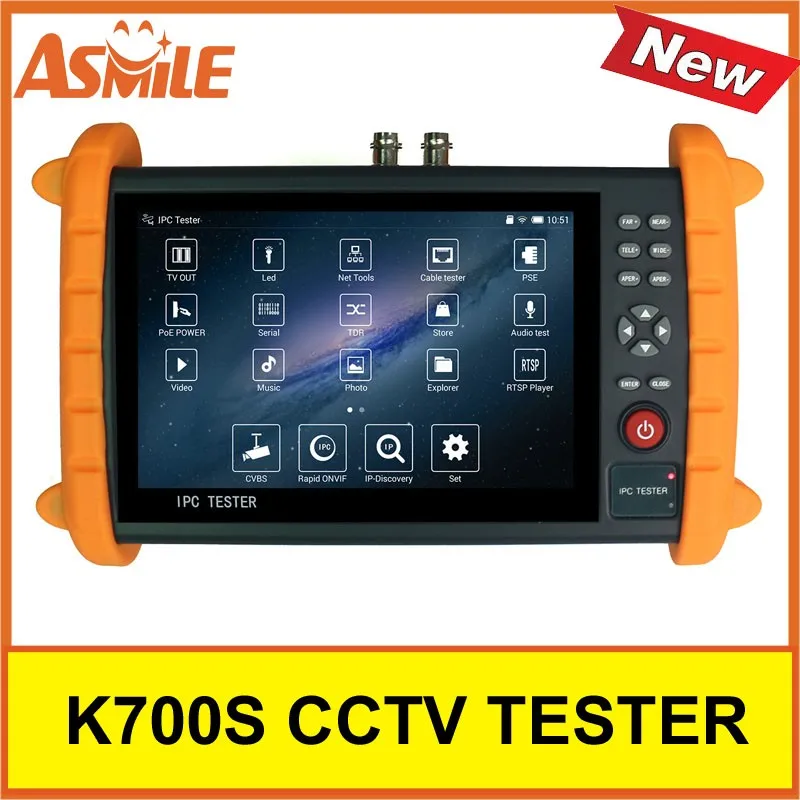

Hot sale K700S 7inch CCTV TESTER Support PELCO-P, PELCO-D, SAMSUNG etc 30 kinds of PTZ control protocol and WIFI...

7 Inch Camera Tester CCTV Tester Monitor Analog HD IP 1080P Hybrid Wifi Camera Tester 12V 2A Output for K700S



800x8500



Feature:

*  7 inch full view IPS HD screen resolution of 1280 * 800, PPI up to 216

*  Backlight display brightness adjustable up to 500cd, display contrast 800: 1
*  Adopt 2G structure capacitive touch screen , hard wear-resistant , corrosion-resistant, high transmittance
* NTSC / PAL analog CVBS video image display , scaling , video recording , photograph
* 10 / 100M Ethernet interface , built-in 150M WIFI wireless function
* ONVIF IPC extreme speed test, image display for click,convenient and effective. Support camera parameter modification.
* support H264 / MPEG4 / MJPEG format  IP camera test , maximum resolution UP to 1080P
* IP address scan intelligent recognize IP camera address, support subnet one key modification..
* support display ONVIF network camera image and modify parameters
* Support network cameras privite protocols test of multiple manufacturers such as Hikvision, DAHUA , ACTI, NCR , can be customized to add
* Support PELCO-P, PELCO-D, SAMSUNG etc 30 kinds of PTZ control protocol
* support high-definition video images in real time zoom , maximum zoom up to 5
* Internal SDCARD 8G storage space , removable external MicroSD card
* Built CVBS color bar output function, can be used to test and debug the monitor
* IP address scan function , you can quickly search the IP camera address
* PING function, to test the network connection status of the target IP address.
* PoE voltage test , test PoE switch power supply status
* PoE 48V / 24W standard power supply output, supplies power to the PoE camera
* DC12V / 2A  output , self-recovery short-circuit protection , provide power for a variety of cameras including PTZ
* Audio input test and recording, can test audio signal
* bright white LED, convenient for using in dark area
* HDMI high-definition image output , support 1080P 60fps
* 7.4V 5000 mAh high-capacity polymer lithium battery ,  once charge 5 hours, can use continuously for 12 hours.





Specifications:



product model
K700S HD video monitor tester
touch screen
7 inch 2G structure capacitance screen
LCD screen
7-inch resolution of 1280 * 800 IPS fule view
Ethernet port
10 / 100M adaptive
WIFI
Built-in WIFI, speed 150M
IP camera Test
ONVIF speed test, one second  scan, click display viedo support maximum 1080P H264 / MJPEG / MPEG4 format, support for modify IP, support ONVIF PTZ control
CVBS analog camera test
1 channel CVBS analog input , support PAL / NTSC standard adaptive
Video image enlarge
Real-time enlarge mobile HD video image , maximum to 5 times
Photograph, video playback
Supprot video record and All video formats. Support H264 coding storage
Audio Test
One channel audio input test , can be recorded and saved , one audio output for connecting headphones
PTZ control
Supports Pelco-D / P, Samsung, Panasonic at30 kinds of protocols.
Color Bar Generator
can send PAL / NTSC color graphics section
DC 12V power output
12V DC output , the maximum current 2A, supply power for camera
PoE power output
48V PoE standard output , to provide power for the PoE cameras
RS485 serial tools
Send or Recive any data or hex data
PSE voltage test
display PoE power supply device voltage and circuit conditions
HDMI video output
Send high-definition monitor images to HDMI Monitor
DC 5V Output
Provides power forthe USB-powered camera or cellphones,maximum 2A
Charger
DC 12V / 2A
Battery
Built-in 7.4V lithium polymer battery , capacity 5000mAh, can provide power for 8-16 hours
Language
Chinese Simplified , Chinese Traditional, English
Internal SD storage
8G
Operating temperature
below 10--50 degree
Working humidity
30--90 percent
size
23cm*14cm*4.5cm
Weight
0.9kg




IMG_244011IMG_2458IMG_2474IMG_2479IMG_24641

<table style="box-sizing: content-box; margin: 0px; padding: 0px; font-stretch: inherit; font-size: 13.3333px; line-height: 18.7778px; font-family: \'Open Sans\', Arial, Helvetica, sans-serif, SimSun,





product model

K700S HD video monitor tester

touch screen

7 inch 2G structure capacitance screen

LCD screen

7-inch resolution of 1280 * 800 IPS fule view

Ethernet port

10 / 100M adaptive

WIFI

Built-in WIFI, speed 150M

IP camera Test

ONVIF speed test, one second  scan, click display viedo support maximum 1080P H264 / MJPEG / MPEG4 format, support for modify IP, support ONVIF PTZ control

CVBS analog camera test

1 channel CVBS analog input , support PAL / NTSC standard adaptive

Video image enlarge

Real-time enlarge mobile HD video image , maximum to 5 times

Photograph, video playback

Supprot video record and All video formats. Support H264 coding storage

Audio Test

One channel audio input test , can be recorded and saved , one audio output for connecting headphones

PTZ control

Supports Pelco-D / P, Samsung, Panasonic at30 kinds of protocols.

Color Bar Generator

can send PAL / NTSC color graphics section

DC 12V power output

12V DC output , the maximum current 2A, supply power for camera

PoE power output

48V PoE standard output , to provide power for the PoE cameras

RS485 serial tools

Send or Recive any data or hex data

PSE voltage test

display PoE power supply device voltage and circuit conditions

HDMI video output

Send high-definition monitor images to HDMI Monitor

DC 5V Output

Provides power forthe USB-powered camera or cellphones,maximum 2A

Charger

DC 12V / 2A

Battery

Built-in 7.4V lithium polymer battery , capacity 5000mAh, can provide power for 8-16 hours

Language

Chinese Simplified , Chinese Traditional, English

Internal SD storage

8G

Operating temperature

below 10--50 degree

Working humidity

30--90 percent

size

23cm*14cm*4.5cm

Weight

0.9kg
