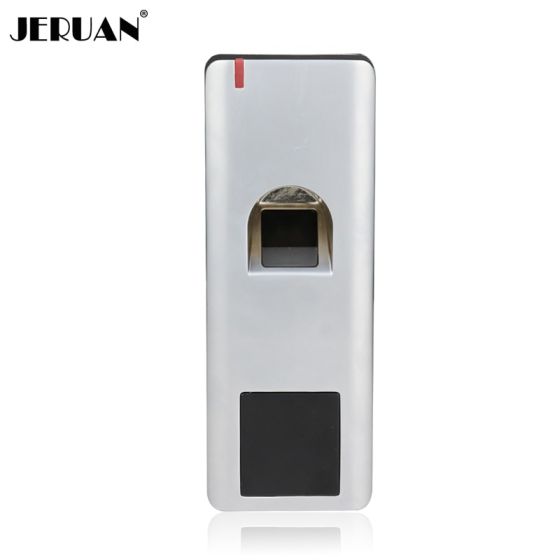

JERUAN 1000 Users Metal Biometrics Fingerprint Access Control System 2000 Users RFID 125khz Reader

SKU

32913470445

Special Price US$62.33 Regular Price US$69.25

In stock

Overview

JERUAN 1000 Users Metal Biometrics Fingerprint Access Control System 2000 Users RFID 125khz Reader Door Access Control IP66...

Fingerprint Standalone waterproof access control

Metal case, anti-vandal

• One relay

• 1000 fingerprint, 2000 card users

• 2 access modes: fingerprint, card

• Card type: 125KHz EM card

• Standalone or pass-trough operation

• Wiegand 26~44 bits output

• Inter-lock

• Support Authorizing Users

fingerprint reader

User Capacity Fingerprint Card	3000 1000 2000
Operating Voltage Idle Current Active Current	12V DC < 45 Ma < 150 Ma
Fingerprint Reader Resolution Identification time FAR FRR	Optical fingerprint Module 500 DPI < 1S < 0.01% < 0.1%
Proximity Card Reader Radio Technology Read Range	Industry Standard 26 bit 125KHz Industry Proximity EM Card ≥2 cm
Wiring Connections	Relay output, exit button, alarm, Wiegand output,DOTL
Relay Adjustable Relay Output Time Adjustable Alarm Output Time Lock Output Load Alarm Output Load	One (NO, NC, Common) 0~ 99 Seconds (5 seconds default) 0-3 Minutes (1 minute default) 2 Amp Maximum 5 Amp Maximum
Wiegand Interface	Wiegand 26~44 bits output (default: 26 bits)
Environment Operating Temperature Operating Humidity	-30 oC ~ 60 oC (-22 oF ~ 140 oF)- Default -40 oC ~ 60 oC (-40 oF ~ 140 oF)- Optional 20% RH ~ 90% RH
Physical Dimensions Unit Weight Shipping Weight	Zinc-Ally Enclosure 128L x 48W x 26H (mm) 300g 365g
