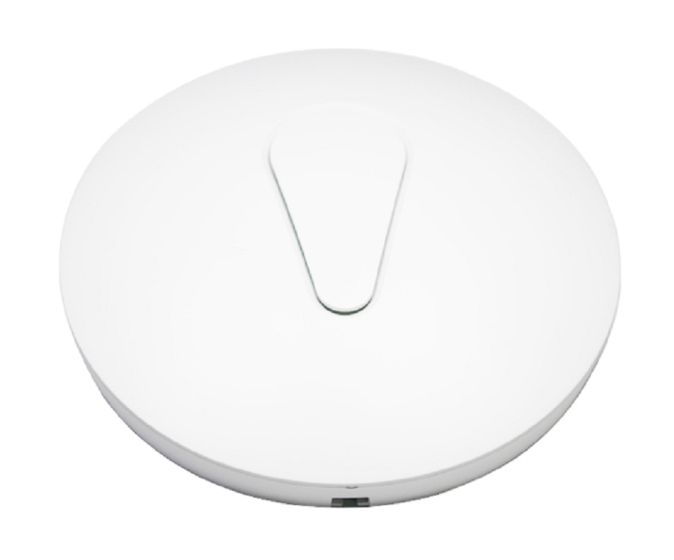

2.4GHZ CEILING RFID READER

SKU

YJT-R2420A

Be the first to review this product

Special Price US$243.60 Regular Price US$270.67

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

JT-R2420A
2.4GHZ CEILING RFID READER

SPECIFICATION：
Working frequency 2.4GHz~2.45GHz
Size φ205*45mm
Weight 2kg
Material ABS
MAX receive sensitivity -90dBm
Anti-collision >Up to 200 tags read simultaneously
Antenna gain 3dbi,dual polarization
Identifying direction Omni-directional recognition,360 degree
covered
Reading speed 200km/h
Software & SDK DEMO and C#, C++, Java
Interface RS232,RJ45(TCP/IP),WiFi
Working current 130mA
Standby current 5uA
Signal modulation mode GFSK
Traffic rate 1Mbit/s
IP Grade IP54
Network Interface POE power supply
Power DC12V/3A or POE power supply
Working temperature -20℃~+75℃
Storage temperature -40℃~+85℃
Read Range 0-50m( based on enviroment and active tag)

DESCRIPTION

2.45GHz RFID reader. Data transmission module with integrity structure and fullfunction. It includes RF Module,central control unit, input/output ports, Ethernet
module, serial communication interface, non-volatile memory modules and working
status indication module and built-in antenna etc.

FEATURES

◆Omni-directional, 360 degree covered
◆Multiple tags reading ability
◆High sensitivity to tag
◆Support RS232,RJ45(TCP/IP),WiFi

More Information

More Information
Product Name	2.4GHZ CEILING RFID READER
SKU	YJT-R2420A
Weight	1.000000
Customizable	No
With Built-in Battery	No
Warranty	1 Year Warranty
Country Specific	Universal
selling_potential	3
Minimum Order Quantity	No
Description	JT-R2420A 2.4GHZ CEILING RFID READER SPECIFICATION： Working frequency 2.4GHz~2.45GHz Size φ20545mm Weight 2kg Material ABS MAX receive sensitivity -90dBm Anti-collision >Up to 200 tags read simultaneously Antenna gain 3dbi,dual polarization Identifying direction Omni-directional recognition,360 degree covered Reading speed 200km/h Software & SDK DEMO and C#, C++, Java Interface RS232,RJ45(TCP/IP),WiFi Working current 130mA Standby current 5uA Signal modulation mode GFSK Traffic rate 1Mbit/s IP Grade IP54 Network Interface POE power supply Power DC12V/3A or POE power supply Working temperature -20℃~+75℃ Storage temperature -40℃~+85℃ Read Range 0-50m( based on enviroment and active tag) DESCRIPTION* 2.45GHz RFID reader. Data transmission module with integrity structure and fullfunction. It includes RF Module,central control unit, input/output ports, Ethernet module, serial communication interface, non-volatile memory modules and working status indication module and built-in antenna etc. FEATURES ◆Omni-directional, 360 degree covered ◆Multiple tags reading ability ◆High sensitivity to tag ◆Support RS232,RJ45(TCP/IP),WiFi
Condition	New
