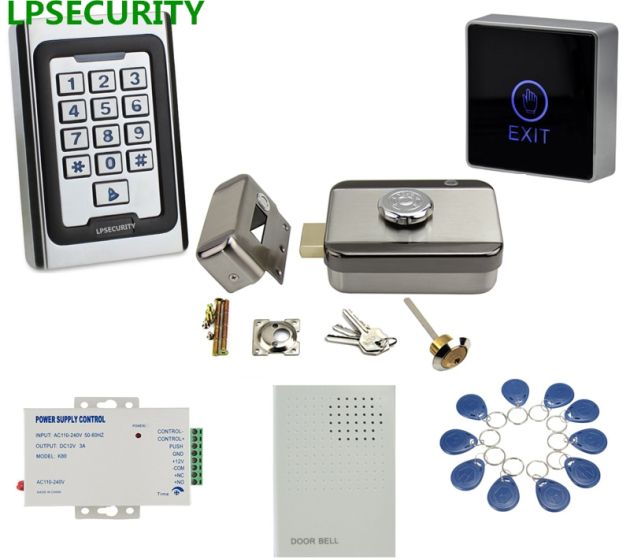

LPSECURITY Metal case keypad RFID access control system kit set electric door lock kit
LPSECURITY Metal case keypad RFID access control system kit set electric door lock kit with free pass for exit 10 tags doorbell...
This model of lock is open from inside by manual button; and we also have a model which is open by manual key from inside.
Specifications:
Performance
Intelligent Locks were invented by "Hongtai"company and attained " Technical Invention Letter of Patent"
This series locks combine the virtues of electric rim lock and electromagnetic lock,overcome the loud noise of electric rim lock and high power consumption of electromagnetic lock
Convenient installation,no need to identify left /right hand door or inward/outward door
Decrease the requirement of door closer as they can lock automatically and without collision when the door is closed.Solve the door easily deformed as he high strength of door closer,extend the door’s lifetime
Detect state of latch.when lock doesn’t lock well,can lock again
Low noise,long lifetime,low power consumption
Various opening methods:access control,intercom,remote control,RFID card,key etc
Voltage:12-18VDC
Can not open the lock when separate the magnetic sensor,make it safer
Reverse voltage protection, short-circuit protection, sound light alarm when the hall fault
Technical Parameters
The length of extended latch ≥20mm
Voltage:DC12V±10%
Unlocking current <300mA
Standby current 16mA
Unlocking time <1S
Application:
These products are widely applied in access control system and related applications such as Electric Magnetic lock , lock controller, RFID-IC card reader ,password keypad etc.
Specifications:
1.Small and exquisite, easy installation.
2.Advantages: Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only ¡À1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).
3.AC input: Standard AC100V-240V 50-60HZ 36W.
4.DC output: Stabilizator DC12V/ 3 A.
5.It controls electric lock directly. It can set time lapse control circuit and unlocking time can be in 0-15 seconds(it is arbitrarily adjustable).
6.Automatic protection function: It will protect automatical and no voltage output when short circuit happening in the circumferential circuit.
7.Outside iron shell dimension:120mm*95 mm*38mm.
8.Set NC / NO outputs, can control various types of electric locks.
9.Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down.
Feature:
Strong Zinc Alloy Electroplated anti-vandal case
Non-Waterproof
Full programming from the keypad
2000 users, supports Card, PIN, Card+PIN
Can be used as a standalone keypad
Backlight keys
Wiegand 26 input for connection to external reader
Wiegand 26 output for coonection to a controller
Adjustable Door Output time, Alarm time, Door Open time
Very low power consumption (30mA)
Fast operating speed, <20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built in light dependent resistor (LDR) for anti tamper
Built in buzzer
Red, Yellow and Green LEDs display the working status
Specification:
Operating Voltage: 12VDC
User Capacity: 2000
Card Reading Distance: 3-6cm/1.18-2.36in
Frequency: 125KHZ
Active Current: < 60mA
Idle Current: 25±5mA
Lock Output Load: Max 3A
Alarm Output Load: Max 20A
Operating Temperature: -45~60°C/-49~140°F
Operating Humidity: 10%~90%RH
Adjustable Door Relay Time: 0-99 seconds
Adjustable Alarm Time: 0-3 minutes
Wiegand Interface: Wiegand 26 bit
Technical Information:

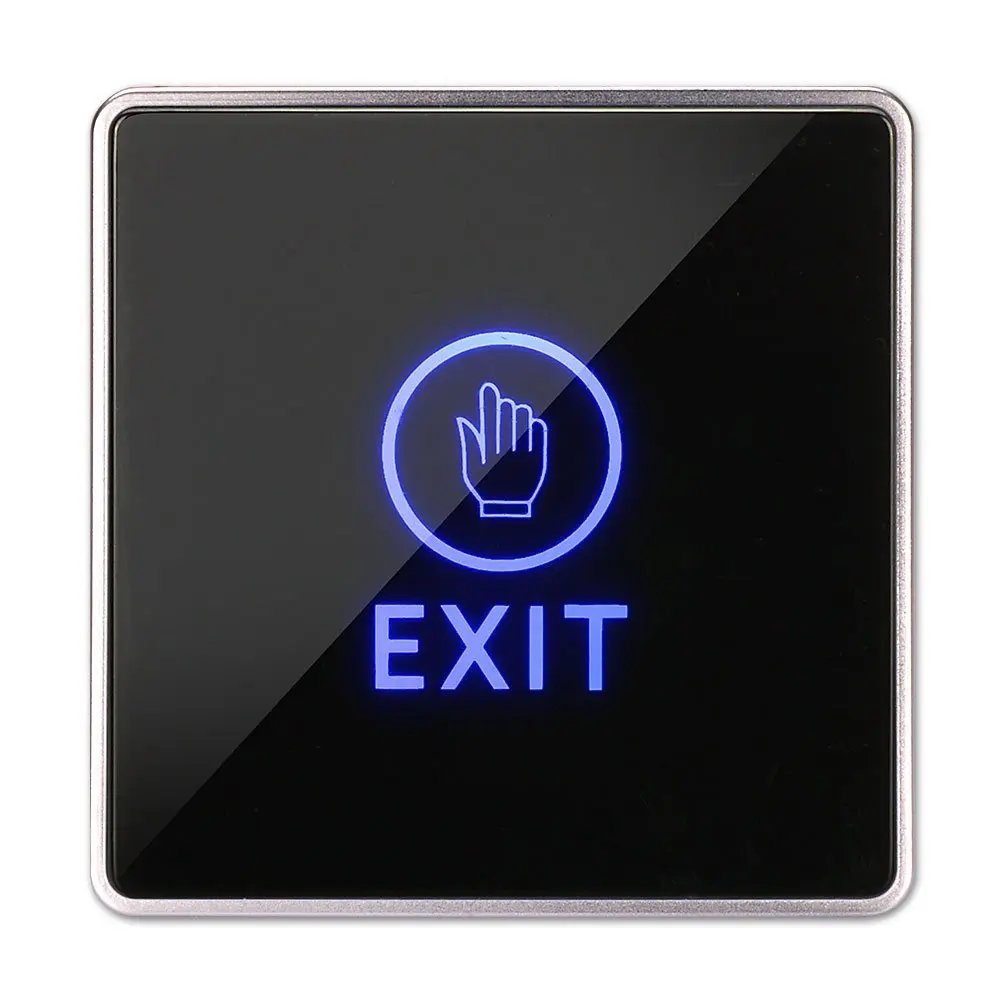

Standard Structure : Touch to exit
Power Input : DC 12V
Suitable Humidity : < 95%
Mechanical Life : > 500000 times
Output Contact : NO / NC / COM
Operating Temperature : -20°C ~ 55°C
LED Indicator :
- Blue : Standby
- Green : Triggered
Dimensions :
- approx. 86 (W) x 86 (H) x 21 (D) mm
- approx. 3.4" (W) x 3.4" (H) x 0.8" (D) inch
Specification:
Plastic Panel with Elegant Style
Tested to 100000 Cycles
Three Contact Output,Suitable for all kinds of the Locks
Dimensions: 86Lx86W(mm) / 3.4"x3.4"
Current Rating: DC 36V/3A
Output Contact: NO/COM
Mechanical Life: 500000 tested
Specifications:
Wired door bell 12VDC for security access control
Features a bell sound, small size and wall-mount hole, very easy to install
Switch is not included
Volume of doorbell: 90db
Working Voltage: DC12V
Dimension:- Approx. 3-1/2(W)x2-1/2(H)x1(D)in / - Approx. 88(W)x62(H)x24(D)mm
Material: Plastic
Color: White
| Description | This model of lock is open from inside by manual button; and we also have a model which is open by manual key from inside.
Specifications: Performance Intelligent Locks were invented by "Hongtai"company and attained " Technical Invention Letter of Patent" This series locks combine the virtues of electric rim lock and electromagnetic lock,overcome the loud noise of electric rim lock and high power consumption of electromagnetic lock Convenient installation,no need to identify left /right hand door or inward/outward door Decrease the requirement of door closer as they can lock automatically and without collision when the door is closed.Solve the door easily deformed as he high strength of door closer,extend the door’s lifetime Detect state of latch.when lock doesn’t lock well,can lock again Low noise,long lifetime,low power consumption Various opening methods:access control,intercom,remote control,RFID card,key etc Voltage:12-18VDC Can not open the lock when separate the magnetic sensor,make it safer Reverse voltage protection, short-circuit protection, sound light alarm when the hall fault Technical Parameters The length of extended latch ≥20mm Voltage:DC12V±10% Unlocking current <300mA Standby current 16mA Unlocking time <1S
Application: Specifications: 9.Note: Opening time must set to 0 second when connecting with electric controlled lock. Otherwise electric bolt lock would be Burned Down. Feature: Specification:
Technical Information:
Specification:
Specifications: |
|---|---|
| SKU | 32812126292 |
| Weight | 1.000000 |
| selling_potential | 3 |
| With Built-in Battery | No |
| Condition | New |
