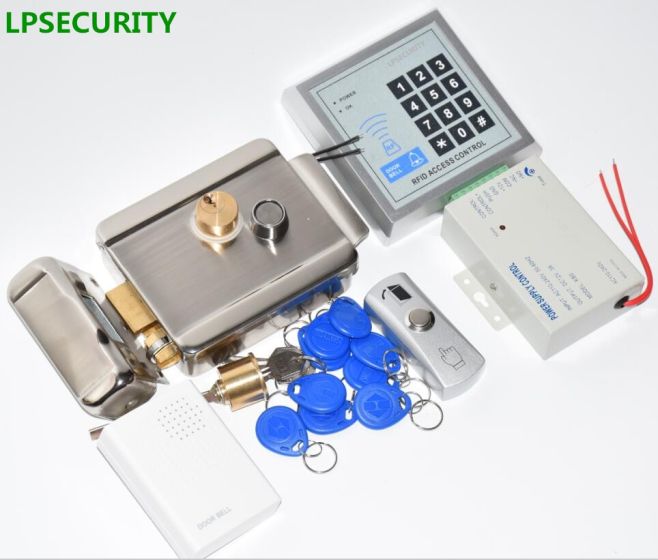

LPSECURITY RFID Door Access Control System Kit With Lock RFID keypad+power+electric gate lock+door

SKU
32843069730
Special Price US$37.00 Regular Price US$41.11
Out of stock
Overview

LPSECURITY RFID Door Access Control System Kit With Lock RFID keypad+power+electric gate lock+door exit button+15 key tags...

 Electric Rim lock kit

7





We could deliver the goods to all countries in the world and if the system does not support your nation delivery, please contact the seller to change it for you.



 Function

·With electronic control, keys, or manually open

·High insurance, high security features

·low noise,low consumption,long life ,convenient installation.

·no function of inside opening for single lock, releasing with opening knob or key



Feature

·Extension length of dead bolt: 13mm
·Voltage: 12VDC
·Working current:1.5-3A
·Consumption power:10W
·Sensitivity: 1s
·Service life: 300,000 times
·Regulated and filtered voltage:500VDC(one minute)
·Locking method: by collision
·no function of inside opening for single lock, releasing with opening knob or key
·Surface Temp: ≤+20°C
·Operating Temp: -10~+55°C(14-131F)
·Suitable Humidity: 0~90%(non-comdensing)
·Weight: 1.3kg

05 (3)



  • Classical Appearance with useful function
  • Professional Design and Quality for Home and Office High Security
  • Working voltage: DC 12V
  • RFID Card Capacity:500 cards,a "Personal PIN" goes alone with each card
  • Lock relay time:3 seconds
  • Card read distance:5-50 mm
  • RF card type: EM or EM compatible card
  • Working temperature: -10~70 C
  • Door Bell Option
  • Door Open options (admin user selectable) : Card (Key Tag) & Password/ Card (Key Tag) Only/ Password Only
  • Dimension: 11.8cm*11.8cm*2.3cm( approx)

QQ20171019085427

Power Supply:



The power to adopt import electronic components, the use of international advanced level of technology, its anti-interference ability, stable and reliable. The scope of application of the power applied to a variety of building intercom, access a variety of import and export controls, particularly applicable to a variety of electric locking drive.



Can reduce the load of access controller, save wiring to reduce the hidden trouble

Set NC / NO outputs, can control various types of electric locks

Based delay control circuit, lock time can be in 0-15 seconds

The circuit board has remote control port.



Specification:



Input Voltage: AC 110~220V  50~60Hz

Output Voltage: DC 12V 3A

Outer Dimensions: 120x 95 x 38mm

QQ20171205174032

611T31qYVOL._SL1500_

ttztty











Please confirm the door lock installation from the following pic when buy it

er

View it from the inside of the room
