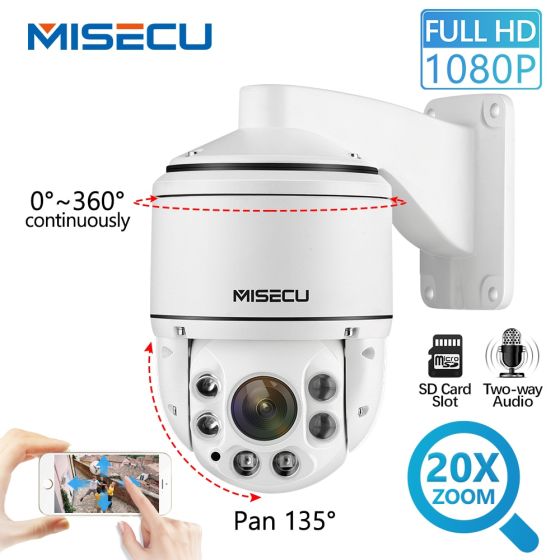

MISECU 1080P PTZ IP POE Camera Outdoor SONY IMX323 Onvif 20X ZOOM Mini Speed Dome Camera 2MP H.265
MISECU 1080P PTZ IP POE Camera Outdoor SONY IMX323 Onvif 20X ZOOM Mini Speed Dome Camera 2MP H.265 Audio P2P Security Camera ...
4”HD IP POE Intelligent PTZ Camera 1080P Series （20X）
360 Degree View
Supports Two Points Between Cruise
Audio Record
Supports Two -Way Audio
IP66 Waterproof
Aerospace Grade Metal Shell
30X (20X Optical + 10X Digital ZOOM)
Anytime, Anywhere To See Where You Want To See
Night Vision Effect
6Pcs Array LED Lights, IR 100M
Support P2P APP "HiSee"
No Matter How Far Away Can See
High light
HD-IP 2.0M-pixel 1080P
Solution：Hi3516E+Sony CMOS IMX323
Support H.265
Lens： 20X Optical zoom, 4.7- 84.6mm
IR：4PCS array LEDS+2 PCS Laser LEDs, IR distance 100m
P2P：HiSee for free
Product Description
PTZ camera feature
6pcs High quality array LEDs, auto-switch to long/middle/close distance focus,80M IR distance.
High performance encoding scheme with 1080P CMOS image sensor for clear and dynamic image.
Support 5A：Auto white balance、Auto focus、auto exposure、Auto noise reduction、Auto contrast enhancement
Full compatible with ONVIF protoco
High precision motor, precise control, smooth motion, stable rotation.
IP66 waterproof
Built-in surge and lightning protection device, effectively preventing 4000V instaantaneous current.
Support POE
Support Audio in
Support DC out for Mic
Adopt high performance platform, stable and reliable. support dual stream, H.264 video compression. support multiple levels of video quality configuration Infrared light and magnification range matching algorithm based on IR distance, brightness and angle for best image quality.
|
|
PTZ camera parameter |
|
Model |
406M-NHP-BGH5 |
|
Camera |
|
|
Image Sensor |
1/2.8" CMOS |
|
Minimum Illumination |
Color: 0.05Lux, B/W: 0.005Lux,0 Lux with IR |
|
3D NDR |
Support |
|
WDR |
Support |
|
Electronic Shutter |
1/1s—1/30000s, AUTO |
|
Day Night Mode |
AUTO ICR Color to B/W |
|
Focal Length: |
4.7-94mm，20X Optical Zoom, （F1.6 to F2.7） |
|
Zoom Speed |
Approx.4s(Optical Wide~Tele) |
|
Angle of View: |
55.4-2.9 degree(Wide-Tele) |
|
Resolution |
1920(H)x1080(V) |
|
Main Stream |
(1920×1080)、(1280×960)、(1280×720) |
|
Sub Stream |
(704×576)、(640×480)、(648×360) |
|
Video Compression |
H.265，H.264，MJPEG |
|
Network protocol |
HTTP ,FTP,SMTP,UPnP,SNMP, DDNS,NTP,RTSP,RTP,TCP，DHCP, PPPoE |
|
Interface protocol |
ONVIF 2.4 |
|
PTZ Control |
|
|
IR Distance |
100m |
|
Horizontal Range |
0°～360° continuously |
|
Vertical Range |
-2°～90° |
|
Horizontal Speed |
0.05°～40°/s |
|
Vertical Speed |
0.05°～40°/s |
|
Max Speed |
40°/S |
|
Preset |
256 |
|
Patrol scan |
4pcs（10 preset for each） |
|
L/R Scan |
1pc |
|
Horizontal Scan |
1pc |
|
Power-off memory |
Support |
|
PARK Action |
Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
|
Watch position |
Support |
|
Wide angle speed limit |
Focus / speed automatic matching function |
|
POE function |
|
|
POE supply voltage |
DC48V |
|
POE supply PIN |
1,2(+)、3,6(-) / 4,5(+)、7,8(-) Auto adaptation |
|
General |
|
|
Power |
DC12V/2A |
|
Consumption |
＜15W |
|
work environment |
temperature ：-20～60℃；humidity＜90% |
|
Protection level |
IP66 waterproof，4000V lightning protection |
|
GW |
2.15KG |
How We Pack :
1x 1080P 20X optical IP PTZ camera
1x power (EU/UK/AU/US)
1x powerproof cap
1x warranty Card
| Description |
4”HD IP POE Intelligent PTZ Camera 1080P Series （20X）
360 Degree ViewSupports Two Points Between Cruise
Audio RecordSupports Two -Way Audio
IP66 WaterproofAerospace Grade Metal Shell
30X (20X Optical + 10X Digital ZOOM)Anytime, Anywhere To See Where You Want To See
Night Vision Effect6Pcs Array LED Lights, IR 100M
Support P2P APP "HiSee"No Matter How Far Away Can See
High light HD-IP 2.0M-pixel 1080P Solution：Hi3516E+Sony CMOS IMX323 Support H.265 Lens： 20X Optical zoom, 4.7- 84.6mm IR：4PCS array LEDS+2 PCS Laser LEDs, IR distance 100m P2P：HiSee for free
Product Description PTZ camera feature 6pcs High quality array LEDs, auto-switch to long/middle/close distance focus,80M IR distance. High performance encoding scheme with 1080P CMOS image sensor for clear and dynamic image. Support 5A：Auto white balance、Auto focus、auto exposure、Auto noise reduction、Auto contrast enhancement Full compatible with ONVIF protoco High precision motor, precise control, smooth motion, stable rotation. IP66 waterproof Built-in surge and lightning protection device, effectively preventing 4000V instaantaneous current. Support POESupport Audio inSupport DC out for MicAdopt high performance platform, stable and reliable. support dual stream, H.264 video compression. support multiple levels of video quality configuration Infrared light and magnification range matching algorithm based on IR distance, brightness and angle for best image quality.
How We Pack :
1x 1080P 20X optical IP PTZ camera 1x power (EU/UK/AU/US) 1x powerproof cap 1x warranty Card
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
