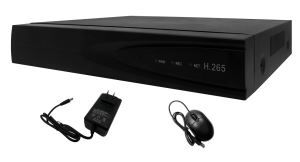

8CH IP Network NVR Recorder for CCTV Security PoE H.265+ 4K 1080P

SKU
SNH-TS08P
Overview

The most easy-to-use ,popular and commercial 8 channel H.265+ PoE NVR;specially design for store, small warehouse, office and family,access HD IPC,provide preview,recording, forward and so on functions

Orders

Specification

SNH-TS08P

1 Disk 8CH H.265+ PoE NVR

1

System  Structure

Embedded LINUX design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP network video access.

Main processor Hi3536C;

2

Video Input

HD IPC access, each channel support dual stream access, support auto search,add,recording,preview and without debugging

Access bandwidth 64Mbps;

3

Video Output

1channel HDMI output,

support 4K(3840×2160)/30Hz,1920×1080,1440×900,1366×768,

1280×1024,1280×800,1024×768 resolution output show;

1 channel VGA output,homology with HDMI,support 1920×1080,1440×900,1366×768,

1280×1024,1280×800,1024×768 resolution output show;

Support Seetong client preview,APP preview and seconds connection

1/2/4/6/8/9 pictures real time preview;

4

Video Capacity

Support H.265+/H.265/H.264decoding;

Recording: 2CH*4K,8CH*5MP@Max bandwidth 64Mbps;

Video recording resolution:720P/960P/1080P/3MP/4MP/5MP

NVR local recording playback support 4CH 2MP,2CH 5MP;Seetong client recording playback support 4 channels.

5

Audio

Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Seetong client audio and video preview and playback;

6

Storage

1*SATA hard disk interface,support 500GB~8TB capacity;

Support schedule record, motion detection linkage record;

Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup;

7

User

Local maximum support for 16 users;

8

Network Interface

1*RJ45 Ethernet interface, support 10/100M self-adaption;

support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP and so on protocols;

9

PoE  Interface

8 PoE ports,support 802.3af standard,single port maximum access to 30W device, 4 prot total power does not exceed 110W (DC +48V/3A adapter),support over length cable(220 meters);

10

Peripheral  Interface

2*USB2.0 interface(rear); support for the mouse, USB upgrade, import and export;

11

Front Panel

1* power,1*record,1*network indicator light;

12

Business Functions

Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software; support seetong cloud service;

13

Working Temperature

-10℃~+55℃

14

Working Humidity

10%~90%

15

Others

DC +48V/3A power input, host power consumption≤5W(No disk),size 258*210*42mm (W*D*H), weight 769g;
