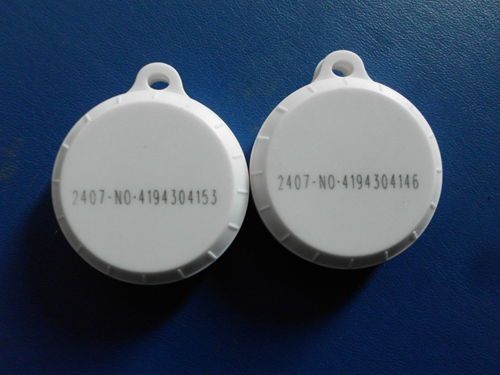

NEW RFID Active Tag 2.4G Long Range Key Ring Type Built-in Battery Rugged Waterproof

The main features

• The labelIDNo.8Bytes;
• A read-only type;
• Can replace the battery;
• Waterproof level:IP65
• Label long life;
• Wide working temperature range.
• Read distance;

Technical parameters

• Operating frequency:2.4 GHz to 2.5 GHz (Factory Settings);
• Work style: active;
• Transmission power: less than1 mw(0 DBM)(Factory Settings);
• Working voltage:3 v(1sectionCR2450);
• It can replace the battery;
• static(standby)Working current:< 1 ua;
• Maximum working current (transmitting) :The < 15 ma;
• Launch time:0.25 ms;
• Read: read only;
• Read and write distance:0-250m
• Work experience:5Years (theoretical);
• Working voltage:3 v;
• Check out time:1 s
• Impact capability: have strong ability of anti collision, able to read the card number at the same time> 2000Zhang;
• Working temperature:- 25 ~ 70 °
• Storage temperature:- 40 ~ 85 °
• Working humidity: less than95%
• Dimension: the diameter35 mm x 10 mm

The main application

Tunnel positioning of check on work attendance management system

Mine personnel positioning of check on work attendance management system
