New RFID UHF PCB Inlay Tags at lowest $0.5 EPC 96-bit ISO 18000 On-metal 36x13x3mm

In stock

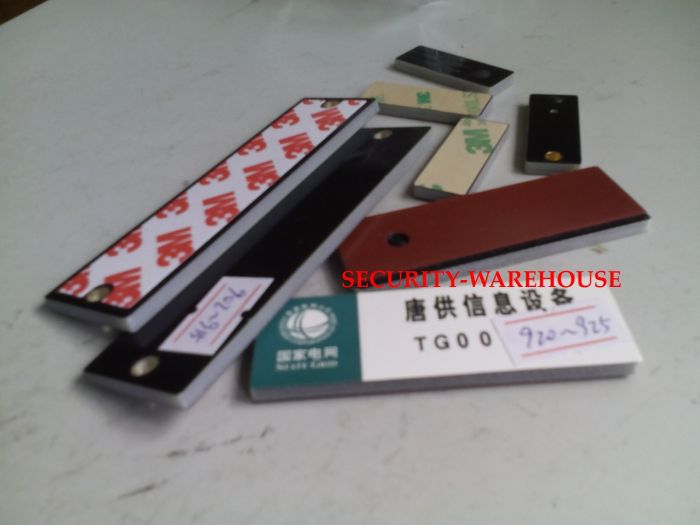

RFID UHF PCB Inlay Tags EPC ISO 18000 On-metal 36x13x3mm

What is PCB-based RFID tags?

Within the electronics industry, UHF RFID label tags are commonly applied to a piece of
equipment once assembly is complete. A new approach allows implementation of the
RFID tag directly on the printed circuit board (PCB) early in the production process.

From the manufacturers’ perspective, implementation of a PCB RFID tag can provide
management with tracking information as specific as the individual printed circuit board
to better identify where the product is, where this product is stored and detect
bottlenecks within the manufacturing process. A properly executed RFID system can
greatly improve efficiencies, control costs and streamline overall production processes.
Additional benefits of applying the RFID tag at the PCB level is to assist in inventory
control, aftermarket service, warrantee returns and counterfeiting prevention.

Manufacturers are looking for a RFID tracking method that provides the following

  • Item level tracking
  • Capable of implementing at the start of the PCB assembly
  • Functional at the start of the PCB assembly
  • Implementation of RFID should not represent a bottleneck
  • Compatible with current information systems
  • Provides privacy and security protection
  • Implementation cost should be low enough to provide positive return on
  • investment
  • Easy to modify for different assemblies and production lines
  • Capable of withstanding electro static discharge (ESD)
  • Functional within finished goods
  • Compatible across all industries for supply chain management
Advantages of PCB tags over other packaging:
  • Global acceptance
  • Convenient package size
  • Flexible mounting process options
  • Readability from finished product
  • Very high temperature tolerance
  • Very high stability and reliability
  • Cost effective


  • Independent R&D team. Completely self-owned technology.
  • Up to 0-12m reading distance (2x of regular metal tag)
  • Frequency Hopping working mode, with strong anti-jamming ability
  • Passive UHF type, cost-effective solution
  • Heat-resistant engineering material ABS. High quality apply to kinds of severe environment


  • Warehousing Management / Equipment Inventroy
  • Large Fixed-asset Management
  • Manufacturing Process Tracking
  • Express / Logistic / Seaport containers Mangement System
  • IT asset management tracking, Item finding
  • Supply Chain Control
  • Security
  • Electrombile/Car Mangement



EPC global C1 Gen2 / ISO 18000-6C


920-925MHz, 902-928MHz, 865-868MHz Optional

Working Mode


Modulation Mode



Impinj Monza 4QT

Packaging Material


Read Range

Fixed reader: 0-8 m, Handheld: 0-5m

On Metal or Balanced

On Metal and Balanced




8 - 20g (depends on size)

User Memory

TID : 64 bits, EPC ≥ 96 bits, User : 512 bits

Data Rate

Forward: 40-160kbits/s, reverse:40-640kbits/s

Data Protection

Password modify, lock, kill


>10 years, Wipe more than 100000 times

Ambient Temperature

-40°C ~ 80°C

IP Rating


Shock and Vibration

MIL STD 810-F ; BS EN 60068-2


With self adhesive (3M) or screws


60 months



More Information
Weight 0.010000
selling_potential 4
With Built-in Battery No
Condition New
