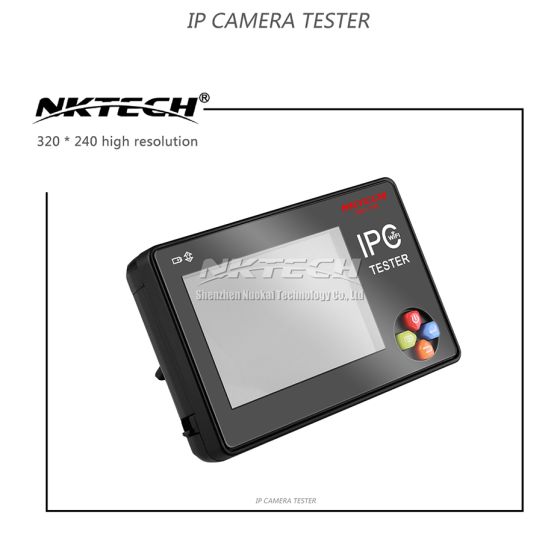

NKTECH IP Camera CCTV Tester NK-795 Security Monitor Analog CVBS Cameras Test WiFi 4K 3.5" TFT Touch

Features:

• (NKTECH NK-795) 3.5 inch 480 x 320 resolution touch screen IP and Analog (Not HD) tester, compatible with more than 80 camera models test, such as Dahua, HIKVISION, and ACTI/Mobile apps of the IP camera don\'t support CVI TVI SDI AHD Cameras.
• Built-in WiFi, NK-795 can receive image from wireless camera. 10/100M Lan Port, H.265/H.264/4K video display via mainstream. Wrist design, easy to carry and operate.
• Self-installing Android APPs, Please just install APPs on cameras to keep the system stable. Built-in 3000mAh high capacity lithium battery, 8 hours standby.
• IP discovery: Rapid Onvif, auto login and view video, creating testing report. ONVIF PTZ control, video record and playback, screen snapshot 4x zoom.

• Screen capture: long press the key "enter", can capture screen interface and save it in any time.
• 4K H.264 andamp, H.265 display image by mainstream.
• IP and analog testing at the same time.
• App tools (Calculator, Media Player etc).
• Network port: 10/100M auto-adapt, RJ45.
• WIFI: Built in WIFI, rate 150M, receive the image from the IP camera.
• IP camera test: For ONVIF, ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, For Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, customizable acceptable .
• Video IN: 1channel Video BNC IN, PAL/NTSC.
• Zoom image: Analog camera image 4x zoom, and IP camera image 4x zoom and move.
• Snapshot, video record and playback: Capture the video image displayed and save as a JPEG file. The recorded files can play directly via Media player or under the function of "Playback".
• Power output: Output DC12V/1A power for camera.
• Audio test: 1 channel audio signal input, test whether the sound normal, can save the record.
• PTZ control: Support RS232/RS485 control, rate 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan etc.
• Data monitor: Captures and analyzes the command data from controlling device (RS185/RS232).
• Network test: IP address scan, link monitor, Ping, find out the connected IP camera or the other network equipment IP address quickly.

Power supply:

• Power Adapter: DC 5V/1.5A.
• Battery: Built-in 3.7V 3000mAh Lithium polymer battery (Included).
• Rechargeable: After charging 3-4 hour, working time lasts 8 hours.
• Parameter:
• Auto off: 5-30 mins.
• Product size: 121 x 36 x 81mm.
• Weight: 300g.

Package Included

• 1 x NKTECH NK-795 IP Camera Tester.
• 1 x English User\'s Manual.
• 1 x RS485 Data Cable.
• 1 x Power Adapter.
• 1 x Carrying Bag.
• 1 x Power Cable.
• 1 x Audio Cable.
• 1 x Video Cable.
• 1 x BNC Cable.
