2X600kg (1200Lbs) 12V or 24V Magnetic Double Electrical Door Lock with Signal

2x600kg(1200Lbs) 12V or 24V Magnetic Double Electrical door Lock with Signal
Overview:
NE-600DS double door magnetic lock,with the door status signal output and led indicate,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.
Function:
1.With the door status signal output,passed 1200lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.8.Through the European CE and ROHS, MA certification in China.
Specification:
Holding Force
600kg(1200Lbs)*2
Lock Status Indicator
Double color LED,
Red and Green,
Lock Status Sensors
YES
Rated Operating Voltage
12/24VDC
Current consumption
12V/600mA 24V/300mA
Optional Functions
Relock Delay Timer,Buzzer
Surface finish for magnet
Zinc plated
Surface finish for armature plate
Zinc plated
Ambient temperature in °C
-10~+55ºC(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)
265Lx71Wx40H(mm)
Armature Plate Dimensions(L x W x D)
185Lx60Wx13H(mm)
Weight in kg
4.5kg
CE-mark for building
Yes
Rohs-mark for building
Yes

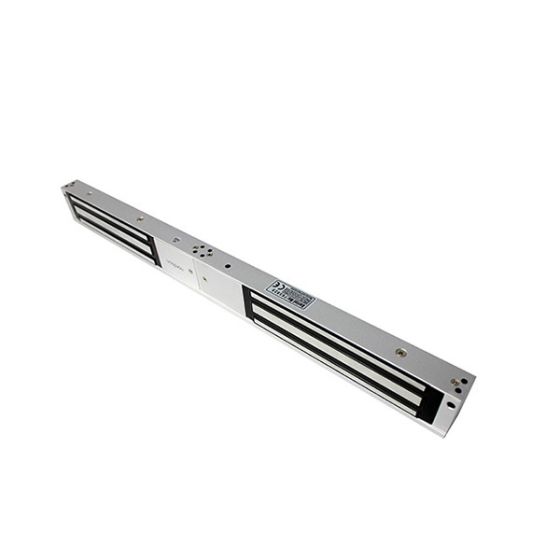

PHOTO SHOW:
Model NO. : NE-600DS Double Electrical door Lock
Holding Force : 2X600kg(1200lbs)
Voltage : DC12V or DC24V
Timer & Buzzer Customization Available : Yes
Material : Aluminum Alloy
Surface Finish for Magnet : Zinc Plated
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Lock Status Indicator : Double Color LED,Red and Green,
Magnets Dimensions(L X W X D) : 265lx71wx40h(mm)
Armature Plate Dimensions(L X W X D) : 185lx60wx13h(mm)
Weight : 9.0kg
Transport Package : Neutral Packing
Specification : CE, ROSH
Trademark : Nordson
Origin : Shenzhen, China
HS Code : 123456
Production Capacity : 5kg
Holding Force : 600kg(1200Lbs)*2
Lock Status Indicator : Double color LED,Red and Green,
Lock Status Sensors : YES
Rated Operating Voltage : 12/24VDC
Current consumption : 12V/600mA 24V/300mA
Optional Functions : Relock Delay Timer,Buzzer
Surface finish for magnet : Zinc plated
Surface finish for armature plate : Zinc plated
Ambient temperature in °C : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 265Lx71Wx40H(mm)
Armature Plate Dimensions(L x W x D) : 185Lx60Wx13H(mm)
Weight in kg : 4.5kg
CE-mark for building : Yes
Rohs-mark for building : Yes
