Five-Year Warranty Pure Copper Coil 180kg/350lbs Single Door Fail-Safe Power to Lock Door Lock

Five-year warranty pure copper coil 180kg/350lbs Single door Fail-safe Power to lock door lock
Introduction:

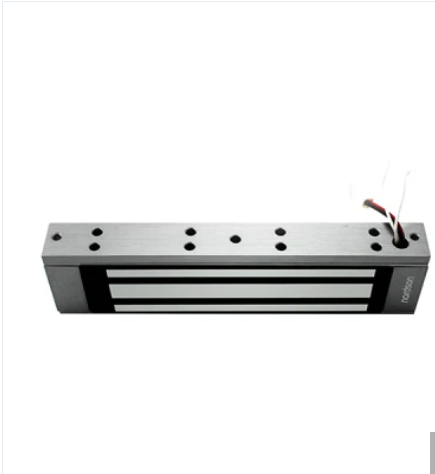

NE-180S,single door small magnetic lock, with the door state signal feedback ,specially used to normal glass door,wodden door,metal door,fire doors, small doors.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
specification:
Holding Force
180kg (350lbs)
Lock Status Sensors
NO/NC/COM
Optional Functions
LED,Relock Delay Timer,Buzzer
Rated Operating Voltage
12/24VDC
Current consumption
500mA / 12V or 250mA / 24V
Surface finish for magnet
Zinc plated
Surface finish for armature plate
Zinc plated
Ambient temperature in °C
-10~+55ºC(14-131F)
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)
170L*35W*21H(mm)
Armature Plate Dimensions(L x W x D)
130L*33W*9.3H(mm)
Weight in kg
1.1kg
CE-mark for building
Yes
Rohs-mark for building
Yes
Function:
1.With the door state signal feedback,passed 350lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
8.Through the European CE and ROHS, MA certification in China.
Model NO. : NE-180 door lock
Optional Functions : LED,Relock Delay Timer,Buzzer
Rated Operating Voltage : 12/24VDC
Current Consumption : 500mA / 12V or 250mA / 24V
Surface Finish for Magnet : Zinc Plated
Transport Package : Neutral Packing
Specification : CE, ROHS, SGS
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000PCS/Month
Holding Force  : 180kg (350lbs)
Lock Status Sensors  : NO/NC/COM
Optional Functions  : LED,Relock Delay Timer,Buzzer
Rated Operating Voltage  : 12/24VDC
Current consumption : 500mA / 12V or 250mA / 24V
Surface finish for magnet : Zinc plated
Surface finish for armature plate : Zinc plated
Ambient temperature in °C  : -10~+55ºC(14-131F)
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D) : 170L*35W*21H(mm)
Armature Plate Dimensions(L x W x D) : 130L*33W*9.3H(mm)
Weight in kg : 1.1kg
CE-mark for building : Yes
Rohs-mark for building : Yes
