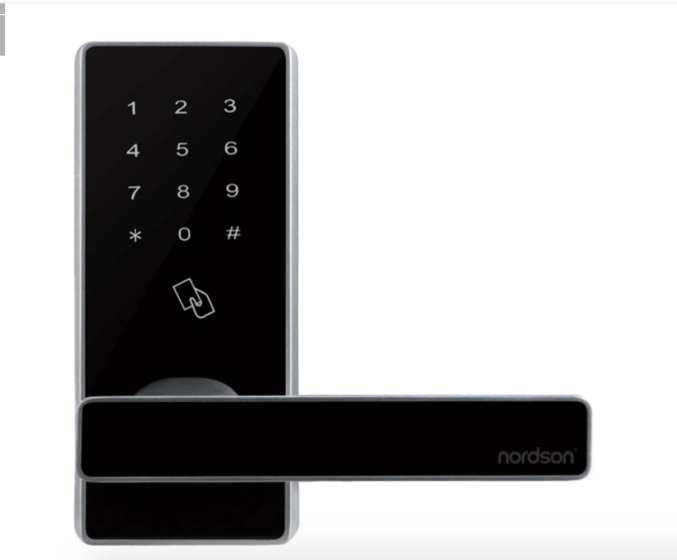

Zkteco Smart Phone Standard Single Latch European Standard Keypad Door Lock

Zkteco Smart Phone Standard Single Latch European Standard keypad door lock
Overview :
Function
:
• Various access for your convenience - password/
card/key/smart phone
• Enhanced security by random password for code access
• Idle handle design to prevent from forcible entry
• Voice guide for easier and more convenient use
• Voice volume is adjustable, includes mute mode
• Smart alarm for low battery & illegal operation
• Normal open mode
• External terminals to draw back-up power from
a 9V battery
• American standard single latch for easy installation and replacement - DL30B
• German standard mortise with one latch and one deadbolt - turn handle upward to lock the deadbolt for more security - DL30DB
Specification :
Model
DL30B
DL30B-MF
Material
Zinc Alloy
Password capacity
100
Card capacity
100
Card Module
ID
Mifare
Wireless Module
BLE4.0
Power Supply
4×AA Alkaline battery (NOT supplied)
Door Thickness
30-38 mm (standard)
39-46 mm (standard)
47-54 mm (standard)
55-60 mm (optional)
Dimensions
Front: 69(W)× 155(L) ×35(D)
Back : 69(W) ×155(L) ×25(D)
Model NO. : DL30B keypad door lock
Material : Zinc Alloy
Password Capacity : 100
Card Capacity : 100
Card Module : ID / Tmifare
Wireless Module : BLE4.0
Power Supply : 4×AA Alkaline Battery (Not Supplied)
Door Thickness : 30~60mm
Dimensions : Front69(W)*155(L)*35(D)
Transport Package : Color Box
Specification : 69(W)× 155(L) × 35(D)
Trademark : nordson
Origin : Guangdong
Production Capacity : 50000 Piece/Month
Model : DL30B
Material : Zinc Alloy
Password capacity : 100
Card capacity : 100
Card Module : ID
Wireless Module : BLE4.0
Power Supply : 4×AA Alkaline battery (NOT supplied)
Door Thickness : 30-38 mm (standard)
Dimensions : Front: 69(W)× 155(L) ×35(D)
