Outdoor 1080P IP Camera 2MP H.264 10X ZOOM Waterproof CCTV PTZ Speed Dome Camera IR-CUT Onvif P2P Mo

SKU

32808886925

Special Price US$165.33 Regular Price US$183.70

In stock

Overview

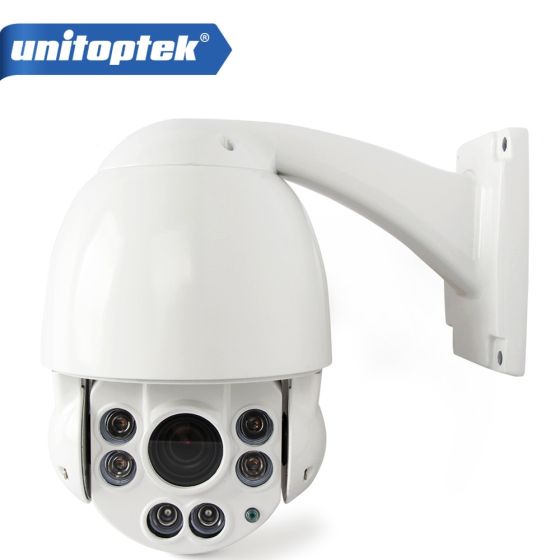

Outdoor 1080P IP Camera 2MP H.264 10X ZOOM Waterproof CCTV PTZ Speed Dome Camera IR-CUT Onvif P2P Mobile Security Camera...

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

tdoor 1080P IP Camera 2MP H.264 10X ZOOM Waterproof CCTV PTZ Speed Dome Camera IR-CUT Onvif P2P Mobile Security Camera

BT-HD51F_01 BT-HD51F_02 BT-HD51F_03 BT-HD51F_04 BT-HD51F_05 BT-HD51F_06 BT-HD51F_07 BT-HD51F_08

BT-HD51F_09 BT-HD51F_10 BT-HD51F_11 BT-HD51F_12 BT-HD51F_13 BT-HD51F_14

Keywords: 1080P PTZ IP CAMERA ,10X ZOOM PTZ CAMERA,Speed Dome Camera 2MP

Feature:

* 4 Inch Mini Size, waterproof IP66;

* 1080P, 2.0 MP, resolution 1920x1080

* 1/2.8 CMOS;
* 10x optical zoom(5~50mm Lens);

* Support ONVIF, convenient to connect to third party;

* 6pcs Array LED Lights, Effective distance up to 50m

* Rotation Range : Horizontal 0°~360° unlimited rotation; Vertical 0°~90°

* Rotation Speed: Horizontal 60°/S; Vertical 40°/S

* Supports 360 degree automatic scanning ; Support two points between cruise;

* Support preset point; Rotational speed can be adjusted

* Day/Night Mode Auto-Switch

* IP66 Waterproof Metal Casing

* Weight: 3Kg

* Mobile Phone View APP: CloudLens

PTZ specifications:

Model: HD51F-2MP-10X
Camera
Sensor	1/2.8" progressive scan CMOS
Effective pixels	1080P (1080X1920)
Total pixels	2.0 Megapixels
Output Pixel	1920*1080@25/30fps
Lens
Lens	f=5mm~50mm
Zoom	10x Optical zoom
Iris	F1.6~F2.8
View of Angle	H：51.8°（W）～5.86°（T）; V：39.1°（W）～4.4°（T）
Min. illumination	0 Lux (IR LED On)
D/N	IR-CUT
Digital noise reduction	3D Digital noise reduction
Network
Compression Format	H.264/ Mjpeg
Compression Rate	32 Kbps~16Mbps
Smart Alarm	Motion detection, Occlusion & Memory error alarm
Support Protocols	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP
Support Protocols	SNMP,FTP,802.1x,QoS,HTTPS (SIP,SRTP,IPv6)
ONVIF	Support
Interface	10M / 100M mbps Ethernet (RJ-45)
Management	IE and CMS (supplied with the camera)
Mobile phone monitor	P2P
Dome
Pan Speed	0.02 - 60 degree/s
Tilt Speed	0.02 -40 degree/s
Pan Range	0-360 degree
Tilt Range	0-93 degree
Auto Flip	Horizontal 180 degree, Vertical 93 degree
360 degree Scan	1-9 Grades setting available
A-B Scan	User programmable
Preset Points	220
Go to Preset Speed	120 degree/s
Guard Tours	4 groups
Guard Points	Max.16 points, dwell time user selectable
Pattern Scan	4 pcs
Pattern Scan Record	Max.15 minutes, max.512 commands
Time Scheduling Function	8 tasks
Communication Protocol	Pelco-D, Pelco-P
Communication	RJ45
Baud Rate	1200/2400/4800/9600bps
Privacy Mask	Support
IR parameters
Auto Control IR LED	PWM (Pulse Width Modulation)
Support ambient light detection	IR illumination on 1-15 grades selectable;
LEDs	6pcs
IR distance	Up to 50m
General
Operating temperature	-40°~ +60°
Heater and Blower	Auto temperature control
Humidity	≤95% Non Condensing
Power	DC12V
Consumption	< 25W
Lightning Protection	Transient voltage 6000V
Weight	3 kgs ( N.W)
Size(W×D×H)(mm)	225245200
Waterproof	IP66

Packing list:

1 x 4 Inch mini 2MP PTZ IP Camera

1 x User Manual

1 x CD

1 x Power adapter

1 x Camera Bracket(Standard Wall)
