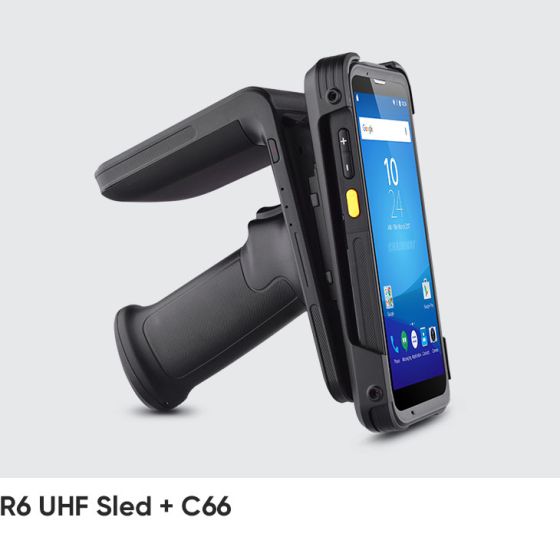

R6 UHF RFID Sled Reader

Special Price US$646.80 Regular Price US$718.67

In stock

Overview

Powerful UHF Reading and Writing

Chainway R6 is specially designed for a complete one-piece solution with smart phone / PDA. Paired with Android / IOS-based smart phone and terminal, it can be easily transformed into a professional data collection device. Built with Impinj E710 / R2000, it features powerful UHF reading and writing that enables read distance of over 10m outdoors. The RFID reader is comfortable in hand, easily detached, and can fulfill tasks in power patrol inspection, apparel cycle-counting, warehousing, asset management, fleet management, finance, etc.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Physical Characteristics
Dimensions	143 x 76 x 140 mm / 5.63 x 2.99 x 5.51 in.
Weight	Sled Reader: 483g / 17.04oz. Sled Reader with Mobile Case: 453g / 15.98oz. Sled Reader with Customized Holder: 500g / 17.64oz.
Power	Battery specification:5200 mAh Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable)
Buzzer	Support
Interfaces	USB 3.0 Type-C
Indicator LED	Power, Work, Bluetooth
Size of adapted phone	Sled Reader: Width 68~80 mm, thickness ≤ 22 mm Others: Based on phone case or holder
Product Material	Plastic
Colour	Black

Communication
Bluetooth	Bluetooth 4.0, BLE

Performance
MCU	Cortex-M3 72MHz
Storage	20000 tags and 400 barcodes (optional)

User Environment
Operating Temp.	-20℃~+50℃
Storage Temp.	-40℃~+70℃
Humidity	5%RH - 95%RH non condensing
Drop Specification	Multiple 1.5 m / 4.9 ft. drops to concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP54 per IEC sealing specifications
ESD	±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning
2D Imager Scanner	SE2707
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional

UHF RFID
Engine	CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
Frequency	920-925 MHz / 902-928 MHz / 865-868 MHz
Antenna	Circular Polarized Antenna (3dBic)
Power	1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate	900+ tags/sec
R/W ranges	Up to 13m(open outdoors, Impinj MR6 tag)
Note	Ranges and rates depend on tags and environment
