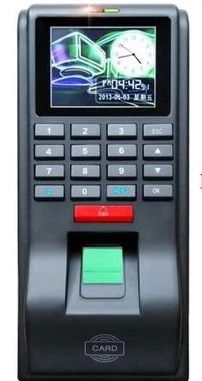

RFID 125KHz Based Access Control + Time Attendance + Fingerprint + PIN +Keypad TFT Color Display Standalone TCP/IP

SKU
H15U
Special Price US$56.27 Regular Price US$62.52
In stock
Overview

RFID 125KHz Based Access Control + Fingerprint + PIN with Keypad TFT Color Display

Product Features

Fingerprint swipe password open door with screen can also be used as standalone machine

1, Intelligent autonomous fingerprint algorithm, environment, climate change and an injured finger,

Peeling of fingerprint recognition improved, achieving full State fingerprint identification time is less than 0.8 Second;

 2, Multi-purpose identification method, you can set the fingerprint+Password+Proximity cards, such as different combinations of identification.

3, Can be completely offline operation, Use U Computer equipment can be completed each setting,Without the need to connect the machines;

4, Appearance using acrylic panels, elegant shell UV Material handling and smooth texture, hull with rubber paint technology, feel cotton slip, no hard feeling.

5, You can add-insWiegand26/34 Read head can also be output Wiegand26 Read the signal head.


Technical Specification:



 Machine dimensions

 183mm*84mm*32mm

 Product color

 Silver

 Screen display

 2.4 Inches TFT High definition color display

 Fingerprint scanner

 High hardness and optical fingerprint scanner

 Authentication methods supported

 Fingerprint, card, password/Rear combined

 Language

 Chinese(Simplified, traditional), English

 Refused the truthful (FRR)

 ≤1%

 Recognition rate(FAR)

 ≤0.0001%

 Reaction time

 ≤0.8Second

 Than the way

 1:N And1:1

 Authentication method

 Fingerprint. Password .IDCard .

 Fingerprints storage capacity

 1000 Gold

 Maximum number of verification record

 100000 Parts

 Means of communication

 USB,RS485, TCP/IP

 UDownload/Upload function

 Have

 Intelligent learning

 Have

 Record inquiry

 Have

 Access control function

 Time period, Door control, Support anti-submarine capabilities

 Wiegand input

 Support WG26/34

 Dual fingerprint authentication

 Support

 Verify valid function

 Support

 Voice prompts

 High-definition, human voice

 Name display

 Name in English

 Operating humidity

 20-80%

 Working temperature

 -10-60°

 Working voltage

 DC12V



More Information
Product Name RFID 125KHz Based Access Control + Time Attendance + Fingerprint + PIN +Keypad TFT Color Display Standalone TCP/IP
Description

Product Features

Fingerprint swipe password open door with screen can also be used as standalone machine

1, Intelligent autonomous fingerprint algorithm, environment, climate change and an injured finger,

Peeling of fingerprint recognition improved, achieving full State fingerprint identification time is less than 0.8 Second;

 2, Multi-purpose identification method, you can set the fingerprint+Password+Proximity cards, such as different combinations of identification.

3, Can be completely offline operation, Use U Computer equipment can be completed each setting,Without the need to connect the machines;

4, Appearance using acrylic panels, elegant shell UV Material handling and smooth texture, hull with rubber paint technology, feel cotton slip, no hard feeling.

5, You can add-insWiegand26/34 Read head can also be output Wiegand26 Read the signal head.


Technical Specification:



 Machine dimensions

 183mm*84mm*32mm

 Product color

 Silver

 Screen display

 2.4 Inches TFT High definition color display

 Fingerprint scanner

 High hardness and optical fingerprint scanner

 Authentication methods supported

 Fingerprint, card, password/Rear combined

 Language

 Chinese(Simplified, traditional), English

 Refused the truthful (FRR)

 ≤1%

 Recognition rate(FAR)

 ≤0.0001%

 Reaction time

 ≤0.8Second

 Than the way

 1:N And1:1

 Authentication method

 Fingerprint. Password .IDCard .

 Fingerprints storage capacity

 1000 Gold

 Maximum number of verification record

 100000 Parts

 Means of communication

 USB,RS485, TCP/IP

 UDownload/Upload function

 Have

 Intelligent learning

 Have

 Record inquiry

 Have

 Access control function

 Time period, Door control, Support anti-submarine capabilities

 Wiegand input

 Support WG26/34

 Dual fingerprint authentication

 Support

 Verify valid function

 Support

 Voice prompts

 High-definition, human voice

 Name display

 Name in English

 Operating humidity

 20-80%

 Working temperature

 -10-60°

 Working voltage

 DC12V
