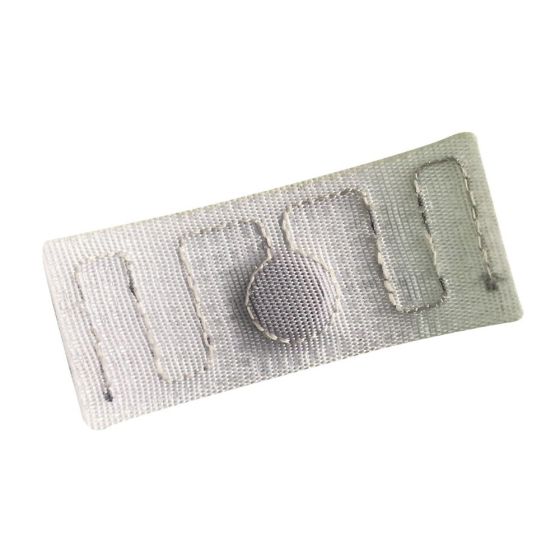

RFID Launtry tag UHF Long Reading Range soft fabric for clothes Control -5pcs

Product Details

1.Nylon Rfid laundry tag Laundry rfid tags UHF Rfid tag Rfid laundry tags for wash

management and long reading range.

2.Product Introduction of the Nylon Rfid laundry tag

Nylon Rfid laundry tag from YARONGTECH are the ideal choice for tracking

laundered items such as towels,garments and robes. Great for hospitals, nursing homes or

military uniform management and the hospitality and garment industries. The 360° read

profile means you can track the tags from any angle.

Flexible low-profile design offers versatile attachment methods. Sew these RFID tags

directly into the seams and hems of garments, blankets and other products; heat-seal

tags onto fabrics; or place them in small pouches, then stitch into a seam or hem.

The Nylon Rfid laundry tag can be dry cleaned or washed up to 200 times in hot, soapy

water. Resistant to high temperatures, tags can be ironed at 200°C with a press cloth for

up to 10 seconds, placed in a dryer for up to an hour at 185°C and/or sterilized in an

autoclave.

3.Details Spec

Model Name Weaving mark laundry tag

Model No. YRLT-001

Operating Frequency 860~960MHZ

IC Type Impinj M4QT

Memory

EPC 128 bit, User 512 bit, TID

96 bit

EPC Memory Content Unique, randomized number

Max Read Distance US Up to 7m

Applicable Surface Materials clothing

Tag Form Factor Abnormity tag

Tag Materials Nylon

Attachment Method Stitching

Dimensions 23.6*8.7*0.4in (60*22*1mm)

Operating Temperature (-20° to + 200°C)

4.Nylon Rfid laundry tag Physical

1. Material:Nylon

2. Size:60*22*1mm

4. Antenna:Copper

5. Packing:1000 pcs/carton or as customer’s request

6. G.W:1g/pcs

7. Protocol:ISO18000-6C & EPCglobal Class I Gen 2

5.Nylon Rfid laundry tag RF features

1. Frequency:860~ 960 Mhz

2. Chip:IMPINJ MOZAN4QT

3. Memory:EPC 128 bit, User 512 bit, TID 96 bit

4. Read distance:7meters under 8dBi antenna fixed reader,about 1 meter by handheld uhf reader

5. Write endurance:100,000 cycles

6. Data retention:50 years

6.Nylon Rfid laundry tag Other features

1. Security:TID, unqiue serial number, password protection

2. Anti-collision:Multiple tags operation allowed

Environment

1. Operating condition:-20 ~ 200 Degree Celsius, 5~ 95% RH, no condensation

2. Storage condition:-10 ~ 110 Degree Celsius, 5~ 95% RH, no condensation

3. ESD:+/ -2000V peak

7.Key Applications

Great for hospitals, nursing homes or military uniform management and the hospitality

and garment industries
