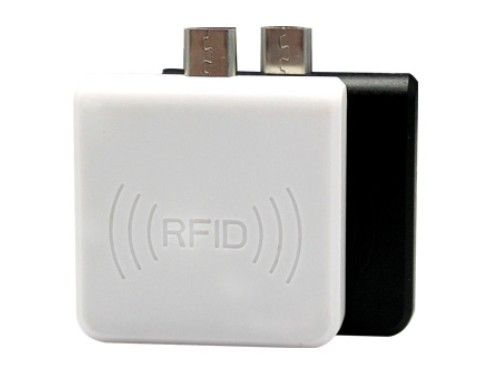

RFID LF 125KHz/13.56MHz EM4100/NFC Mini Reader for Smart Phone Type-C

SKU
SYCR65
Special Price US$13.44 Regular Price US$14.93
In stock
Overview

RFID LF 125KHz/13.56MHz EM4100/NFC Mini Reader for Smart Phone Type-C

Overview:

  • Operating frequency: 125KHZ / 13.56MHz
  • Support Card: Support EK4100 compatible / NFC chip card
  • Operating System: Android (testing brand: Samsung, Sony, VIVO , millet)
  • Product size (excluding Interface): 35MM × 35MM × 7MM
  • Box dimensions: 71mm × 71mm × 19mm
  • Reading distance: 0-30mm (front / back surface read); 0-10MM (read side)
  • Reader Time: < 100MS
  • Card Speed: 0.5S / times
  • Reader interval: 0.3S
  • Communication Interface: Type-C
    (Mini USB Interface could be provided upon requested )
  • Take power way: the USB to take power
  • Weight: 20G (NW) / 50G (including packaging)
  • Working Environment: temperature ( -20 deg.] C ~ 85 deg.] C) and humidity ( 5% -95% )
  • Operating voltage: 5V
  • Operating Current: 20mA
  • Status Indicator: two -color double the LED ( 1 Color - "blue" power indicator, a color - the "green" state indicator)
  • It requires Android smart phone with support of OTG function.

More Information
Product Name RFID LF 125KHz/13.56MHz EM4100/NFC Mini Reader for Smart Phone Type-C
Description

Overview:

  • Operating frequency: 125KHZ / 13.56MHz
  • Support Card: Support EK4100 compatible / NFC chip card
  • Operating System: Android (testing brand: Samsung, Sony, VIVO , millet)
  • Product size (excluding Interface): 35MM × 35MM × 7MM
  • Box dimensions: 71mm × 71mm × 19mm
  • Reading distance: 0-30mm (front / back surface read); 0-10MM (read side)
  • Reader Time: < 100MS
  • Card Speed: 0.5S / times
  • Reader interval: 0.3S
  • Communication Interface: Type-C
    (Mini USB Interface could be provided upon requested )
  • Take power way: the USB to take power
  • Weight: 20G (NW) / 50G (including packaging)
  • Working Environment: temperature ( -20 deg.] C ~ 85 deg.] C) and humidity ( 5% -95% )
  • Operating voltage: 5V
  • Operating Current: 20mA
  • Status Indicator: two -color double the LED ( 1 Color - "blue" power indicator, a color - the "green" state indicator)
  • It requires Android smart phone with support of OTG function.

SKU SYCR65
Weight 0.200000
selling_potential 3
With Built-in Battery No
Condition New
