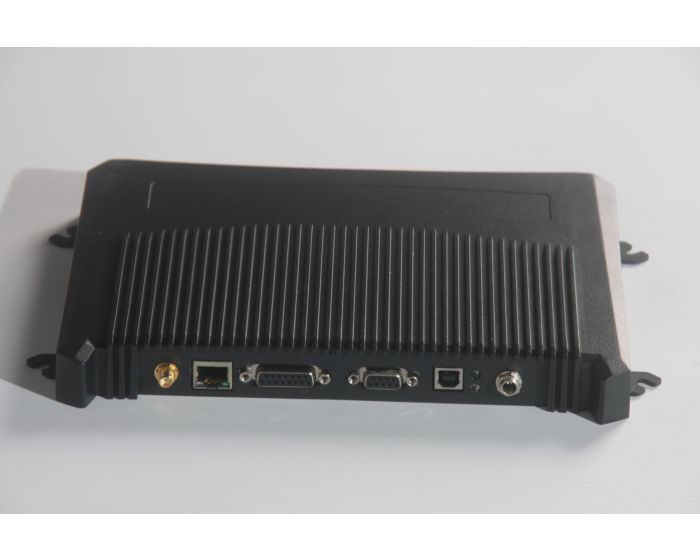

RFID UHF High Performance 4-Channel Fixed Reader Station

GENERAL DESCRIPTION

UHF High Performance Fixed Reader HY407 is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. RRU2882LITE can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

• Self-intellectual property;
• 840~960MHz frequency band (frequency customization optional);
• Based onImpinj E710 high performance RF engine, excellent multi-tag anti-collision operation, fully support EPC CLASS1 G2 \ ISO18000-6B protocol tags
• FHSS or Fix Frequency transmission, support RSSI,  Maximum inventory speed over 700pcs;
• RF output power up to 33dbm(adjustable);
• Support 4 TNCantenna port with antenna auto-tuning and failure-detection;
• Support answer and real-time-inventory work mode;
• Tag buffer: 1000pcs@96bitsEPC;
• Support EPC and TID anti-collision mode
• Low power dissipation with single +9 DC power supply, POE (Power over Ethernet) is optional;
• Support RS232, USB(Slave), RJ45 (TCP/IP)interface;
• Provide DLL and Demonstration Software Source code to facilitate further development;

High reliability design, meet the requirements of harsh working environment.
