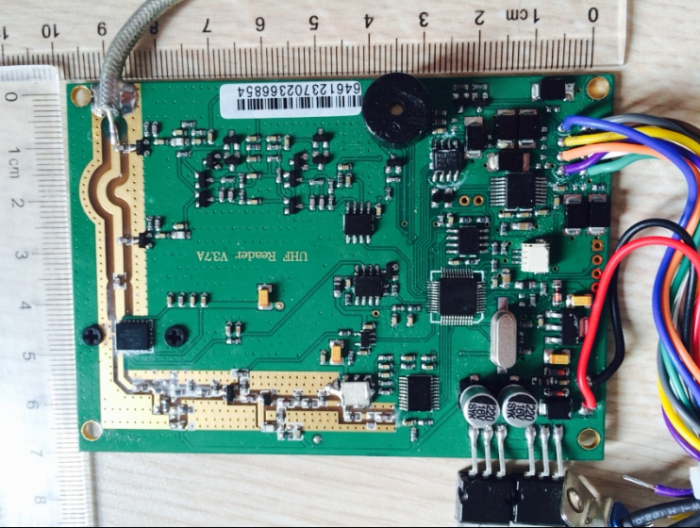

RFID UHF Reader Writer Module EPC 96-bit Anti-collision RS232 SDK C# VB Ext Antenna

SKU
HY107M
Special Price US$75.60 Regular Price US$84.00
In stock
Overview

RFID UHF Reader Writer Module EPC Anti-collision RS232 SDK C# VB Ext Antenna

External antenna is NOT included and need to purchase at extra cost.


Size:160mmx108mmx40mm

Net weight:200g

brief introduction

HY-107Is a high performanceUHFBandISO18000-6C(C1G2 EPC),ISO18000-6BMulti protocol tag reader, completely independent intellectual property rights in design, combined with a proprietary high performance electronic tag collision processing algorithm, while maintaining a high literacy rate, at the same time, the tags the fast read and write processing, can be widely used in logistics, personal identification, intelligent parking lot, access control systems, security system and production process control a variety of wireless radio frequency identification (RFIDSystem).

Standard products: HY-107  (WG26,R232 and a dedicated power supply)

characteristic

 Completely independent intellectual property rights design;

 Full supportEPC Gen2 UHF (ISO18000-6C),ISO18000-6BProtocol tag;

L Advanced anti-collision algorithm, high recognition rate;

L working frequencyFCC 902~928MHzorCE 865~868MHz (Can be adjusted according to different countries or regions)

L Broad spectrum frequency hopping(FHSS)Fixed frequency transmission mode;

L output power:maximum30dBm(adjustable);

L Low power design, single6VPower supply;

L Support response (Interactive) working mode and active mode;

L The output format and parameters can be configured in the active mode;

L support RS232 and Wiegand 26

L Provide dynamic link librariesDLLTwo development support. Development kits are C#, Java, and VB.

The effective distance is related to the protocol format, the electronic tag and the working environment.



\

DB9Pin description

\

Pin number

\

Symbol

\

explain

\

One

\

NC

\

retain

\

Two

\

TXD

\

RS232data output

\

Three

\

RXD

\

RS232data input

\

Four

\

NC

\

retain

\

Five

\

GND

\

land

\

Six

\

NC

\

retain

\

Seven

\

WD0

\

Web dataZero

\

Eight

\

WD1

\

Web dataOne

\

Nine

\

GND

\

land



Electrical characteristic

L Limit parameter

\

project

\

Symbol

\

numerical value

\

Company

\

supply voltage

\

VCC

\

Twelve

\

V

\

working temperature

\

TOPR

\

-10~+60

\

C

\

Storage temperature

\

TSTR

\

-25~+80

\

C

L Specifications

In addition to the special instructions, the specifications shown are taken fromTA=Twenty-fiveCandVCC=+6VUnder working conditions

\

project

\

Symbol

\

minimum

\

typical

\

maximum

\

Company

\

supply voltage

\

VCC

\

Five point five

\

Six

\

Twelve

\

V

\

Operating current

\

IC

\



\

One hundred and fifty

\

Two hundred

\

MA

\

working frequency

\

FREQ

\

Nine hundred and two

\



\

Nine hundred and twenty-eight

\

MHz

\

Effective distance*

\

DIS

\

Zero

\

Three hundred

\

Four hundred and fifty

\

Mm

*The effective distance is related to the protocol format, the electronic tag and the working environment.
