RFID UHF Desktop USB Reader & Writer

General Description:

JRD1902 is a high performance UHF RFID Reader & Writer. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

Features:

Self-intellectual property;
Support ISO18000-6C (EPC C1G2) protocol tag;
865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
FHSS or Fix Frequency transmission;
RF output power up to 17dBm (adjustable);
1dBi Linear PCB antenna with effect distance up to 0cm~20cm*;
Support active mode, answer mode;
Support USB2.0 interface with HID mode & USB Keyboard or VSP (Virtual Serial Port);

* Effective distance depends on antenna, tag and environment.

Product mode explanation:

Model	Interface
JRD1902	USB HID and USB Keyboard
JRD1902S	USB VSP(Virtual Serial Port)
-S USB Virtual Serial Port

Characteristics:

Absolute Maximum Rating

ITEM	SYMBOL	VALUE	UNIT
Power Supply	VCC	5	V
Operating Temp.	TOPR	-20～+60	℃
Storage Temp.	TSTR	-40～+85	℃

Electrical and Mechanical Specification

Under TA＝25℃，VCC＝+5V unless specified

ITEM	SYMBOL	MIN	TYPE	MAX	UNIT
Power Supply	VCC		5		V
Current Dissipation	IC		200	300	mA
Frequency	FREQ	865		928	MHz

Product Technical Parameters

Type
Model Number	JRD1902
Type	UHF Desktop USB Reader & Writer
Physical parameters

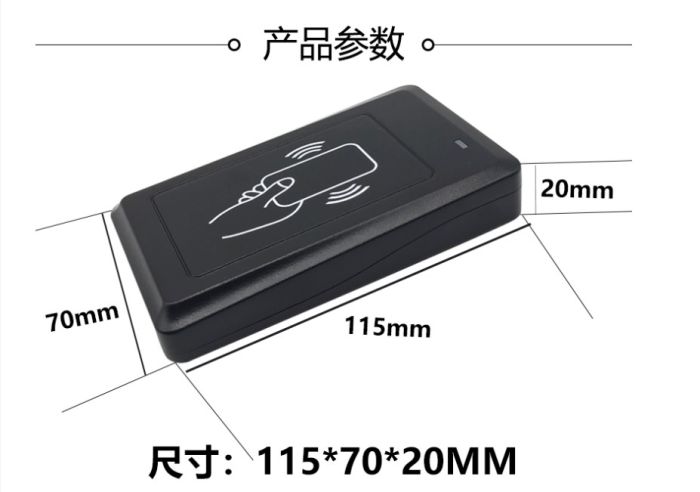

Dimensions	115x 70 x 20mm
Net Weight	50g
Gross Weight	0.3Kg
Package size	/
Shell material	black
Color	Gray White
Environmental parameters
Operation Temperature	-20~+60℃
Storage Temperature	-40~+85℃
Humidity	5%～95% RH, Non-condensing
Performance
Frequency	902~928MHz,860~868MHz(frequency customization optional)
Ant.	1 dBi Linear PCB antenna
RF Power	0 - 17dBm
Read Distance *	0-20cm * Effective distance depends on antenna, tag and environment.
Write Distance *	0-10cm * Effective distance depends on antenna, tag and environment.
Read Rate	200cnt / second
Read Type	ISO18000-6C（EPC Gen2）
Reading Prompt	Buzzer, LED
Working Voltage	USB, 200mA
Work Mode	Active mode, Answer mode
Communication	JRD1902: USB (USB HID & Keyboard) JRD1902S: USB VSP(Virtual Serial Port)
SDK
SDK	Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android.
