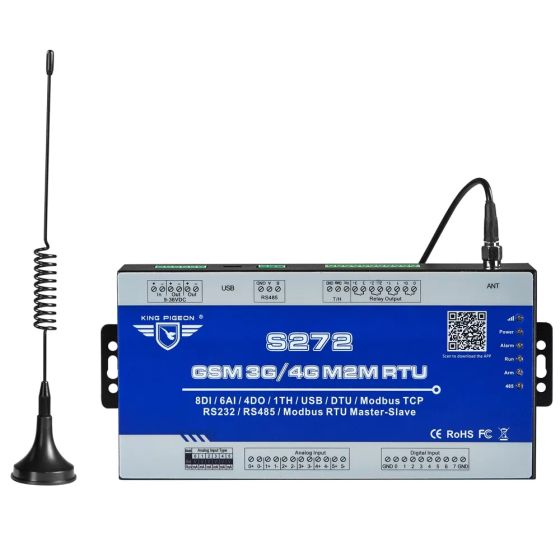

Industrial 4G Cellular Modbus RTU Master for PLC Smart Meters Remote Data Acquisition MQTT IOT Gateway
4G LTE Cellular Modbus RTU Supports AC Power failure/Recovery Alarm Data transparent transmission S272
Description
The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote
Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and RS485 serial port, supports124 mapping registers via Modbus RTU protocol. It can monitoring and operates the I/O ports by SMS, APP,Web Server, internet, timers and programmed inter-lock events automatically.
The Cellular IoT Modbus RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications,
it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications
according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.
The Cellular IoT Modbus RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a
remote switch, remote I/O, remote smart PLC, timer switches.
The Cellular IoT Modbus RTU can be used as remote access control for BTS monitoring, the authorized users can open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance to save the time of traditional authorized.
The Cellular IoT Modbus RTU supports transparent data transmission and performs as Modbus Slave over
GPRS/3G/4G network and RS485 serial port. Moreover, the Cellular IoT Modbus RTU can be used as Modbus RTU Master to reading smart meters, I/O modules, PLC, and converts to SMS alert once triggered the threshold value,or transmit data to remote server over GPRS/3G/4G network.
Packing List
M2M RTU*1
Power adaptor*1
Note:please leave me message you need Modbus protocol or MQTT,thanks
| SKU | RTUS272 |
|---|---|
| Weight | 1.000000 |
| Customizable | No |
| With Built-in Battery | Yes |
| Warranty | 1 Year Warranty |
| Country Specific | Unable to use in Some Countries |
| selling_potential | 3 |
| Minimum Order Quantity | No |
| Description | Description The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote Packing List M2M RTU*1 |
| Condition | New |
