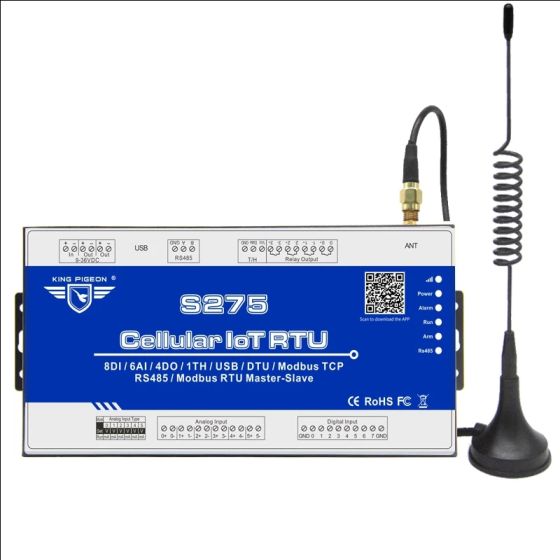

4G LTE Cellular IOT Gateway Alarm Device Industrial RS485 Serial Port GSM GPRS Modem Modbus RTU M2M for SCADA OPC Server S275

Details

The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal

Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides

8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor

input for monitoring onsite temperature and humidity, and RS485 serial port, supports 320 mapping registers via

Modbus RTU protocol. It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and

programmed inter-lock events automatically.

The Cellular IoT Modbus RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications,

itcan be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according

tothe TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too.

This is very useful ifyou need remote control onsite devices with low cost solution.

The Cellular IoT Modbus RTU is design for working in the harsh industrial application environment, widely used in a

variety of industrial automation, security monitoring system, automatically measurement and control system, BTS

monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote

switch, remote I/O, remote smart PLC, timer switches.

The Cellular IoT Modbus RTU can be used as remote access control for BTS monitoring, the authorized users can

open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance to

save the time of traditional authorized.

The Cellular IoT Modbus RTU supports transparent data transmission and performs as Modbus Slave over

GPRS/3G/4G network and RS485 serial port. Moreover, the Cellular IoT Modbus RTU can be used as Modbus

RTU Master to reading smart meters, I/O modules, PLC, and converts to SMS alert once triggered the threshold value,

or transmit data to remote server over GPRS/3G/4G network.

1. Can be operated from anywhere, no distance limitation;

2. Quad band 850/900/1800/1900Mhz GSM GPRS Module inside.

3. 3G/4G Modules are optional;

4. Modular design,can easily upgrade the cellular module if network upgrade;

5. Embedded ARM Cortex-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-builtwatchdog;

6. Wide range power supply 9~36VDC with over voltage and phase-reversal protection;

7. 8 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter;

8. 6 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5V, can change to PT100 Resistance TemperatureDetectors;

9. 4 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs;

10.1 ambient sensor input for monitoring onsite temperature and humidity;

11. Inbuilt inter-lock logic programmer and powerful timer program function;

12. Resend the data while communication failure and alert to users by SMS;

13. Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications.

14. Supports Modbus TCP protocol, can integrate to SCADA,HMI,DSC directly.

15. 1 RS485 port, supports Modbus RTU Master and Slave, Max. 320 mapping registers can be used to extend I/Oports or meters;

16. Supports SMS Alert when I/O triggered or recovery, and external power lost or recovery;

17. Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;

18. Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message.

19.10 authorized numbers can switch on/off device with a free charge call at the specified time;

20. Inbuilt 4G SD card to save up to 100000 historical data and events;

21. Inbuilt large capacity automatically rechargeable backup battery;

22. Industrial class design suitable for long time work applications;

23. using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial

applications in the field;

24. L175 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation

4G RTU S275*1

Power adaptor*1

Antenna*1

Note:This is 4G version,if you want 2G or 3G version,please contact us.

Please tell us which 4G Module do you want from followint table:

More Information

More Information
SKU	RTUS275
Weight	1.000000
Customizable	No
With Built-in Battery	Yes
Warranty	1 Year Warranty
Country Specific	Unable to use in Some Countries
selling_potential	3
Minimum Order Quantity	No
Description	The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and RS485 serial port, supports 320 mapping registers via Modbus RTU protocol. It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically. The Cellular IoT Modbus RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, itcan be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according tothe TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful ifyou need remote control onsite devices with low cost solution. The Cellular IoT Modbus RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches. The Cellular IoT Modbus RTU can be used as remote access control for BTS monitoring, the authorized users can open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance to save the time of traditional authorized. The Cellular IoT Modbus RTU supports transparent data transmission and performs as Modbus Slave over GPRS/3G/4G network and RS485 serial port. Moreover, the Cellular IoT Modbus RTU can be used as Modbus RTU Master to reading smart meters, I/O modules, PLC, and converts to SMS alert once triggered the threshold value, or transmit data to remote server over GPRS/3G/4G network. 1. Can be operated from anywhere, no distance limitation; 2. Quad band 850/900/1800/1900Mhz GSM GPRS Module inside. 3. 3G/4G Modules are optional; 4. Modular design,can easily upgrade the cellular module if network upgrade; 5. Embedded ARM Cortex-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-builtwatchdog; 6. Wide range power supply 9~36VDC with over voltage and phase-reversal protection; 7. 8 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter; 8. 6 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5V, can change to PT100 Resistance TemperatureDetectors; 9. 4 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs; 10.1 ambient sensor input for monitoring onsite temperature and humidity; 11. Inbuilt inter-lock logic programmer and powerful timer program function; 12. Resend the data while communication failure and alert to users by SMS; 13. Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications. 14. Supports Modbus TCP protocol, can integrate to SCADA,HMI,DSC directly. 15. 1 RS485 port, supports Modbus RTU Master and Slave, Max. 320 mapping registers can be used to extend I/Oports or meters; 16. Supports SMS Alert when I/O triggered or recovery, and external power lost or recovery; 17. Provides 1 channel 9~36VDC power source output for external device, saving wiring cost; 18. Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message. 19.10 authorized numbers can switch on/off device with a free charge call at the specified time; 20. Inbuilt 4G SD card to save up to 100000 historical data and events; 21. Inbuilt large capacity automatically rechargeable backup battery; 22. Industrial class design suitable for long time work applications; 23. using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field; 24. L175 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation 4G RTU S2751 Power adaptor1 Antenna1 Note:This is 4G version,if you want 2G or 3G version,please contact us.* Please tell us which 4G Module do you want from followint table:
Condition	New
