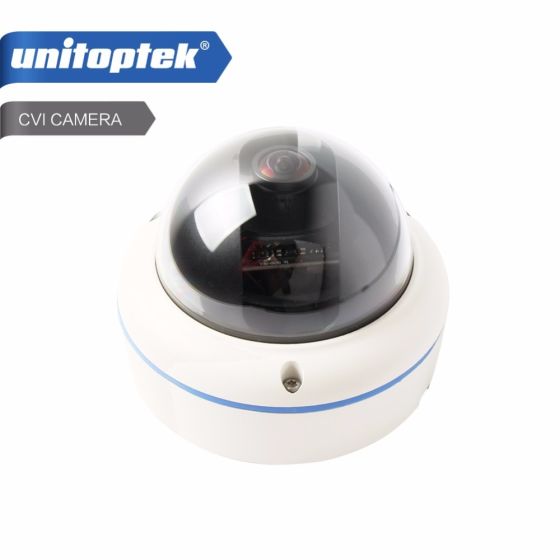

Security 2MP HDCVI Camera 1080P Fisheye Dome Outdoor CCTV HD CVI Camera Panaramic 360 Degree
Security 2MP HDCVI Camera 1080P Fisheye Dome Outdoor CCTV HD CVI Camera Panaramic 360 Degree 0.01 Lux For CVI DVR...
Security 2MP DCVI Camera 1080P Fisheye Dome Outdoor CCTV HD CVI Camera Panaramic 360 Degree 0.01 Lux For CVI DVR
Buyer Attention:
--This HD-CVI Camera CANNOT work with the following DVR SYSTEM (960H DVR, HD-AHD, HD-TVI DVR). ONLY Working with HD-CVI DVR.
What is HDCVI ?
HDCVI ( High Definition Composite Video Interface ) is an over-coaxial-cable analog HD video trasmission standard which developed in-house. The technology renders two HD video formats 1080P ( 1920 x 1080 )by progressive scanning
Technical Highlights
1.HD Video Format
2.Analog Modulations
3.Transmission over Coaxial Cable
4.Auto Compensation and Long range transmission
5.Composite Video, audio , PTZ Data Signals
6.Two-way data Transmission
Benefits of HDCVI
1.Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a full consideration to users’ operation habit.
2.Megapixel & uncompressed image quality 1920H (1920 x 1080)
3.Long range & non-latency reliable video transmission without additions of relay devices.
4.Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without problems as frame drop and lock loss occurred.
5.An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standa
FEATURES:
1.2.0 Mega Pixel Sensor
2.HD 1080P Video Output 2.0MP 1920x1080
3.Adopt HDCVI Technology
4.0.01 Lux
5.1.7mm Lens Fisheye 360 degree
6.DC 12V
7.Outdoor use
8.Dome hdcvi camera
|
Spec Sheet |
|
|
Model ( MPN ) |
CVI-PC29011080D |
|
Lens |
1.7mm Lens Fisheye 360 degree |
|
Operating Temperature |
-10 ~ +50,RH95% Max |
|
System Control |
PAL/NTSC |
|
Effective Pixels |
1920(H)x1080(V), @30 FPS |
|
Scanning Area |
Progressive Scan |
|
IR LED |
Not Night Vision |
|
Sync. System |
Internal |
|
Video Output |
HD CVI ( BNC ) |
|
Min. Illumination |
0.01Lux |
|
Resolutions |
1920*1080 |
|
Electronic Shutter Speed |
1/30s`1/60,000s |
|
White Balance |
Auto |
|
Gain Control |
Auto |
|
Day & Night |
None |
|
S/N Ratio |
>50dB |
|
Power |
DC12V±10%, 700mA |
|
Storage Temperature / Humidity |
-20~ +60 RH95% Max |
|
Housing Material |
Metal |
|
Model Size(diameter*high) |
100*80mm |
|
weight |
0.30kg |
Packing List:
1x 1080P Fisheye HDCVI Camera
1xScrew Bag

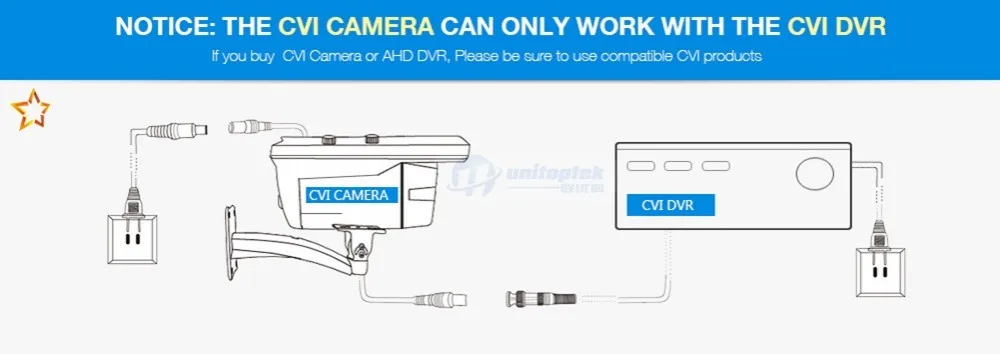

NOTICE: This camera needs to access HD-CVI DVR. Cannot work with normal DVRs.
Our Camera Does NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !
| Description | Security 2MP DCVI Camera 1080P Fisheye Dome Outdoor CCTV HD CVI Camera Panaramic 360 Degree 0.01 Lux For CVI DVR
1080P FISHEYE HDCVI=2.0MP FISHEYE HDCVI CAMERA DOME=CVI-PC29011080D
Buyer Attention:--This HD-CVI Camera CANNOT work with the following DVR SYSTEM (960H DVR, HD-AHD, HD-TVI DVR). ONLY Working with HD-CVI DVR. What is HDCVI ?HDCVI ( High Definition Composite Video Interface ) is an over-coaxial-cable analog HD video trasmission standard which developed in-house. The technology renders two HD video formats 1080P ( 1920 x 1080 )by progressive scanning Technical Highlights1.HD Video Format 2.Analog Modulations 3.Transmission over Coaxial Cable 4.Auto Compensation and Long range transmission 5.Composite Video, audio , PTZ Data Signals 6.Two-way data Transmission Benefits of HDCVI1.Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a full consideration to users’ operation habit. 2.Megapixel & uncompressed image quality 1920H (1920 x 1080) 3.Long range & non-latency reliable video transmission without additions of relay devices. 4.Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without problems as frame drop and lock loss occurred. 5.An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standa FEATURES: 1.2.0 Mega Pixel Sensor 2.HD 1080P Video Output 2.0MP 1920x1080 3.Adopt HDCVI Technology 4.0.01 Lux 5.1.7mm Lens Fisheye 360 degree 6.DC 12V 7.Outdoor use 8.Dome hdcvi camera
Packing List: 1x 1080P Fisheye HDCVI Camera 1xScrew Bag NOTICE: This camera needs to access HD-CVI DVR. Cannot work with normal DVRs.
NOTICE: Our Camera Does NOT Included The Power Adapter, If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks ! |
||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | 32491471630 | ||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1.000000 | ||||||||||||||||||||||||||||||||||||||||||||
| selling_potential | 3 | ||||||||||||||||||||||||||||||||||||||||||||
| With Built-in Battery | No | ||||||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||||||
