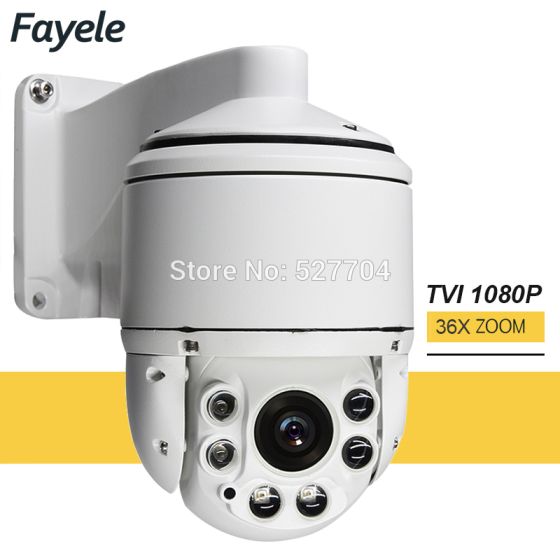

Security Outdoor High Speed Dome TVI 1080P PTZ Camera 2MP 36X Zoom Day Night IR 100M RS485 PTZ

SKU

32860768334

Special Price US$199.94 Regular Price US$222.16

Out of stock

Overview

Security Outdoor High Speed Dome TVI 1080P PTZ Camera 2MP 36X Zoom Day Night IR 100M RS485 PTZ Control Pelco-d IP66 Waterproof...

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Product Description:

RS485 PTZ Control for TVI Signal. Camera is 4in1(TVI CVI AHD CVBS), default signal is TVI if you use it as AHD with AHD 1080P DVR it\'s with coaxial PTZ control. for other signal it\'s RS485 PTZ control.

4pcs High quality array LEDs and 2pcs laser leds auto-switch to long/middle/close distance focus(Light up different numbers of LEDs), 100M IR distance.

Super good night vision for IR 100M
High performance constant-current design, leds light time up to 50,000 hours.
Infrared light and magnification range matching algorithm based on infrared light adjustment, the brightness ratio, distance and angle for
the image to achieve the desired state of image.
3 modes(Auto/On/Off) status for LEDs setting for different requirements in different environment.
All-metal die-cast aluminum design for any weather, weatherproof, durable to use in different kind or weather/climate, IP66 grade waterproof.
High precision motor, precise control, smooth motion, stable rotation.

4" MINI SIZE TVI 1080P High Speed Dome PTZ Camera 36X ZOOM

HTB1sOCZb67nBKNjSZLeq6zxCFXaV

406-AHD-_03 406-AHD-_02

AHD 36X

Parameters:

Model: HDR-406G-120T

Camera

Image Sensor: 1/3" CMOS

Resolution: TVI 1920*1080

Video Format: PAL/NTSC

Minimum Illumination: Color: 0.1Lux B/W: 0.01Lux

Video Out: TVI (1Vp-p 75ohm)

S/N Ratio: ≥50DB

White Balance: Auto

Day&Night mode: Built-in IR-CUT Auto/Day/Night optional

Lens

Focus Length: 4.7 to 94mm(F1.6 to F2.7)

ZOOM: 36X ZOOM

Function

IR control: Variable with focus length

IR Distance: 100M

Rotate Range Horizontal: 0°~360° Vertical:-15°~90°

Rotate Speed Horizontal: 0.1°~240°/s; Vertical 0.1°~180°/s

Preset: 255

Patrol Track: 4 path, each path can add 10 presets

Automatic scan: 1 path

360°track: 1 path

Watch: Preset / Patrol Track / zone track / horizontal track

Video: In/Out

Video Out: 1.0Vpp/75Ω,NTSC/PAL,BNC Port

Pan/Tilt Control 2 method control: RS485

Other

Power: DC12V

Consumption: 25W MAX

Working Environment: Temprture-40~60 degrees; Humidity<90%

Protection grade: IP66 waterproof, 4000V Lightning protection, against-surge

Material: Metal casting aluminum

Package Include:

1 x TVI 1080P High Speed PTZ Camera
1 x Power Supply
1 x Screw bag

406-AHD-_07 4in1-_08 factory show
