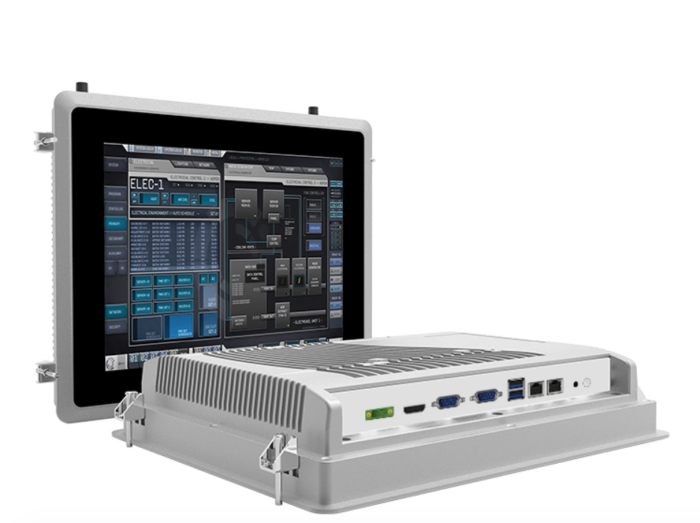

Embedded or Wall Mount Aluminum Case IP65 Waterproof LCD Monitor Fanless 12" Industrial Tablet PC

Product Description
Embedded or wall mount aluminum case ip65 waterproof lcd monitor fanless 12" industrial tablet pc
Product Parameters
Senke Industrial PC
SK-K10DR
SK-K12DR
SK-K15DR
SK-K17DR
SK-K19DR
Motherboard
Confirguration
Intel®4th generation Pentium 3558U
, DDR3-4G,SSD-64G
Interface
WiFi,3/4G module
802.11b/g/n
(optional),Support 3g/4g (optional)
HDMI
1*HDMI output
USB
4*USB 3.0
Network
2*RJ45 with 100 Base-T
Com
com(RS485)*2
Power supply
1*DC lock phoenix terminal
,Support 9-36V
Audio output
1*3.5mm audio
Other
8*GPIO (optional)
Display
Screen type
10.4 LED
12.1 LED
15 LED
17 LED
19 LED
Resolution
1024*768
1024*768
1024*768
1280*1024
1280*1024
Size(mm)
210.4(W)×157.8(H)
245.7(w)×184.3(H)
304.1
(W)×228.1(H)
376.3(W)×301.1(H)
376.3(W)×301.1(H)
Contrast ratio
500:1
500:1
700:1
900:1
900:1
Brightness
200cdm2
200cdm2
250cdm2
250cdm2
250cdm2
Screen ratio
4:3
4:3
4:3
5:04
5:4
Structure
Front and back cover
Aluminum
Craft
Glass frame paste, aluminum die casting
Color
Black,grey
Heat dissipasion
Fanless aluminum fin heat dissipation
Panel indicator light
Power state, hard disk state
Whole size
281*228*56.8mm
315*254*56.8mm
304*2941*55.3mm
404*341*56.3mm
445*3756*59.3mm
Touch screen
Type
Projected capacitive touch screen
Touch point
10 point touch
Physical Resolution
4096x4096
Response time
<
5ms
Accuracy
<
2.5mm
Transparency
≥90%
Protection
The surface is coated with 1:1 PVC protective film
Others
Working environment
­20
ºC~ 70ºC;Humidity:10%~ 90%
Storage environment
Temperature
:-40ºC~80ºC
; Humidity:10%~90%
Installation ways
Embedded
,VESA100*100mm
Power consumption
24W
25W
33W
34W
37W
Accessories
Manual
User Manual,certificate of qualification,warranty card
Bracket
wall mounted bracket,embedded bracket,desktop bracket(optional)
Adapter
Power adapter
Model NO. : SK-K12DR
Screen Type : 10.4",12.1",15",17",19",LED Screen
Contrast Ratio : 700:1
Brightness : 250cdm2
Screen Ratio : 4:3
Touch Point : 10 Point Touch
Response Time : Less Than 5ms
Heat Dissipasion : Fanless Aluminum Fin Heat Dissipation
Transport Package : Foam Carton or Custom Wooden Case
Trademark : Senke
Origin : Guangzhou, China
HS Code : 8521909090
Production Capacity : 10000
Senke Industrial PC : SK-K10DR
Motherboard : Confirguration
Interface : WiFi,3/4G module
HDMI : 1*HDMI output
USB  : 4*USB 3.0
Network : 2*RJ45 with 100 Base-T
Com : com(RS485)*2
Power supply : 1*DC lock phoenix terminal,Support 9-36V
Audio output : 1*3.5mm audio
Other : 8*GPIO (optional)
Display : Screen type
Resolution : 1024*768
Size(mm) : 210.4(W)×157.8(H)
Contrast ratio : 500:1
Brightness : 200cdm2
Screen ratio : 4:3
Structure : Front and back cover
Craft : Glass frame paste, aluminum die casting
Color : Black,grey
Heat dissipasion : Fanless aluminum fin heat dissipation
Panel indicator light : Power state, hard disk state
Whole size : 281*228*56.8mm
Touch screen : Type
Touch point : 10 point touch
Physical Resolution  : 4096x4096
Response time : <5ms
Accuracy : <2.5mm
Transparency : ≥90%
Protection : The surface is coated with 1:1 PVC protective film
Others : Working environment
Storage environment : Temperature:-40ºC~80ºC ; Humidity:10%~90%
Installation ways : Embedded,VESA100*100mm
Power consumption : 24W
Accessories : Manual
Bracket : wall mounted bracket,embedded bracket,desktop bracket(optional)
Adapter : Power adapter
