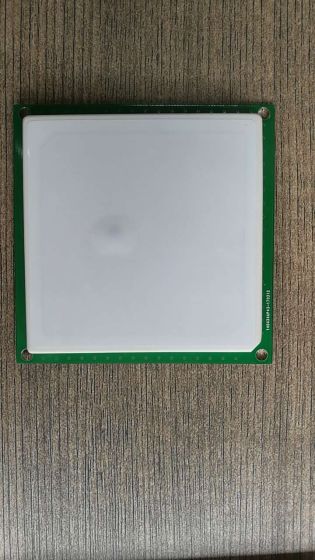

SMA connector 7x7cm passive 900mhz epc gen2 uhf reader antenna middle 3dbi micros Ceramics uhf rfid tag Antenna

SKU

ZKANTC7070

Special Price US$16.80 Regular Price US$18.67

In stock

Overview

sma connector 7x7cm passive 900mhz epc gen2 uhf reader antenna middle 3dbi micros Ceramics uhf rfid tag Antenna

Features:

length for Antenna feeder line:3m,read distance:2m,used for electronic racks,product real-time location monitoring and tracking,etc.UHF RFID.
Dimension of antenna: 61 x 61 x 6mm
Dimension of PCB Board: 70 x 70mm
Connector: SMA (with options)
Gain:4.9dBi
Frequency range:902-928MHz with middle at 922.5 MHz (can be customized as required.)
Polarization: Linear polarized RHCP
Voltage Standing wave ratio(VSWR): <1.5
Thunder and lightning prevention: direct grounding.
Cable RG174
Input impedance: 50Ω

More Information
Product Name	SMA connector 7x7cm passive 900mhz epc gen2 uhf reader antenna middle 3dbi micros Ceramics uhf rfid tag Antenna
Description	Features: length for Antenna feeder line:3m,read distance:2m,used for electronic racks,product real-time location monitoring and tracking,etc.UHF RFID. Dimension of antenna: 61 x 61 x 6mm Dimension of PCB Board: 70 x 70mm Connector: SMA (with options) Gain:4.9dBi Frequency range:902-928MHz with middle at 922.5 MHz (can be customized as required.) Polarization: Linear polarized RHCP Voltage Standing wave ratio(VSWR): <1.5 Thunder and lightning prevention: direct grounding. Cable RG174 Input impedance: 50Ω
SKU	ZKANTC7070
Weight	0.500000
With Built-in Battery	No
