Solar Lights Motion Sensor Wall Light Adjustable Angle IP65 Waterproof Outdoor Garden Street Lamp Ni

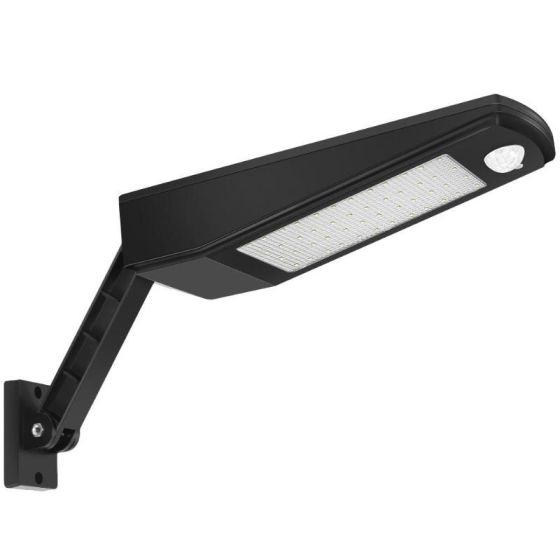

48LED Solar Motion Sensor Wall Light Adjustable Angle IP65 Waterproof Outdoor Garden Street Night Security Lamp

Lighting modes:
1. Weak light+ sensing mode: when someone comes, the sensor trigger circuit activates strong light and the light dims after 15 seconds of leaving.
2. Sensing mode: when someone comes, the sensor trigger circuit activates strong light: after someone leaves for 15 seconds, it will light off from the back.



Specification:
Product Name: adjustable solar motion sensor light
Product model number: 1619B
Solar panel: 5V 3.2W
Battery: 32650 Lithium iron phosphate battery, 3.2V 4500mAh
Maximum voltage: 3.65V
Minimum voltage: 2.65V
Working current: 30-1800mA
Maximum power: 6.8W
LED: SMD2835 29-30lm 4000K
Number of LEDs: 48
Maximum lumen value: 900lm
Charging time: 8 hours or more in the sun
Sensing angle: 120 degrees
Sensing distance: 5-8 meters
Waterproof rating: IP65
Housing material: PC+ABS alloy, black
Shade material: PC
Lighting time: more than 400 times evert time it lights on for 15 seconds (at full power). If the sensing delay time is not over and it senses again, the timing will start again.
Product size: 245 x 100 x 50mm/9.65 x 3.94 x 1.97"
Packing size: 290 x 125 x 50mm/11.4 x 4.92 x 1.97"
Net weight: 459g
Gross weight: 520g

Installation steps:
Please charge the product for 6 hours before using it.
1. Press and hold the button for 5 seconds to start the circuit, then select the desired lighting mode;
2. Fix the bracket with two screws and lock the product with screws;

Instructions:
First completely cover the solar panel or place it on the desktop the solar panel facing down, then press and hold for 5 seconds to start the luminaire. After startup, it enters the first working mode. Each time you press the button, you can change the working mode and the light flashes. The working mode is cyclically switched as follows:
1. Weak light + sensing mode
When someone comes over, the sensor triggers circuit and activates glare light; the light dims after 15 seconds of leaving.
(Recommended)
2. Sensing mode
When someone comes over, the sensor triggers circuit and activates glare light; the light goes out after 15 seconds of leaving.
(Used where the lighting time is short)
3. Normally on mode
It lights up after dark and has no sensing function.
(used in special places)
4. Emergency mode
Often used for emergency lighting, such as power outages, night activities. Emergency light mode is timed for 30 minutes.
After restarting or illuminating the solar panel, you can restart it.
5. Shutdown

Notes:
1. Please note: the time that the sunlight shines on the solar panel is closely related to and affected by the local weather conditions, installation location, and the installation direction, which can directly affect the charging effect.
2. The lithium iron phosphate battery can be used for more than five years, therefore, the battery does not need to be replaced during use. Do not put the product into a fire when handling the product to prevent the danger of explosion.
3. The lampshade is made of plastic material, and throwing or dropping will cause the lampshade to break.


1 x Solar Lamp
1 x Pack of Installing Fittings
1 x User Manual
