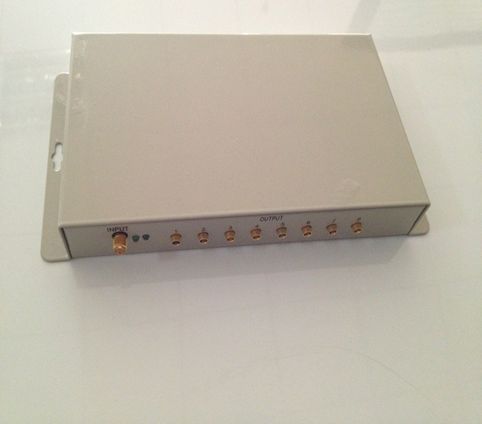

RFID UHF 860-960MHz Intelligent Master Multiplexer Splitter 8 Channel Antenna

SKU
HY909M
Special Price US$292.58 Regular Price US$325.09
In stock
Overview

UHF Intelligent Master Multiplexer ZK-RFID909-M

  • Work frequency:902~928MHz customized
  • Simple physical wire connection,no extra power cable needed for slave,only RF co-axial cable to realise power supply,communication with master.
  • Automatically search and check the connection status for slaves and antennae with power on,also support dynamic update on the current connection situation.support antenna scanning for its network topology and plug-and-play.
  • 8MCX output port,each port support 4 level slave cascading,also directly be connected with antenna.Maximum 8 antennae can be connected into each slave,then one output port can connect up to 32 antennae.
  • Total 256 antennae supported,antenna switching speed less than 100ms.
  • Line length between the RF input side and the antenna side up to 10m or above.
  • Low power dissipation design with single +9VDC supply.Low insertion loss.
  • Support RS232,TCPIP network interfaces,etc.   200*105*28MM
More Information
SKU HY909M
Weight 1.000000
Customizable No
With Built-in Battery No
Warranty N/A
Country Specific Universal
selling_potential 3
Minimum Order Quantity No
Description
  • Work frequency:902~928MHz customized
  • Simple physical wire connection,no extra power cable needed for slave,only RF co-axial cable to realise power supply,communication with master.
  • Automatically search and check the connection status for slaves and antennae with power on,also support dynamic update on the current connection situation.support antenna scanning for its network topology and plug-and-play.
  • 8MCX output port,each port support 4 level slave cascading,also directly be connected with antenna.Maximum 8 antennae can be connected into each slave,then one output port can connect up to 32 antennae.
  • Total 256 antennae supported,antenna switching speed less than 100ms.
  • Line length between the RF input side and the antenna side up to 10m or above.
  • Low power dissipation design with single +9VDC supply.Low insertion loss.
  • Support RS232,TCPIP network interfaces,etc.   200*105*28MM
Condition New
