RFID UHF 860-960 MHz Intelligent Slave Multiplexer Splitter for 8 Antenna

SKU

ZK-RFID909-S

Special Price US$123.79 Regular Price US$137.54

In stock

Overview

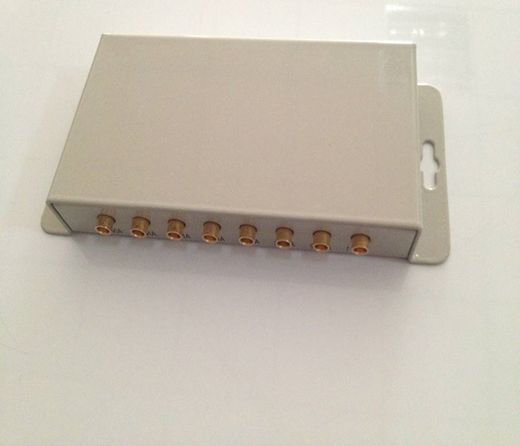

UHF Intelligent Slave Multiplexer

Work frequency:902～928MHz(can be customized as per countries and regions.)
Simple physical wire connection,no extra power cable needed for slave,only RF co-axial cable to realise power supply,communication with master.
Automatically search and check the connection status for slaves and antennae with power on,also support dynamic update on the current connection situation.support antenna scanning for its network topology and plug-and-play.
8MCX output port,each port support 4 level slave cascading,also directly be connected with antenna.Maximum 8 antennae can be connected into each slave,then one output port can connect up to 32 antennae.
Total 256 antennae supported,antenna switching speed less than 100ms.
Line length between the RF input side and the antenna side up to 10m or above.
Low power dissipation design with single +9VDC supply.Low insertion loss.
Support RS232,TCPIP network interfaces,etc. 125*59*17MM

More Information
SKU	ZK-RFID909-S
Weight	1.000000
Customizable	No
With Built-in Battery	No
Warranty	N/A
Country Specific	Universal
selling_potential	3
Minimum Order Quantity	No
Description	Work frequency:902～928MHz(can be customized as per countries and regions.) Simple physical wire connection,no extra power cable needed for slave,only RF co-axial cable to realise power supply,communication with master. Automatically search and check the connection status for slaves and antennae with power on,also support dynamic update on the current connection situation.support antenna scanning for its network topology and plug-and-play. 8MCX output port,each port support 4 level slave cascading,also directly be connected with antenna.Maximum 8 antennae can be connected into each slave,then one output port can connect up to 32 antennae. Total 256 antennae supported,antenna switching speed less than 100ms. Line length between the RF input side and the antenna side up to 10m or above. Low power dissipation design with single +9VDC supply.Low insertion loss. Support RS232,TCPIP network interfaces,etc. 1255917MM
Condition	New
